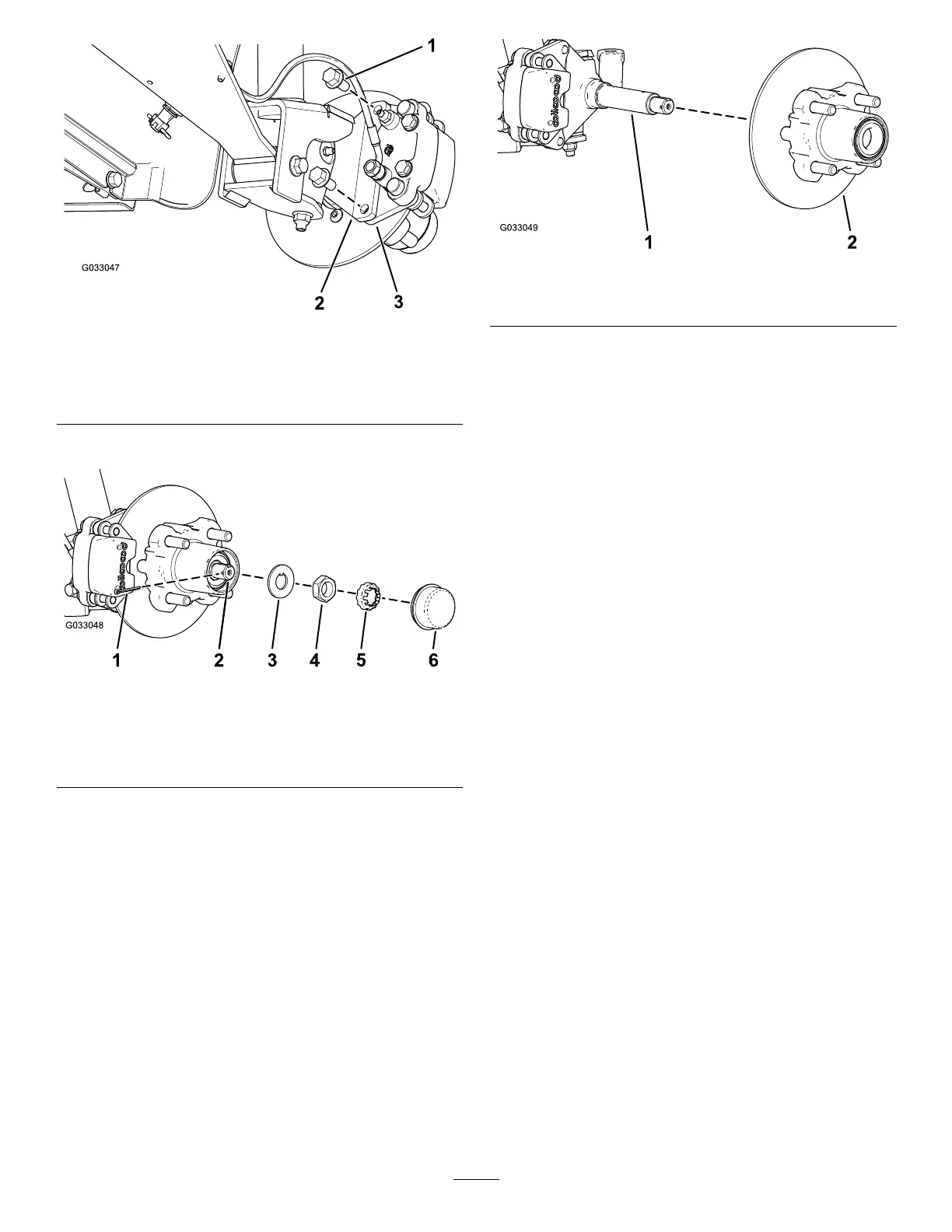

Figure 23
1. Flange-head bolts (3/8 x
3/4 inch)
3. Caliper bracket (brake
assembly)
2. Spindle
4. Remove the dust cap from the hub ( Figure 24 ).
g033048
Figure 24
1. Cotter pin 4. Spindle nut
2. Spindle
5. Nut retainer
3. T ab washer 6. Dust cap
5. Remove the cotter pin and nut retainer from the
spindle and spindle nut ( Figure 24 ).
6. Remove the spindle nut from the spindle, and
separate the hub and rotor assembly from the
spindle ( Figure 24 and Figure 25 ).
g033049
Figure 25
1. Spindle
2. Hub and rotor assembly
7. Wipe clean the spindle with a rag.
8. Repeat steps 1 through 7 to the hub and rotor at
the other side of the machine.
