Toro Workman - Brake Pad and Fluid Replacement

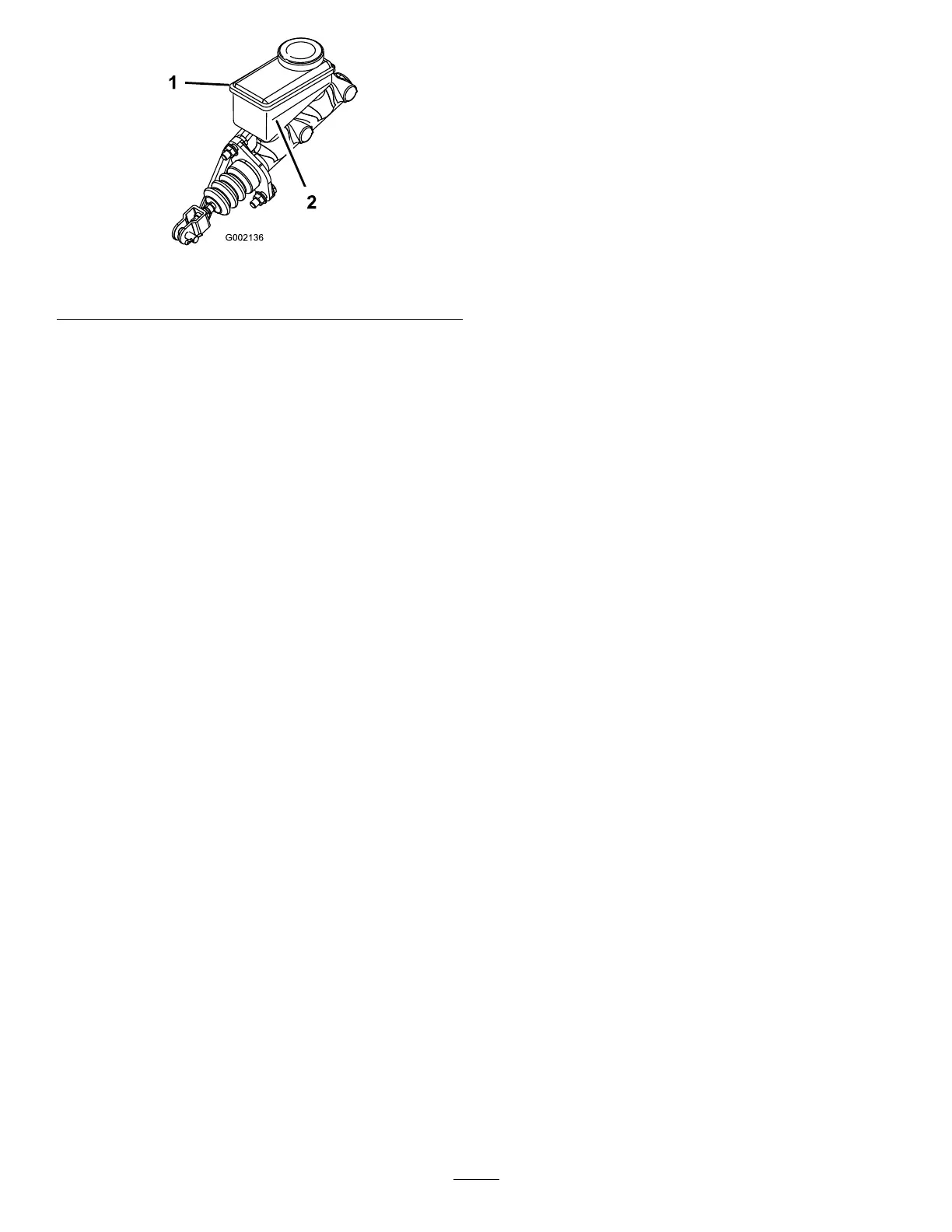

g002136
Figure67
1.Brake-uidreservoir
2.Minimumline
6.Iftheuidlevelislow,performthefollowing:
A.Cleantheareaaroundthereservoircap
andremovethecap(Figure66).
B.AddDOT3brakeuidtothereservoiruntil
theuidlevelisabovetheMinimumline
(Figure67).
Note:Donotoverllthereservoirwith
brakeuid.
C.Installthereservoircap(Figure66).
7.Closethehoodofthemachine.
InspectingtheBrakes
ServiceInterval:Every100hours
Important:Brakesareacriticalsafetycomponent
ofthemachine.Closelyinspectthematthe
recommendedserviceintervaltoensureoptimum
performanceandsafety.
•Inspectthebrakeliningforwearordamage.Ifthe
lining(brakepad)thicknessislessthan1.6mm
(1/16inch),replacethebrakelining.
•Inspectthebackingplateandothercomponents
forsignsofexcessivewearordeformation.
Replaceanydeformedcomponents.
•Checkthebrake-uidlevel;refertoCheckingthe
Brake-FluidLevel(page51).
ReplacingtheServiceand
Parking-BrakePads
ServiceInterval:Every400hours
ContactyourAuthorizedServiceDealertoinspectand
possiblyreplacetheserviceandparking-brakepads.
ChangingtheBrakeFluid
ServiceInterval:Every1,000hours
ContactyourauthorizedTorodistributor.
