INSTALLATION PROCEDURE FOR OPTIONAL EQUIPMENT EO15-33005
2. Wireless LAN Board: B-EP700-WLAN-QM-R
2- 2

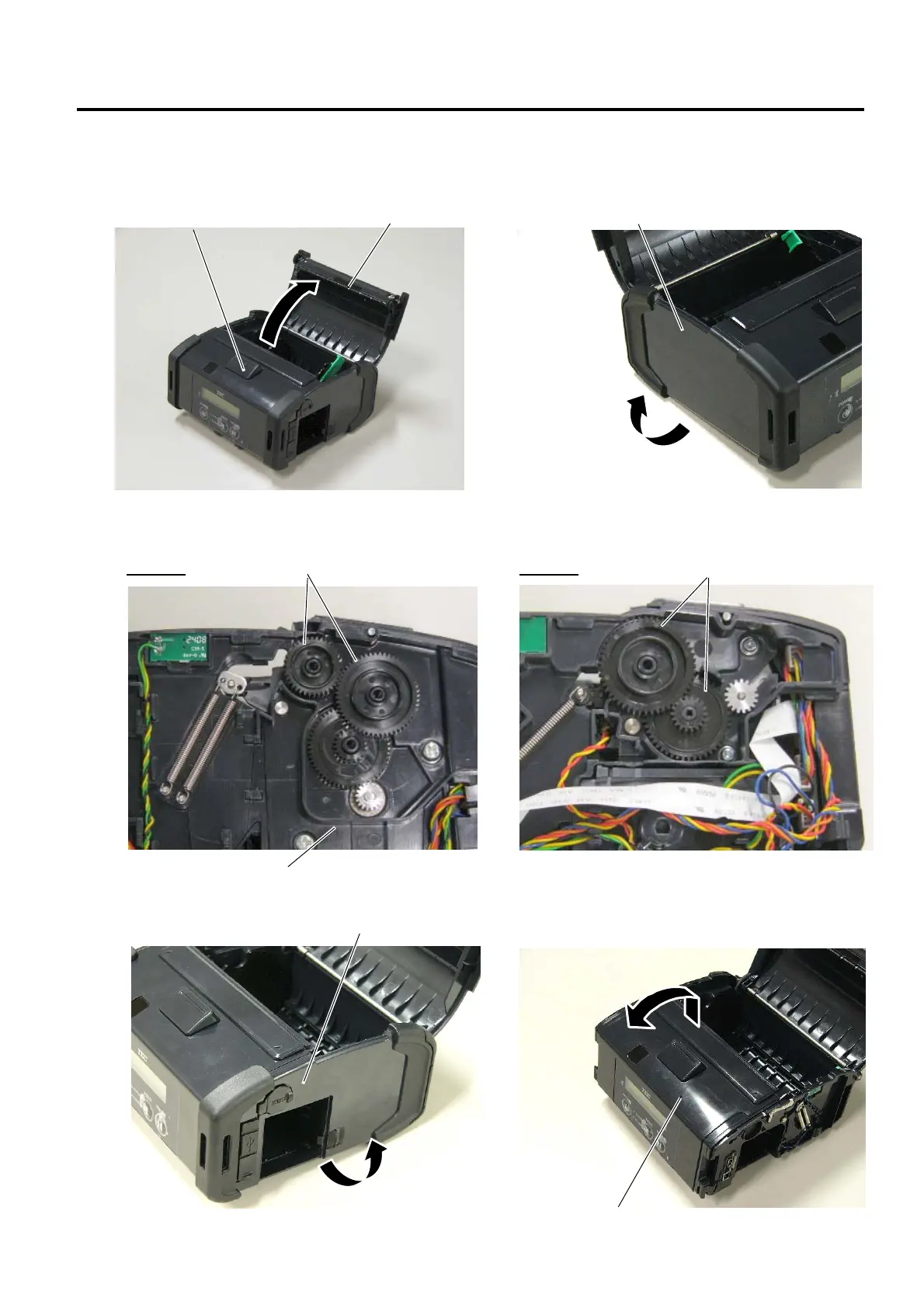

4. Press the top cover open button to open the top cover.
5. Remove the left side cover in the direction of the arrow.
NOTE: The gears shown in the picture below is not secured and is easily removed. Be careful
not to drop and break or lose it.
6. Remove the right side cover and the front cover in the direction of the arrow, respectively.
Top Cover
Top Cover Open Button
Left Side Cover
B-EP4D B-EP2D
Gea
Gear
Gea
Right Side Cover
Front Cove
To Next Page
