CHAPTER 6 LABEL MODE (INTERFACE COMMANDS)
B-EP Series
6-17
6.5 COMMANDS RELATED TO DRAWING FORMAT
6.5.1 LINE FORMAT COMMAND [ESC] LC
Function Sets the line format and draws the line.
Format [ESC] LC; aaaa, bbbb, cccc, dddd, e, f [LF] [NUL]
Term aaaa: Start point X-coordinate
Fixed at 4 digits (in 0.1 mm units)
bbbb: Start point Y-coordinate
Fixed at 4 digits (in 0.1 mm units)
cccc: End point X-coordinate
Fixed at 4 digits (in 0.1 mm units)
dddd: End point Y-coordinate
Fixed at 4 digits (in 0.1 mm units)
e: Type of line
0: Line (horizontal, vertical)
1: Rectangle
f: No. of line width dots
1 to 9 (in 0.1 mm units)

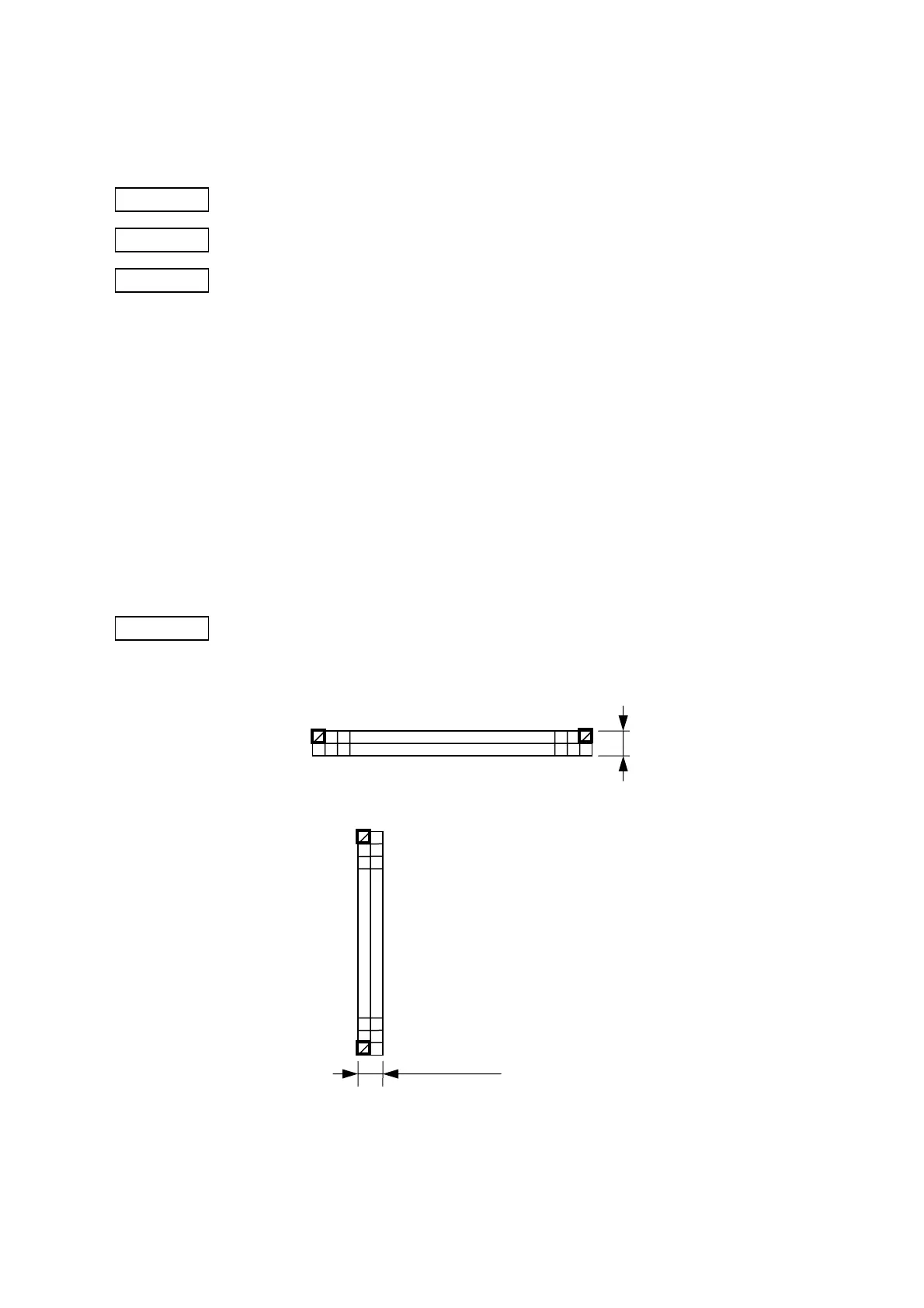

Explanation (1) The relation between the coordinates of the start and end points and the width of
the line, is as follows:
c Horizontal line (In the case of |Y
2
- Y
1
| = 0)
d Vertical line (In the case of |X
2
- X
1
| = 0)
(X
1
,Y
1
) (X
2
,Y
2
)
Line width
(X
1
,Y
1
)
(X
2
,Y
2
)
Line width
