1. OUTLINE EO10-33013B
1.5 ELECTRONICS SPECIFICATIONS
1-11
(4) USB
c Standard: Conforming to Rev. 1.1
d Transfer type: Control transfer, Bulk transfer
e Transfer rate: Full speed (12M bps)
(5) Network interface (LAN, PCMCIA)
c Constitution: • PCMCIA board + LAN card
• 10 Base-T or 100 Base-TX LAN board
d Protocol: TCP/IP
e Network specifications: • LPR server function
• WEB printer function
• Socket communication function
• FTP server function
• E-mail function
4) Sensor/switch
(1) Head up sensor (Transmissive sensor)
This sensor, located on the left front of the printer inside as viewed from the media outlet,
detects whether the print head is in position or not. When the head lever is turned to the Free
position, the arm on the edge of the head lever shaft turns the sensor on.
(2) Head block position switch (Transmissive sensor)
This sensor, located on the left side of the print head block, detects whether the print head
block is in position or not. According to the position of the print head block, the arm on it turns
the sensor on/off.
(3) Media sensor
This sensor is comprised of the black mark sensor and feed gap sensor. It is positioned 92.1
mm from the platen.
The sensor position is adjustable according to the black mark position. It can be manually
moved from the center to the left edge of media.
Black mark sensor (Reflective sensor)
This sensor detects the difference of potential between the black mark and tag paper to find
the print position of the tag paper.

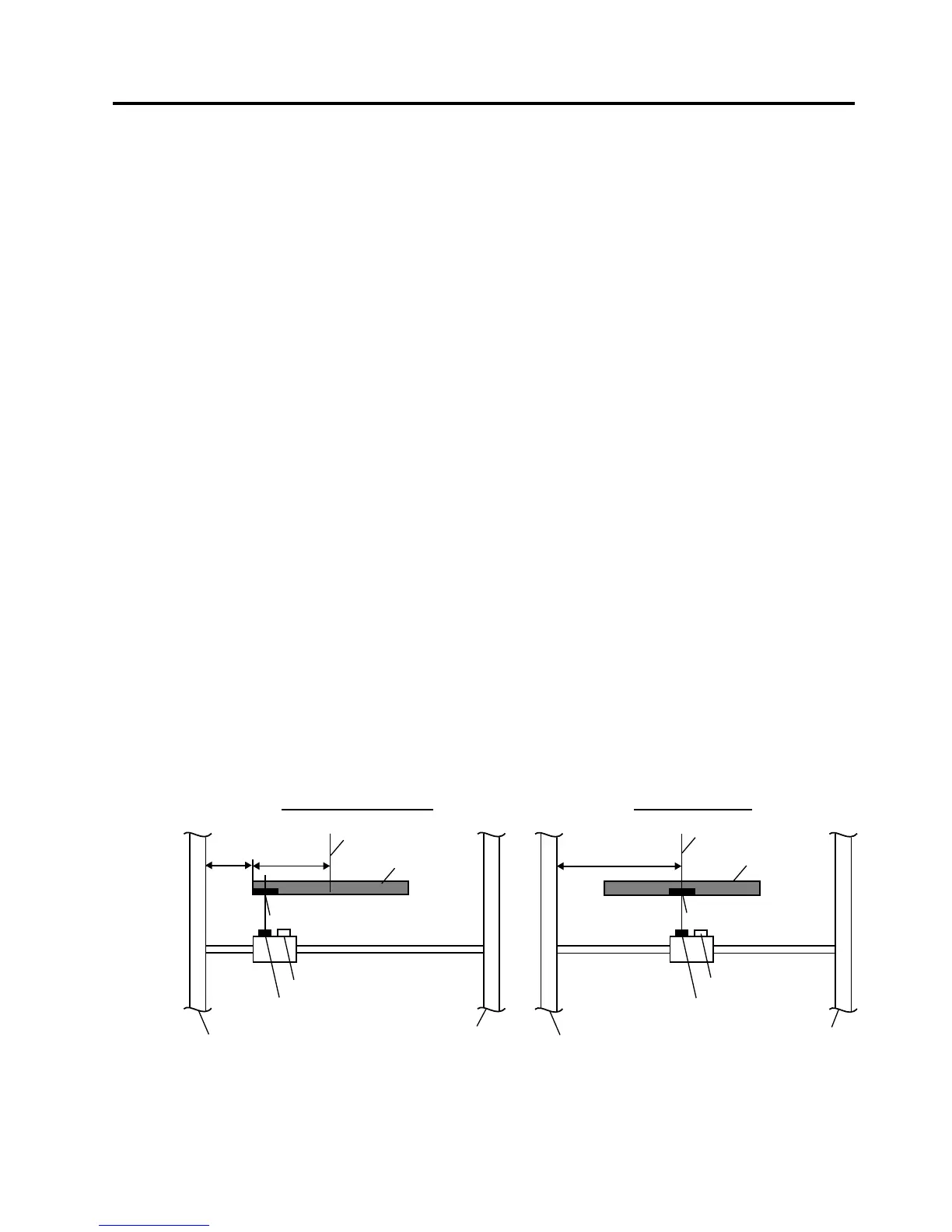

Side detection (max.)
Center detection
Main Frame
Black Mark Sensor
Feed Gap Sensor
Black Mark
Tag Paper
Center
70 mm
Side Frame
23 mm
