1. OUTLINE EO10-33013B
1.5 ELECTRONICS SPECIFICATIONS
1-12

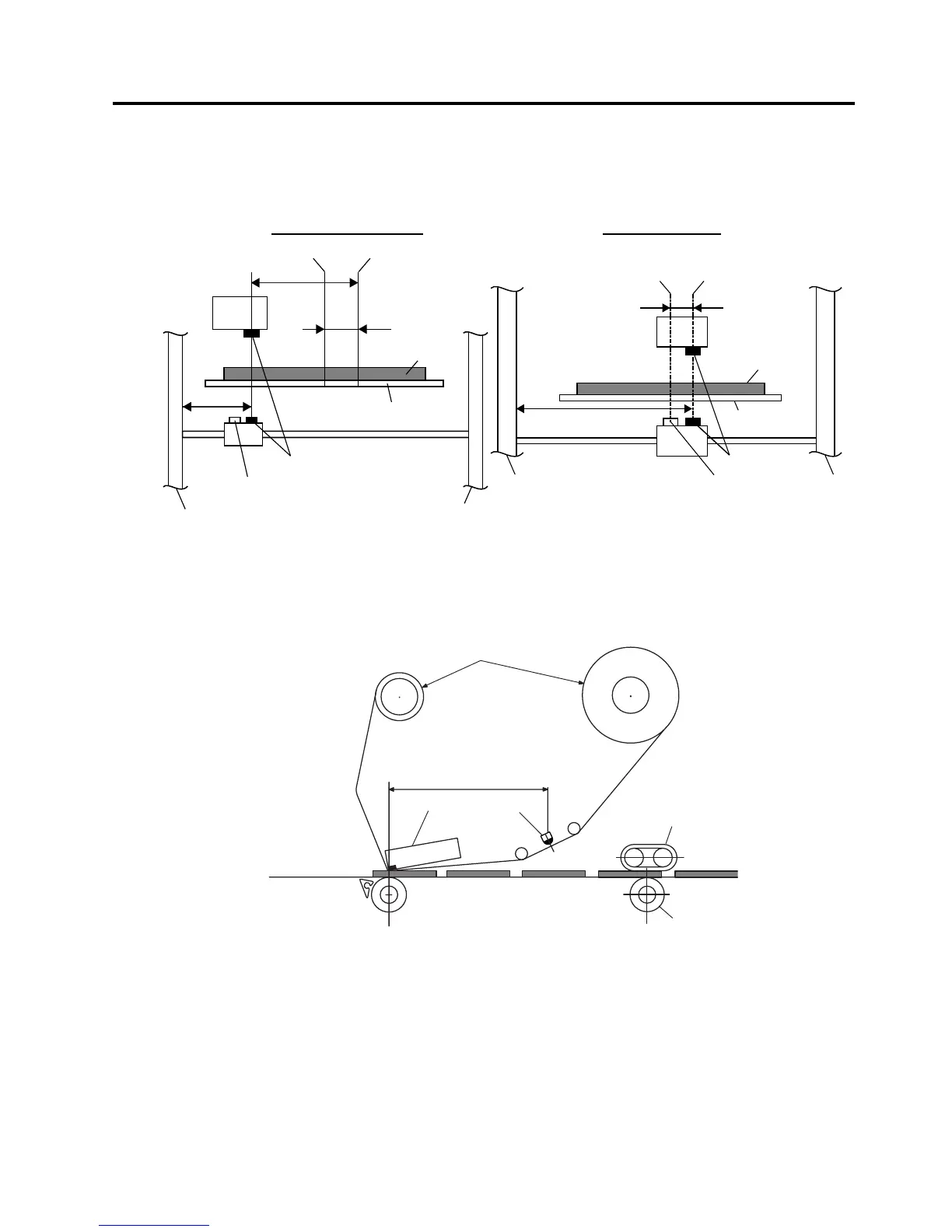

Feed gap sensor (Transmissive sensor)
This sensor detects the difference in potential between the backing paper and the label to
find the print position of the label. The feed gap sensor is located at 8 mm to the right of the
black mark sensor.
Side detection (max.)
Center detection
(4) Ribbon end sensor (Reflective sensor)
When printing in thermal transfer mode (using the ribbon), this sensor detects the difference in
potential between the ribbon and the ribbon end to indicate the ribbon end. It is positioned at
48.28 mm from the platen.
Main Frame
Black Mark Sensor
Backing Paper
Label
Home PositionCenter of Label
Feed Gap Sensor
8 mm
Side Fram
22.5 mm
78.5 mm
8 mm
101 mm
Main Frame
Backing Paper
Feed Gap Sensor
Black Mark Sensor
Label
Home PositionCenter of Label
Side Fra
m
Print Head
Ribbon End
Sensor
48.28 mm
Ribbon
Pinch Roller
Feed Rolle
r
