Toshiba B-SX5T User Manual

1. OUTLINE EO10-33013B
1.5 ELECTRONICS SPECIFICATIONS
1-13

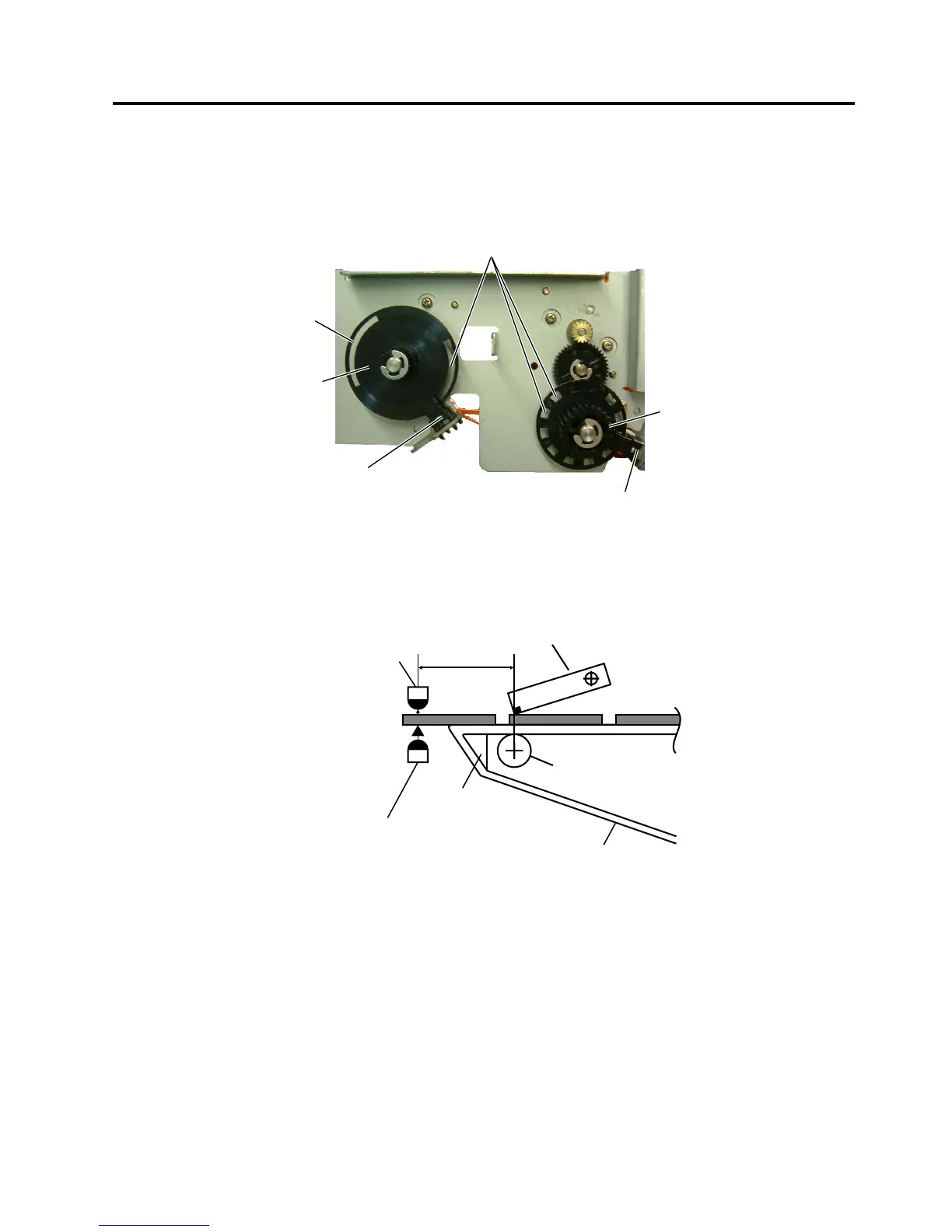

(5) Slit sensor (Transmissive sensor)
This sensor detects the rotation count of the ribbon shaft and the ribbon motors. The ribbon
motors torque works to take up slack in the ribbon and is dependent on the detected count.
The slit sensor is a photo coupler combining an LED and a transistor.
(6) Strip sensor (Transmissive sensor)
This sensor detects whether or not the label has been taken away from the media outlet and
controls the label feed. It is positioned 17.8 mm from the platen.
Slit
Slit Sensor (Rewind)
Slit
Slit Sensor (Feed)
Rewind Slit Gea
r
Feed Slit Gear
Platen
Strip Shaft
Strip Sensor (LED)
Backing Paper
Print Head
Strip Sensor (Tr)
17.8 mm

Toshiba B-SX5T Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Interface	Parallel, USB
Optional Interfaces	Wireless LAN
Memory	4 MB Flash
Print Speed	Up to 152.4 mm/sec (6 ips)
