1. OUTLINE EO10-33013B
1.5 ELECTRONICS SPECIFICATIONS
1-14

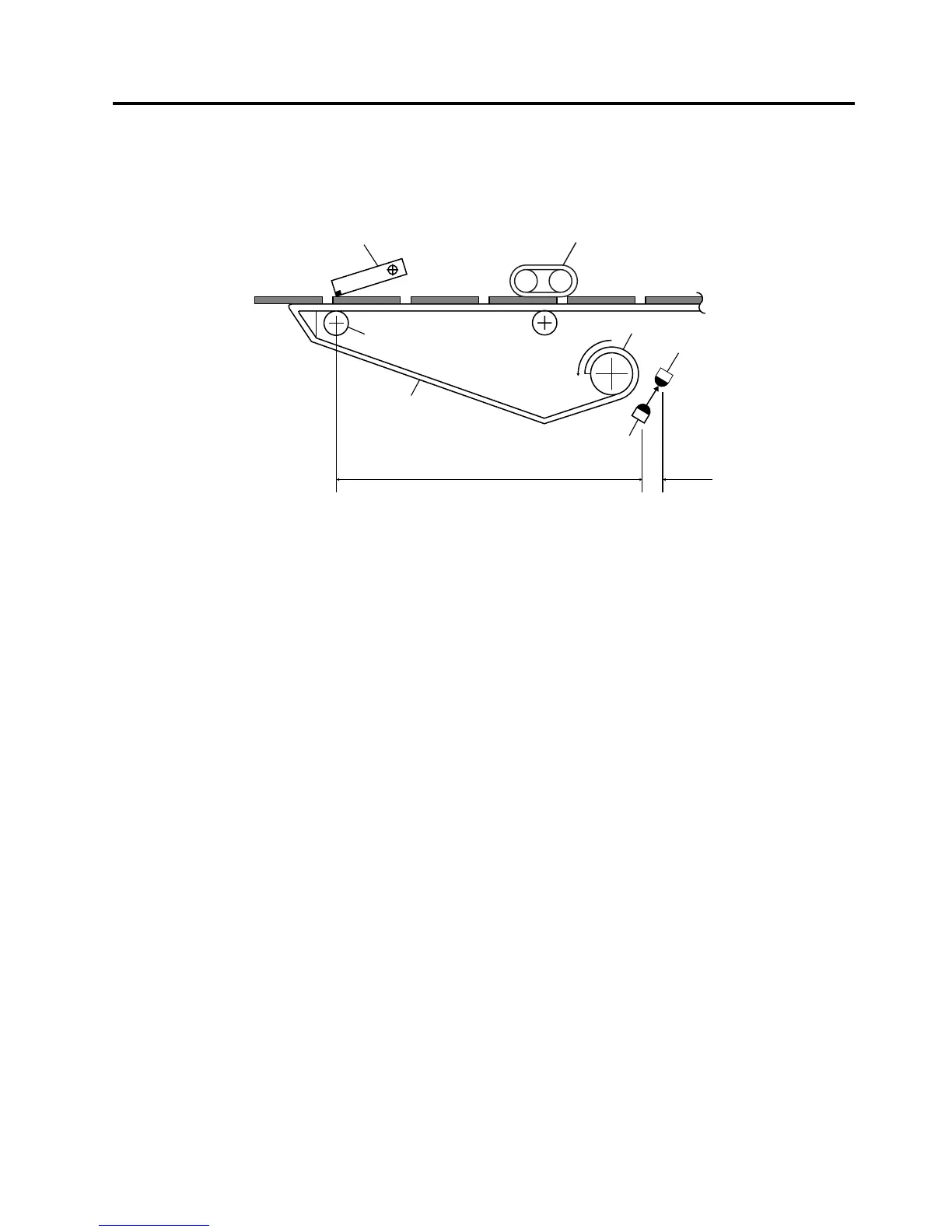

(7) Rewind full sensor (Transmissive sensor)
This sensor detects that the built-in rewinder is full when winding backing paper or printed
media onto the take-up spool. It is positioned at 316.4 mm (Tr side) and 272 mm (LED side)
from the platen. A rewinder full status is detected when the backing paper blocks the light from
the LED.
(8) Cutter home position switch (micro switch) for Swing Cutter
A cam positioned at the end of the cutter motor arm turns the micro switch on/off in accordance
with the cutter motion cycle (one rotation). The micro switch status indicates if the cutter is in
the home position.
Rewind Full Sensor (LED)
Platen
Backing Paper
Print Head
Take-up Spool
Rewind Full Sensor (Tr)
272 mm 44.4 mm
Pinch Roller
To Next Page
