Touch panel
When the power is turned on, the basic menu for the copier function appears on this touch
panel. The status of the equipment is also displayed on the touch panel with messages and illus-
trations.
* APS: Automatic paper selection, AMS: Automatic magnification selection
Message display
The following information appears at the top of the touch panel:
Equipment status, operational instructions, cautionary messages, reproduction ratios, number of
copy sets, paper size of a selected drawer, amount of paper in a selected drawer and date and
time.
Touch-buttons
Press these buttons on the touch panel lightly to set various functions.
Index buttons
Press these buttons to switch menus. The type and number of the index buttons vary depending
on the function of the copier, scanner and e-Filing.
Function setting area
This area includes buttons for selecting and setting each function.
[SETTINGS] button
Press this button to confirm currently set functions.

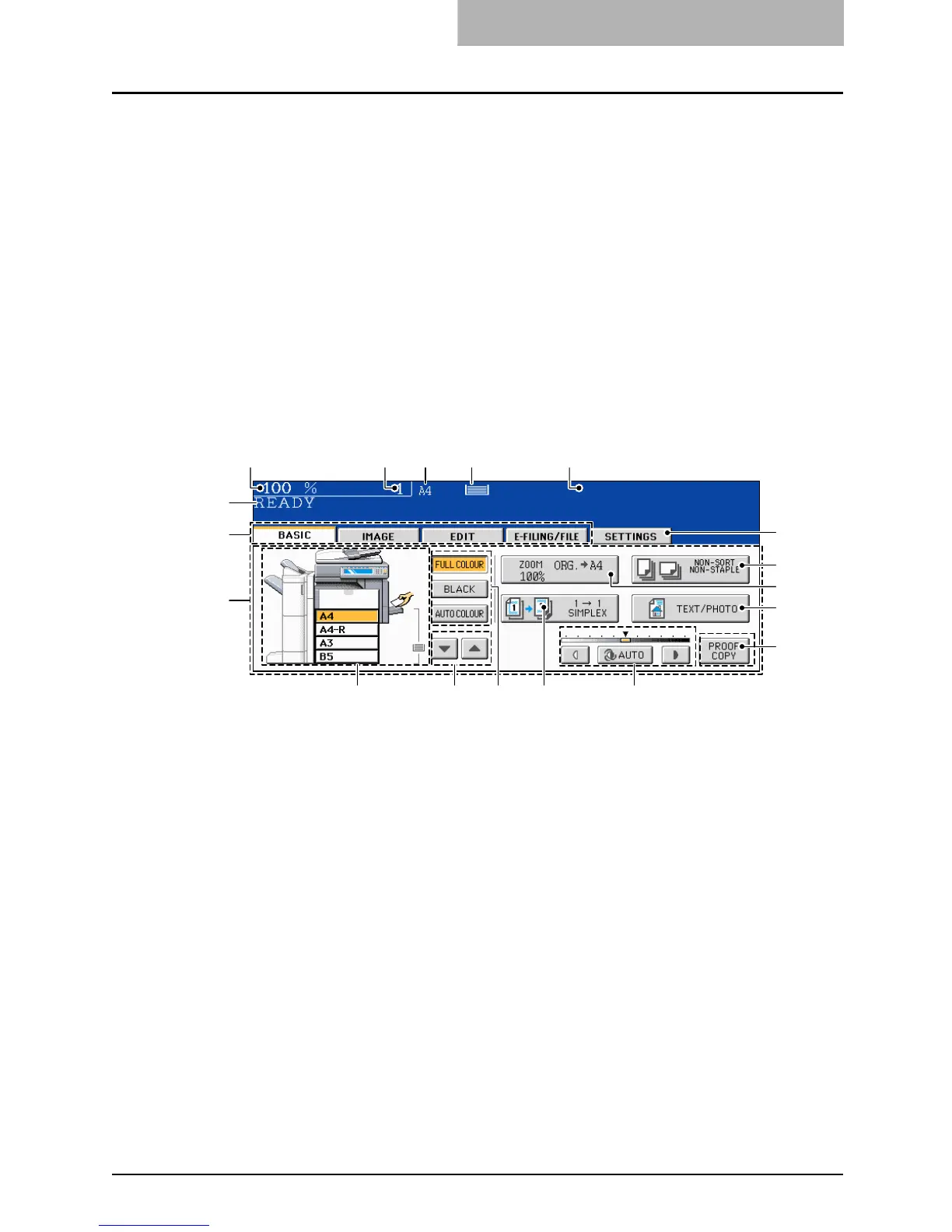

1. Message 10. Original mode button
2. Reproduction ratio 11. [PROOF COPY] button
3. Number of copy sets 12. Density adjustment buttons
4. APS/AMS* or currently selected paper size 13. Simplex / duplex button
5. Remaining paper level 14. Colour mode button
6. Date and time 15. Paper source selection buttons
7. [SETTINGS] button 16. Equipment status indication area
8. Finisher button 17. Function setting area
9. Enlargement/Reduction ([Zoom...]) button 18. Index buttons
