1 TROUBLESHOOTING FOR THE HARDWARE
14 Clearing a Paper Jam
Clearing a Paper Jam

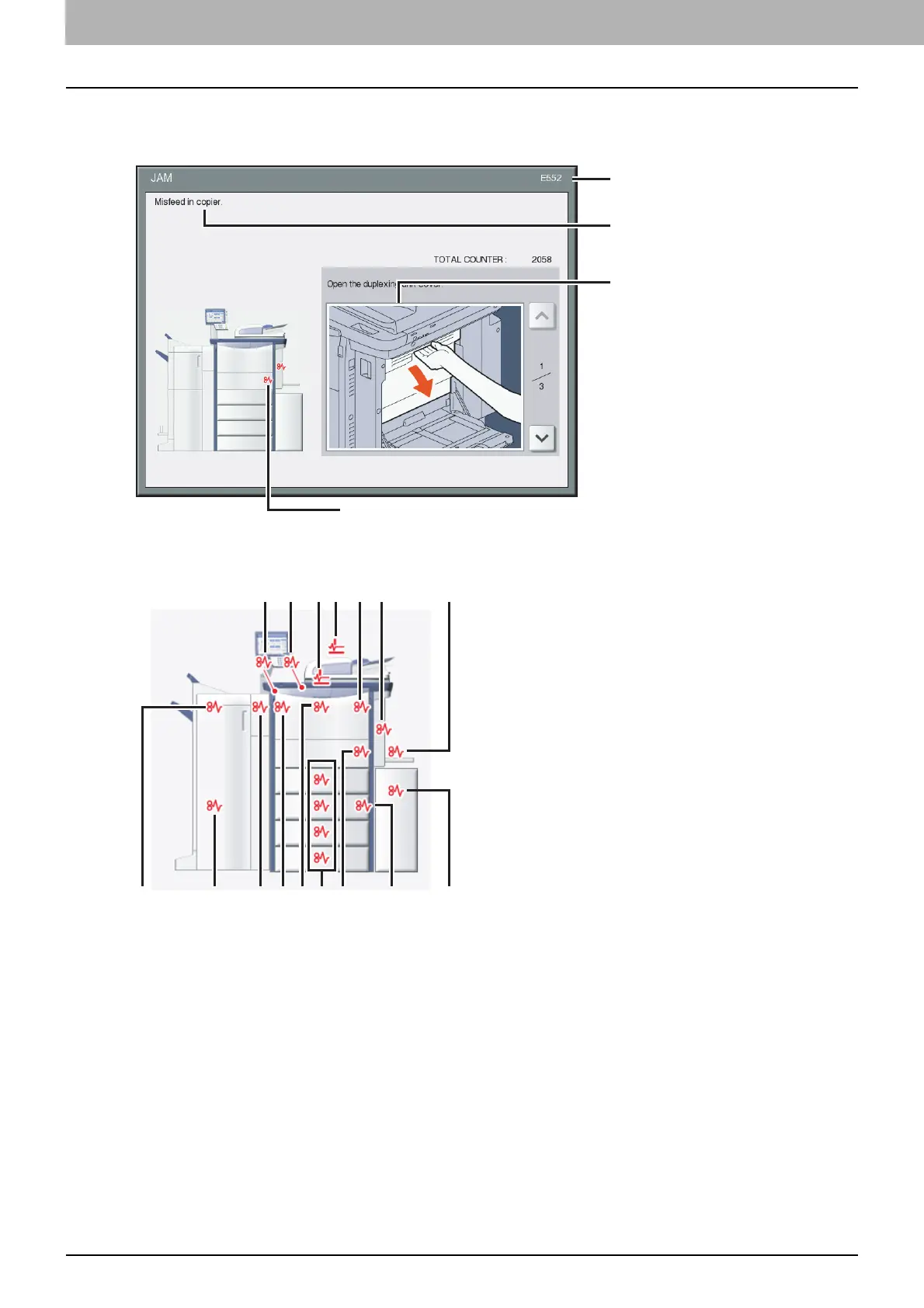

Locating a paper jam
The equipment stops printing when the original or paper is jammed. Paper jams are notified on the touch panel as follows:
The paper jam symbol helps you locate the paper jam.
1. Receiving tray lower cover ( P. 3 4 )
2. Receiving tray ( P.33)
3. Reversing Automatic Document Feeder (lower) ( P. 1 6)
4. Reversing Automatic Document Feeder (upper) ( P.17)
5. Fuser unit ( P.23)
6. Duplexing unit ( P. 2 5 )
7. Bypass tray ( P. 2 2 )
8. External Large Capacity Feeder (optional) ( P. 1 8 )
9. Drawer feeding portion ( P. 2 0 )
10. Transport unit ( P. 2 2 )
11. Drawers ( P.21) or drawer of the Tandem Large Capacity Feeder ( P.21)
12. Bridge unit ( P.35)
13. Side receiving tray ( P.33)
14. Hole Punch Unit (optional) ( P. 2 6 )
15. Saddle Stitch unit (optional) ( P. 2 9)
16. Finisher (optional) ( P.26)
Error code
Error message
Paper jam symbols
Guidance for
clearing paper jams
1516 101214 13 89
4321 5 6 7
11
To Next Page
