1.TROUBLESHOOTING FOR THE HARDWARE
Clearing a Paper Jam 23

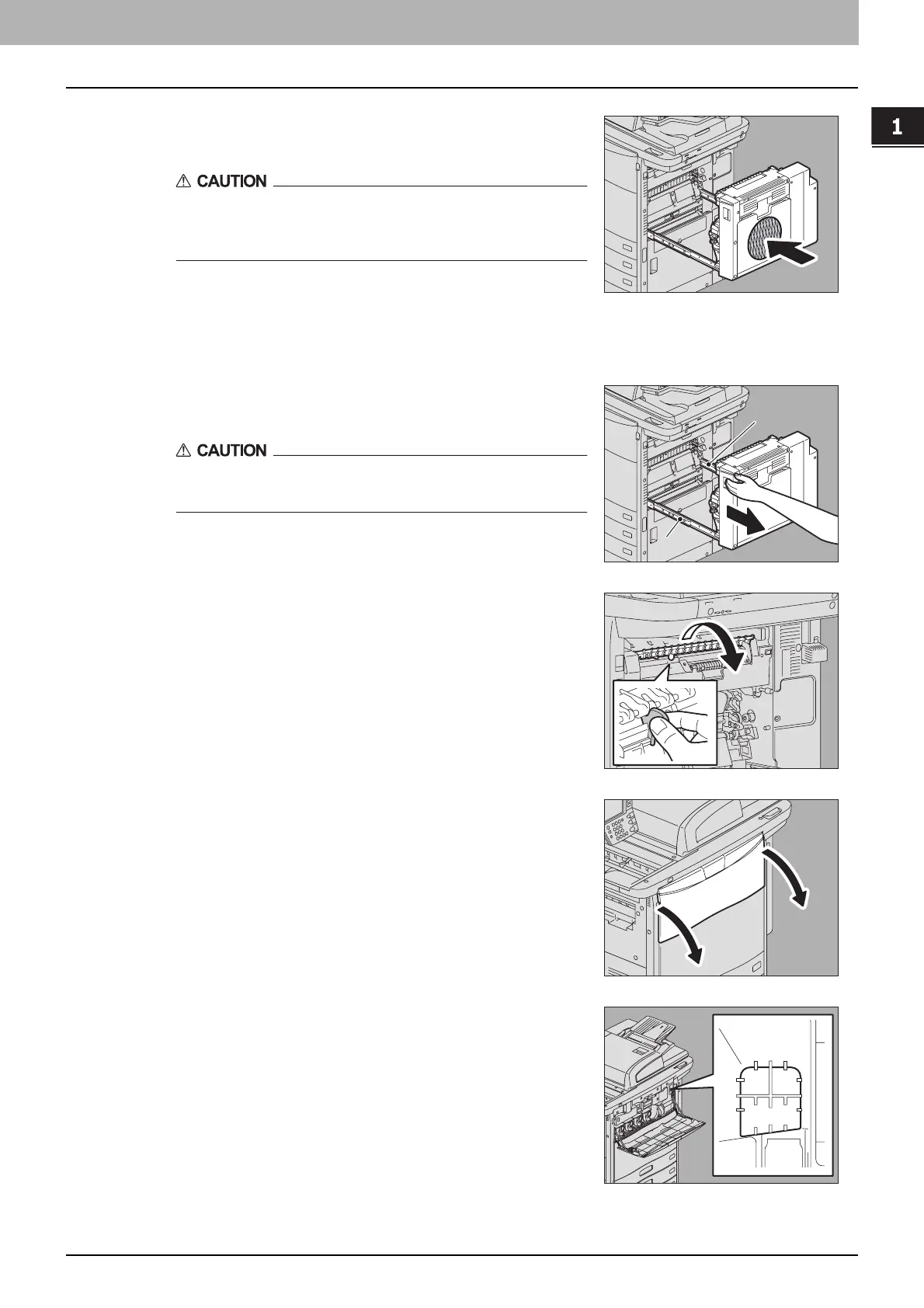

1 TROUBLESHOOTING FOR THE HARDWARE
Fuser unit
3
Close the duplexing unit putting your hands on the
position shown in the figure.
Do not put your hand or fingers on the duplexing unit when
closing it.
They could be caught and this could injure you.
1
Pushing the lock lever, pull out the duplexing unit
from the equipment until it stops.
Be careful not to touch the slide rails (A in the figure).
This could injure you.
2
Holding the green lever, pull out the transport guide
toward you.
3
Check the inside of the fuser unit for the hidden
jammed paper when you cannot see it.
1) Open the front cover of the equipment.
2) Check if jammed paper remains inside the fuser unit through the
window for checking for paper jams.
3) Close the front cover of the equipment.
A
A
To Next Page
