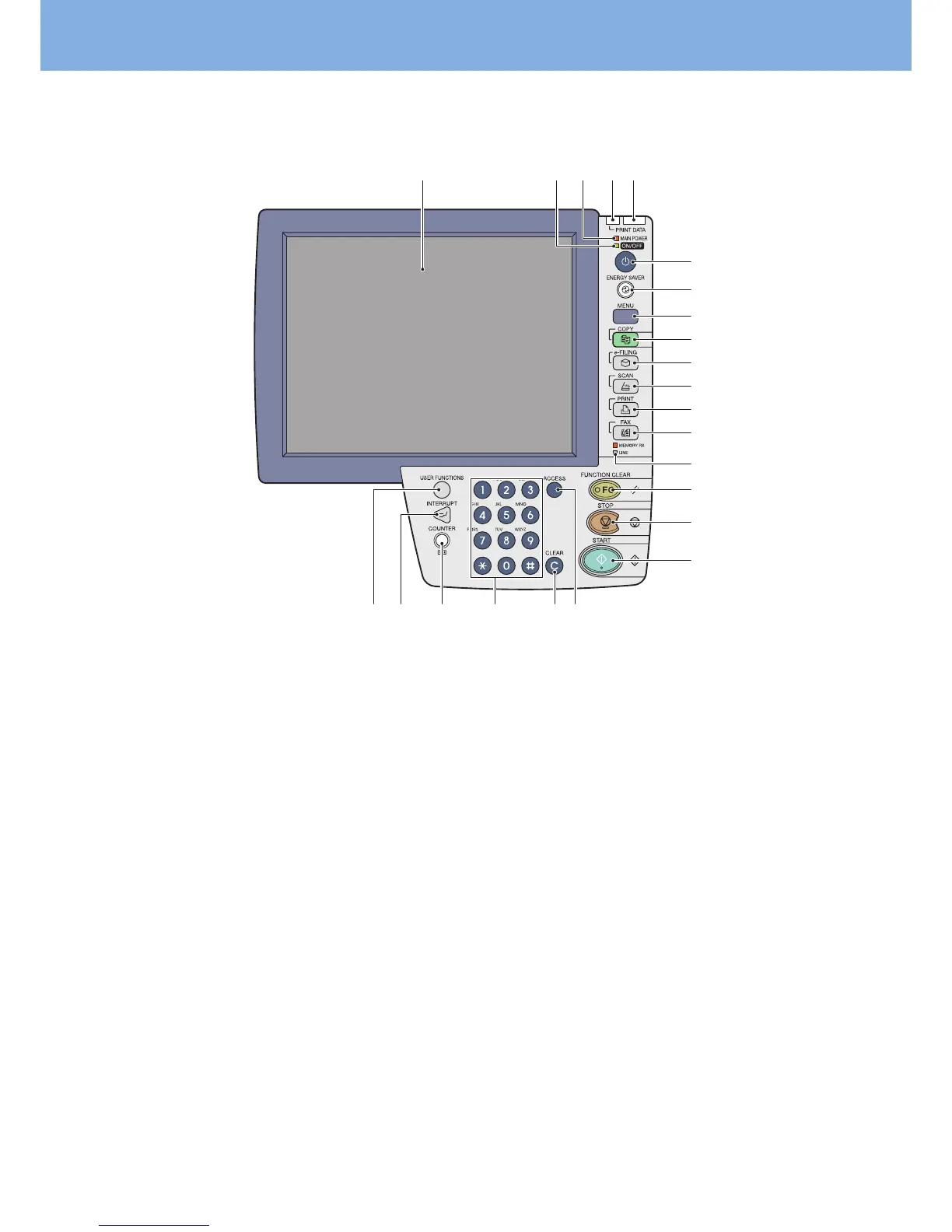

Control panel
Use the buttons on the control panel for various operations and settings in the equipment.
1. Touch panel
Use this panel for the various settings of the copying,
scanning and Fax functions. This also displays messages,
such as when paper runs out or paper jams occur.
2. ON/OFF lamp
This green lamp lights when the [POWER] button is ON.
3. MAIN POWER lamp
This red lamp lights when the main power switch is ON.
4. PRINT DATA lamp
This green lamp lights during reception of data such as
print data.
5. Alarm lamp
This red lamp lights when an error occurs and some action
needs to be taken.
6. [POWER] button
Use this button to turn the power of the equipment ON or
OFF (shutdown).
7. [ENERGY SAVER] button
Use this button for the equipment to enter the energy
saving mode.
8. [MENU] button
Use this button to display frequently used templates.
9. [COPY] button
Use this button to access the copying function.
10. [e-FILING] button
Use this button to access stored image data.
11. [SCAN] button
Use this button to access the scanning function.
12. [PRINT] button
Use this button to access the printing functions such as
private printing, in this equipment.
13. [FAX] button
Use this button to access the Fax / Internet Fax function.
14. MEMORY RX / LINE lamps
These lamps light in the status of the fax data reception
and fax communication. The equipment can be operated
even while these lamps are lighting.
15. [FUNCTION CLEAR] button
When this button is pressed, all selected functions are
cleared and returned to the default settings. If the default
setting is changed on the control panel, and then copying,
scanning, Fax or similar is performed, this button blinks.
16. [STOP] button
Use this button to stop any scanning and copying
operations in progress.
17. [START] button
Use this button to start copying, scanning and Fax
operations.
6
7
8
9
10
11
12
13
14
15
16
17
2
2223
1 4 5
18192021
3
