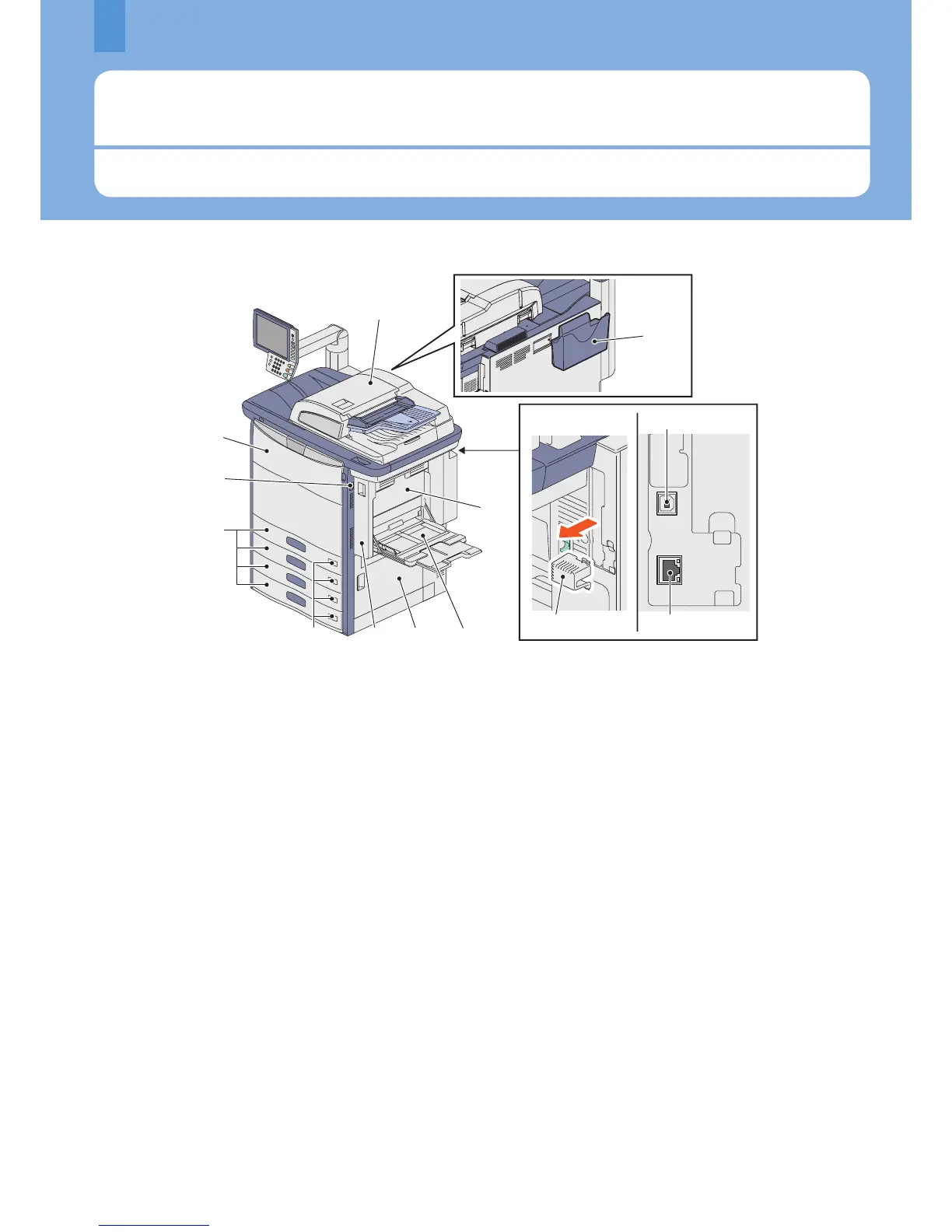

Description of Each Component
This section describes the names and operations of the equipment, control panel and touch panel.
6
1.
Reversing Automatic Document Feeder
The stack of originals is scanned one sheet at a time. Both
sides of the originals can be scanned. A maximum of 100
originals (80 g/m
2
or 20 lb. Bond) (or stack height 16 mm
or 0.62") can be placed in one go. (The maximum number
of sheets that can be set may vary depending on the
media type of the originals.)
2. Operator’s Manual Pocket (back side, optional,
KK-8560)
Keep the manual in this pocket.
3. USB terminal (4-pin)
Use this terminal when connecting this equipment to a PC
with a commercially available USB cable.
4. Network interface connector
Use this connector when connecting this equipment to a
network.
5. Network interface connector cover
6. Duplexing unit cover
Open it when paper jams occur in the duplexing unit.
7. Bypass tray
Use this to perform printing on special media types such
as OHP lm, waterproof paper, etc.
& P.23 “Bypass copying” in this manual
8. Paper feed cover
Open this cover when releasing paper misfed in the
drawer feeding area.
9. Duplexing unit
Use this unit for printing on both sides of the paper. Open
it when paper jams occur.
10. Paper size indicator
The size of the paper set in the drawer can be checked.
11. Drawer
A maximum of 540 sheets (80 g/m
2
or 20 lb. Bond) or 500
sheets (105 g/m
2
or 28 lb. Bond) of plain paper can be
placed in one go.
12. Main power switch
Use this switch to turn the power of the equipment ON or
OFF.
& P.12 “Turning Power ON/OFF” in this manual
13. Front cover
Open this cover when replacing the toner cartridge or
releasing paper misfed in the Bridge Unit.
Front / Right side
Back side
5
3
4
13
11
10
1
2
12
9 7
6
8
To Next Page
