Ref. Service Description
part No.
101 43A52005 Magnetic contactor - FC - 3
102 43A58009 Transformer - TT01
103 43A55004 MF - capacitor - 8µF/450 V AC
104 43A55005 Capacitor - electrolytic -
2200µF/400 V
105 43A50030 Temperature sensor TS - blue
106 43A50031 Temperature sensor THO - green
107 43A50032 Temperature sensor TE - black
108 43A50015 Temperature sensor TD1 - white
109 43A50016 Temperature sensor TD2 - red
110 43A50033 Thermistor (PTC)
111 43A69016 Heatsink
112 43A69035 PC board (IPDU) MCC-1342
113 43A69018 PC board (noise filter) MCC-1366
144 43A69036 PC board (interface) MCC-1223
115 43A69037 PC board (communication)
MCC-1387
116 43A60034 Terminal-6P
117 43A60035 Terminal-9P
Ref. Service Description
part No.
118 43A34001 Relay
119 43A60016 Terminal block - 3P/60 A
120 43A55006 Reactor - CH - 25 - 2FK
121 43A60020 Fuse - 6 A
122 43A60021 Fuse - 20 A
123 43A52006 Magnetic contactor - FMCa -
1S - 02
124 43A60022 Fuse holder - 30 A
125 43A60023 Fuse - 3.15 A
126 43A60024 Fuse - 6.3 A
127 43A63002 Bushing
128 43A63003 Collar
129 43A63004 Supporter (PCB)
130 43A63005 Supporter assembly
131 43A63006 Supporter assembly
132 43A60036 Fuse - 20 A
133 43A60037 Fuse - 10 A
134 43A60038 Fuse-block
Note:
Part 104 - Replace both capacitors at the same time.

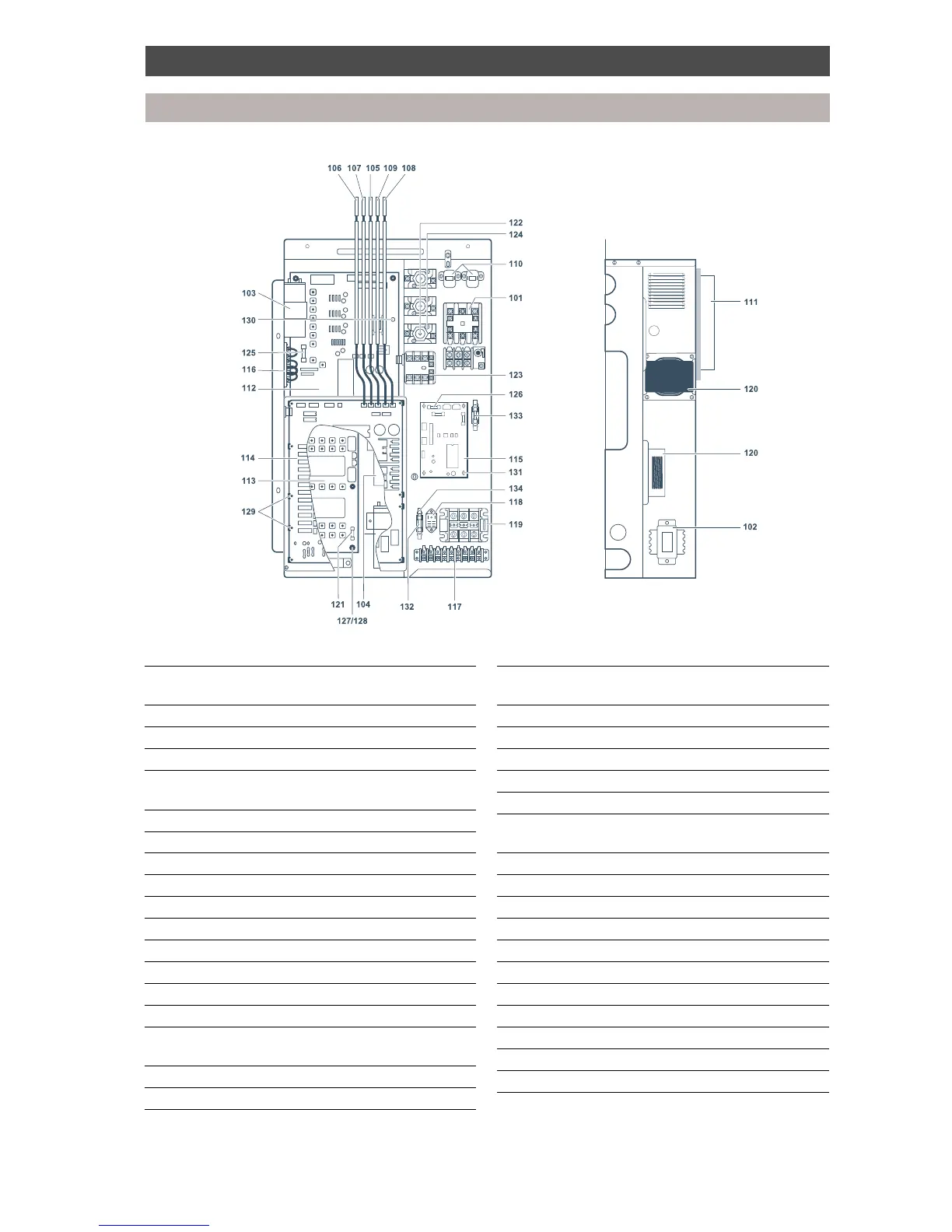

Exploded view and service parts
Outdoor unit - inverter assembly
To Next Page
