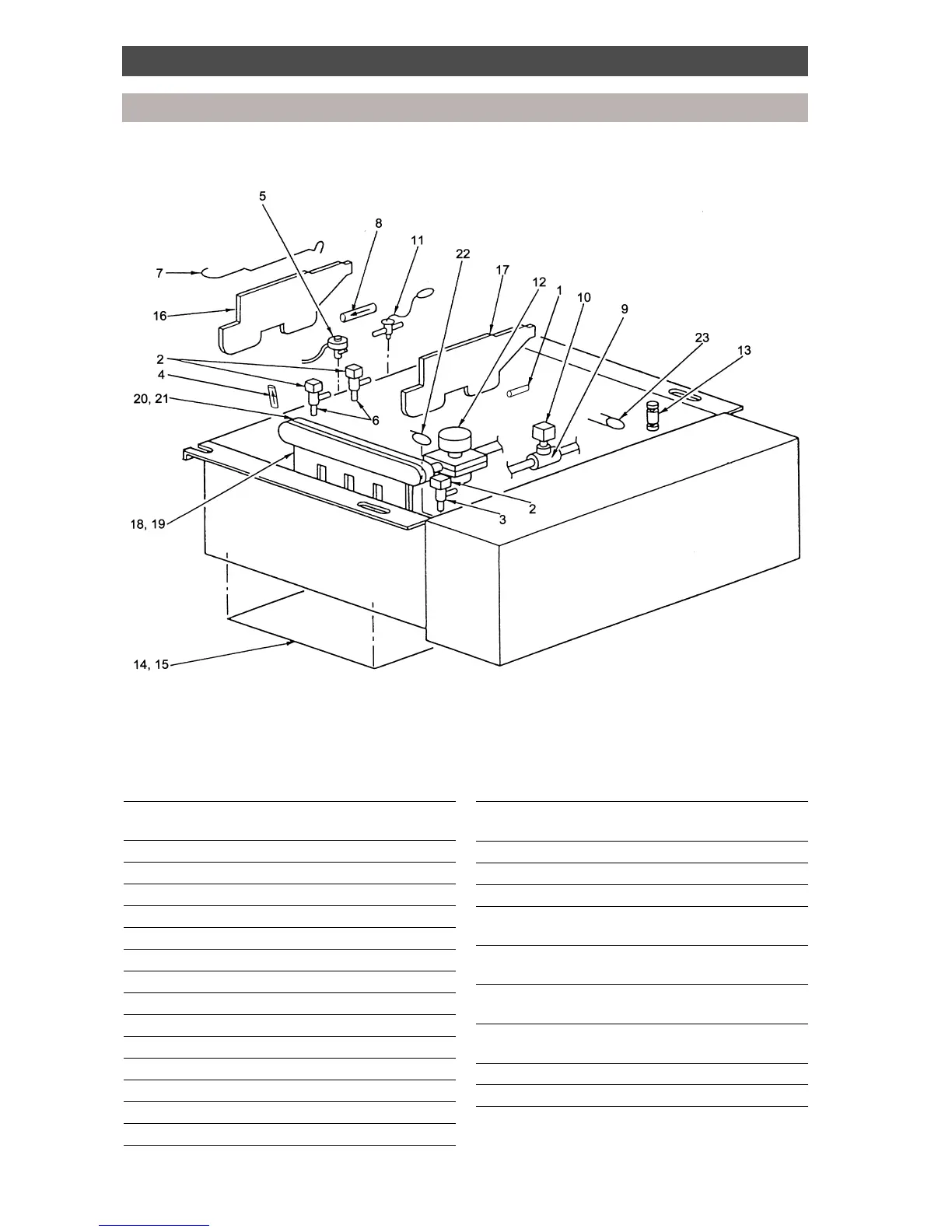

Exploded view and service parts
3-pipe Multi Controller
3-pipe Multi Controller (RBM-Y1034F-PE, RBM-Y1044F-PE)
Ref. Service Description
part No.
1 43107215 Holder, sensor
2 43146443 Solenoid coil
3 43046151 2-way valve
4 43046156 Check valve
5 43046269 Pulse modulating valve
6 43046270 2-way valve
7 43847010 Capillary tube 2.0 diameter
8 43146283 Check valve
9 43146398 Valve body
10 43146506 Solenoid coil
11 43A46011 Expansion valve
12 43146505 2-way valve
13 43151231 Float switch
14 43157252 Panel heater (RBM-Y1044F-PE)
Ref. Service Description
part No.
15 43157253 Panel heater (RBM-Y1034F-PE)
16 43189026 Insulator, liquid A
17 43189027 Insulator, liquid B
18 43189028 Insulator, header A
(RBM-Y1044F-PE)
19 43189029 Insulator, header A
(RBM-Y1034F-PE)
20 43189031 Insulator, header B
(RBM-Y1044F-PE)
21 43189032 Insulator, header B
(RBM-Y1034F-PE)
22 43A47011 Capillary tube 0.8 diameter
23 43A47012 Capillary tube 1.0 diameter
