Toshiba MMY-MAP0726FT2P-UL - Page 285

– 284 –

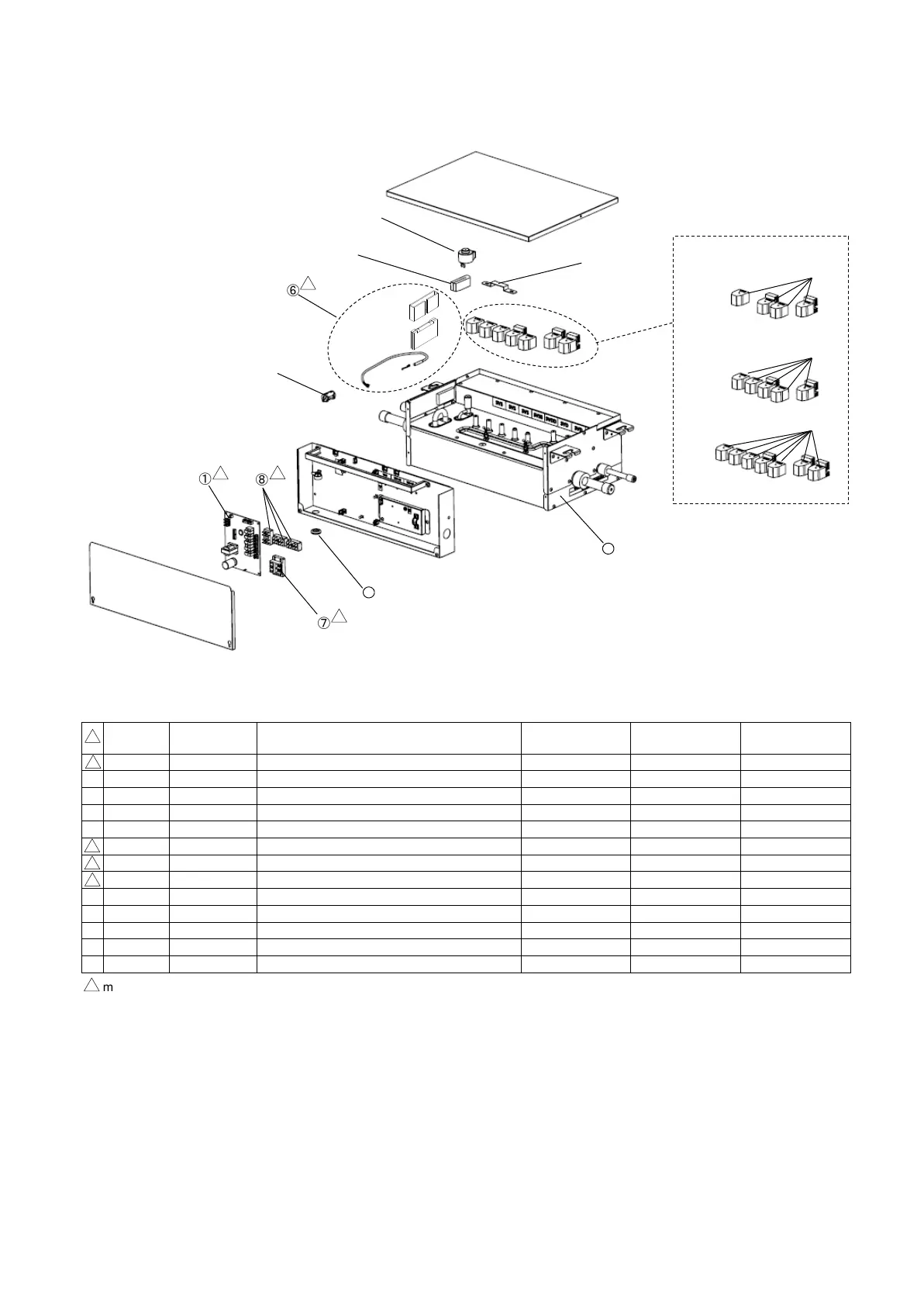

RBM-Y0384FUL, RBM-Y0614FUL, RBM-Y0964FUL
Location
No.
Part No. Description
RBM-Y0384FUL RBM-Y0614FUL RBM-Y0964FUL
1 4316V615 PC BOARD ASSY 1 1 1
2 4314N046 COIL, SOLENOID, AC208-230V 60HZ 4 5 7
3 43119537 PLATE, CONNECTION COIL 1 1 1
4 4314N149 COIL, PMV 1 1 1
5 43111373 INSULATOR, PMV 1 1 1
6 43150382 SENSOR, ASSY, TCS 1 1 1
7 43160575 TERMINAL BLOCK, 2P, 20A 1 1 1
8 43160467 TERMINAL, 2P 1 2 3
9 43F60029 FILTER, NOISE 2 2 2
10 43007101 BUSHING 1 1 1
11 43149450 BODY ASSY, SERVICE 1
11 43149451 BODY ASSY, SERVICE 1
11 43149452 BODY ASSY, SERVICE 1
means highly important parts to maintain product safety.
①
②
R
B
M
-Y038
4
FU
L
R
BM-Y0614FUL
RBM-Y0964FUL
②
③
②
④
⑤
⑥
⑦
⑧
⑨
Note: Coil only
!
!
!
!
!
!
!
! !
!
10
11
