– 239 –
This product offers backup modes of operation to tide over certain emergency situations. If a fault occurs in one of
the compressors, it is possible to operate the system on an emergency basis by operating only the remaining
compressor(s), (compressor backup operation).
If one of the outdoor units fails in a combined outdoor unit system, the system can be operated on an emergency
basis by keeping only the remaining outdoor unit(s), (outdoor unit backup operation).
Perform backup operation setting in accordance with the procedure described below.

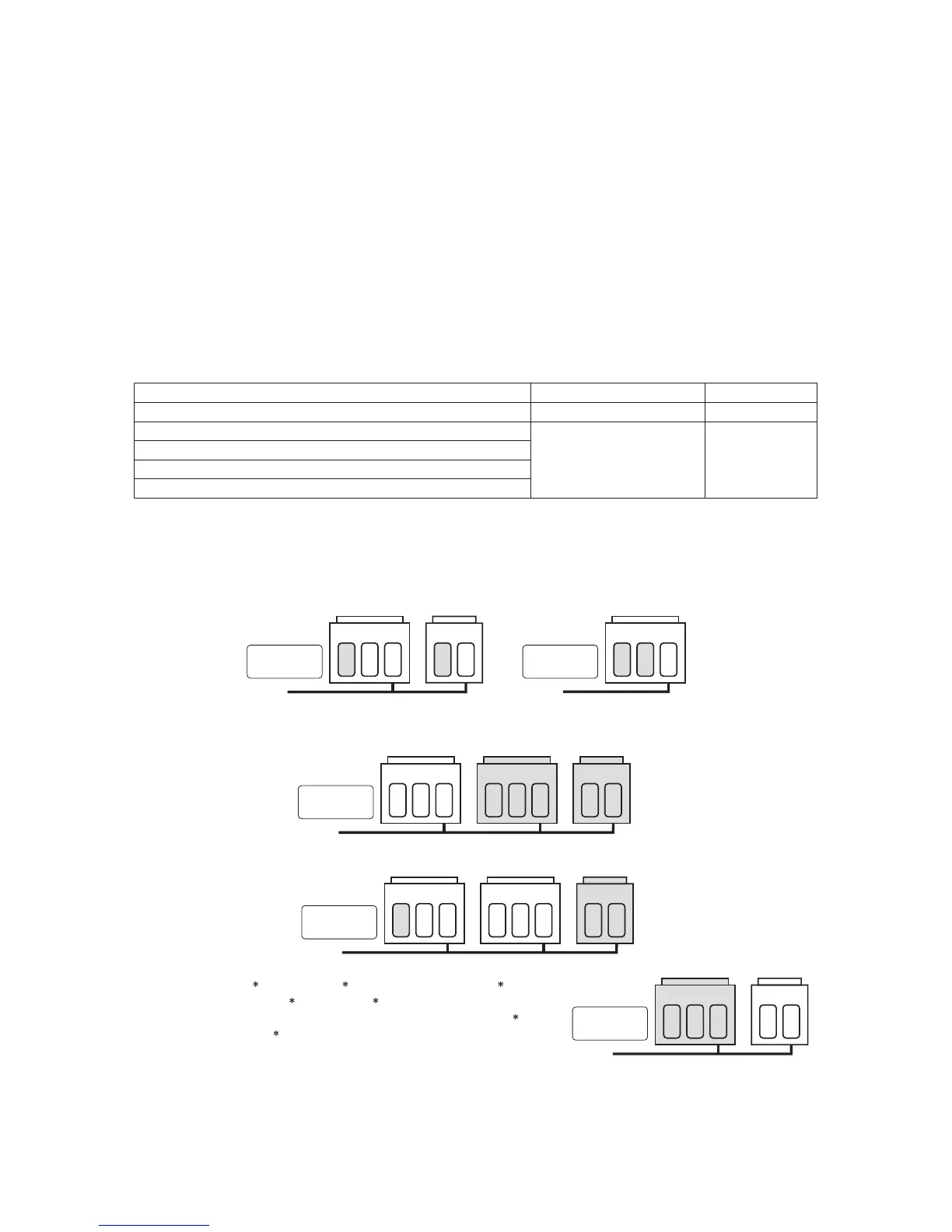

The method of backup operation differs according to the contents of fault as shown in the table below.
Note 1: If the compressor has failed due to a fault in its motor coil (e.g. a layer short-circuit), do not preform
compressor backup operation because of severe oil degradation. It could damage other outdoor units.
Note 2: Keep the number of backed-up outdoor units under compressor backup operation to one in the system
(single refrigerant line). For a three-compressor model, the backing up of two faulty compressors is
prohibited.
Note 3: Keep the number of backed-up outdoor units under outdoor unit backup operation to one in the system
(single refrigerant line).
Note 4: It is prohibited to combine compressor backup operation and outdoor unit backup operation.
Note 5: With a two-outdoor unit system containing an MMY-
MAP1604
(or MAP1404 ) and an MMY-MAP1204 (or
MMY-MAP0804
or MAP1004 ), do not preform outdoor
unit backup operation to back up the MMY-MAP1604
(or MAP1404 ).
It could lead to compressor failure due to the abnormal
operation.
ukcab fo dohteMtluaf fo stnetnoC p operation Setting procedure
.2-9 ot oG)2 etoN ees( pukcab rosserpmoC)1 etoN ees( sliaf tinu emas eht ni srosserpmoc eht fo enO
-gn
ilooc ro pukcab tinu roodtuOliaf tinu emas eht ni srosserpmoc eht llA
season outdoor unit backup (see
Notes 1, 3, 4 and 5)
Go to 9-3. or 9-4.
A fault occurs in a compressor motor coil (e.g. a layer short-circuit)
A fault occurs in a refrigerating cycle part, fan or related part, or electrical part
A fault occurs in a temperature sensor or pressure sensor
Faulty
Faulty
Example
Prohibited
Example
Prohibited
srosserpmoc pu-dekcab owTrosserpmoc pu-dekcaBrosserpmoc pu-dekcaB
Faulty
Faulty
Example
Prohibited
Faulty
Backed-up outdoor unit Backed-up outdoor unit
Faulty
Faulty
Example
Prohibited
tinu roodtuo pu-dekcaBrosserpmoc pu-dekcaB
Faulty
MMY-MAP1604
∗
(MMY-MAP1404
∗
)
MMY-MAP1204
∗
(MMY-MAP1004
∗
)
(MMY-MAP0804
∗
)
Example
Prohibited
Faulty
Backed-up outdoor unit
9 BACKUP OPERATION
(EMERGENCY OPERATION)
9-1. Note for Backup Operation
