– 281 –
Outdoor Unit
MMY-MAP1204∗
MMY-MAP1004∗
MMY-MAP0804∗
MMY-MAP1404∗
MMY-MAP1604∗
Inverter P.C. board
for fan
[Fan IPDU]
(MCC-1610)
Inverter P.C. Board for
Compressor 1
[A3 IPDU]
(MCC-1596)
Inverter P.C. Board for
Compressor 2
[A3 IPDU]
(MCC-1596)
Interface P.C. board
[Outdoor control P.C. board]
(MCC-1606)
Power supply
terminal block
Communication terminal block
Magnet switch
Inverter P.C. board for fan
[Fan IPDU]
(MCC-1610)
Interface P.C. board
[Outdoor control P.C. board]
(MCC-1606)
Power supply
terminal block
Communication
terminal block
Magnet switch
Inverter P.C. board
for Compressor 1
(MCC-1596)
Inverter P.C. board
for Compressor 2
(MCC-1596)
Inverter P.C. board
for Compressor 3
(MCC-1596)
Part code Description Applicable model P.C. board type code Product code
43T6V373 Interface P.C. board MMY-MAP0804
MMY-MAP1004
MMY-MAP1204
MMY-MAP1404
MMY-MAP1604
MCC-1606 ASM-PCB(I/F)
)UDPI3A(BCP-MSA6951-CCMdraob .C.P UDPI-pmoC43T6V374
)UDPINAF(BCP-MSA0161-CCMdraob .C.P UDPI naF43T6V371
)F/N(BCP-MSAB,A-8061-CCMdraob .C.P retlif esioN43T6V372
13-2. Replacement of Outdoor P.C. Boards
13-2-1. List of service P.C. boards

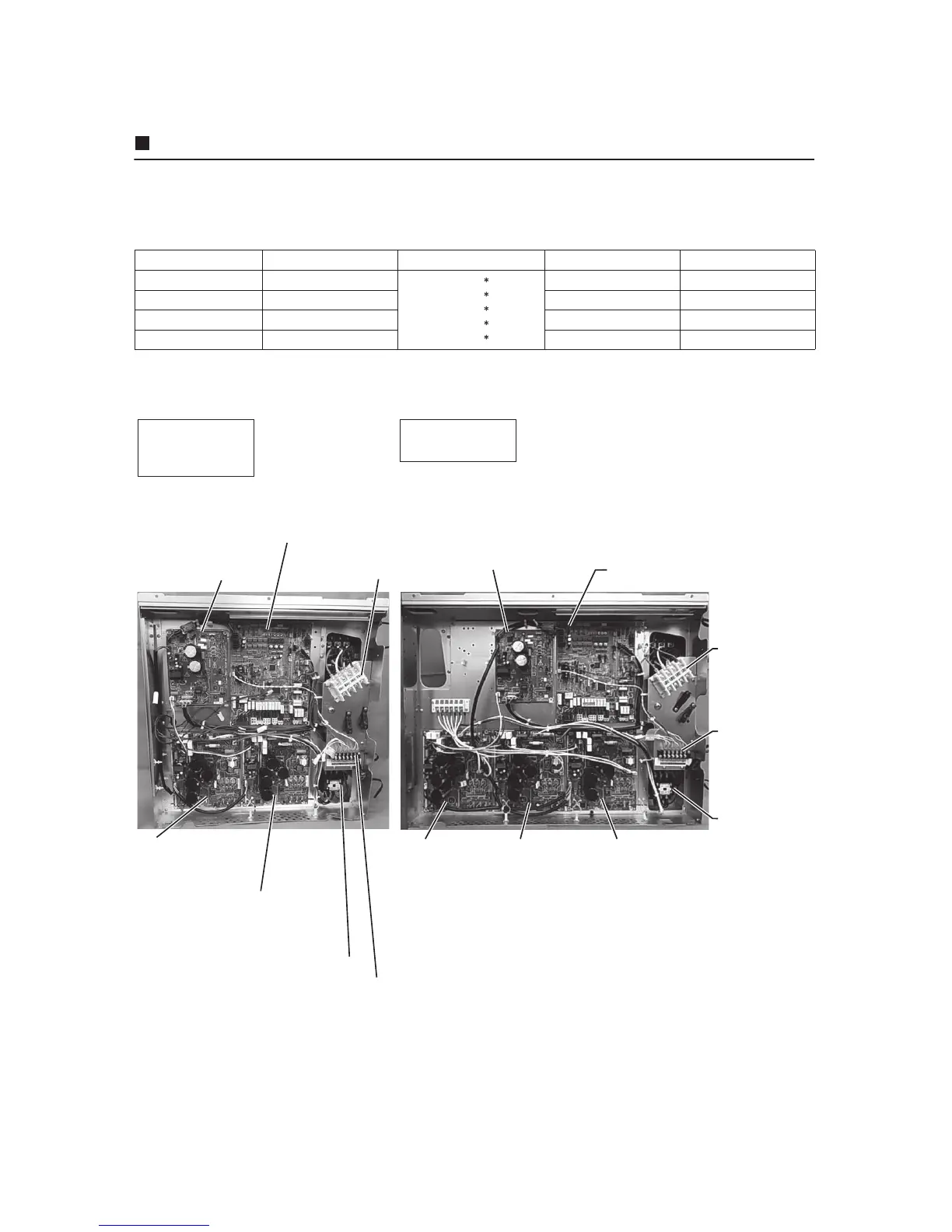

13-2-2. Configuration of inverter assembly
