– 276 –
Procedure 1: Reading Setting Data from EEPROM
(Read the setting data from EEPROM, including both the factory settings and any modifications made to them on
site.)
1 Push the + + buttons simultaneously and hold for at least 4 seconds. 1 (This number
corresponds to the same number shown on the Remote Controller Operation Diagram.)
* In the case of group control, the unit No. displayed first is the indoor unit No. of the header unit.
At the same time, the CODE No. (DN code) 10 is displayed, and the fan of the selected indoor unit comes
on, with the louver swinging, depending on the model.
2 Each time the button is pushed, one of the indoor unit No. under group control is
displayed in turn.
2
* The fan of the selected indoor unit comes on, with the flaps swinging, depending on the model.
3 The button allows you to move the CODE No. (DN code) up/down by one place. 3
4
First, change the CODE No. (DN code) from 10 to 01. (To set filter sign lighting time)
Jot down the setting data displayed.
5 Change the CODE No. (DN code) using the button.
Again, jot down the setting data displayed.
6 Repeat step 5 until all the setting data has been jotted down. (See the CODE No. list.)
* CODE No. (DN code) go from 01 to FF with a few gaps along the way.
7 When finished, push the button to bring the system back to normal off state. 6
(It takes the system about 1 minute to become responsive to remote controller operation.)
CODE No. (DN code) necessary at minimum
The type and capacity of the indoor unit are necessary for fan speed setting.
DN Contents
10 Type
11 Indoor unit capacity
12 Line address
13 Indoor address
14 Group address
UNIT LOUVER
SET DATA
R.C.
No.
UNIT No.
CODE No.
TEMP.
ON / OFF
PROGRAM
DAY
TIME SAVE
3
6
1
5
2
4
FILTER UP/DN
SCHEDULE
FAN
MODE
VENT
FLT.RESET
TEST
SET CL
SWING/FIX
UNIT
LOUVER
<Fig. 2 RBC-AMS41E>
TEMP.
ON / OFF
SETTING
SET DATA
UNIT
CODE No.
No.
R.C.
No.
SET
TIME
TIMER SET
TEST
FILTER
RESET
CL
FAN
SAVE
SWING/FIX
VENT
MODE
UNIT LOUVER
3
6
1
5
2
4
<Fig. 1 RBC-AMT32E>

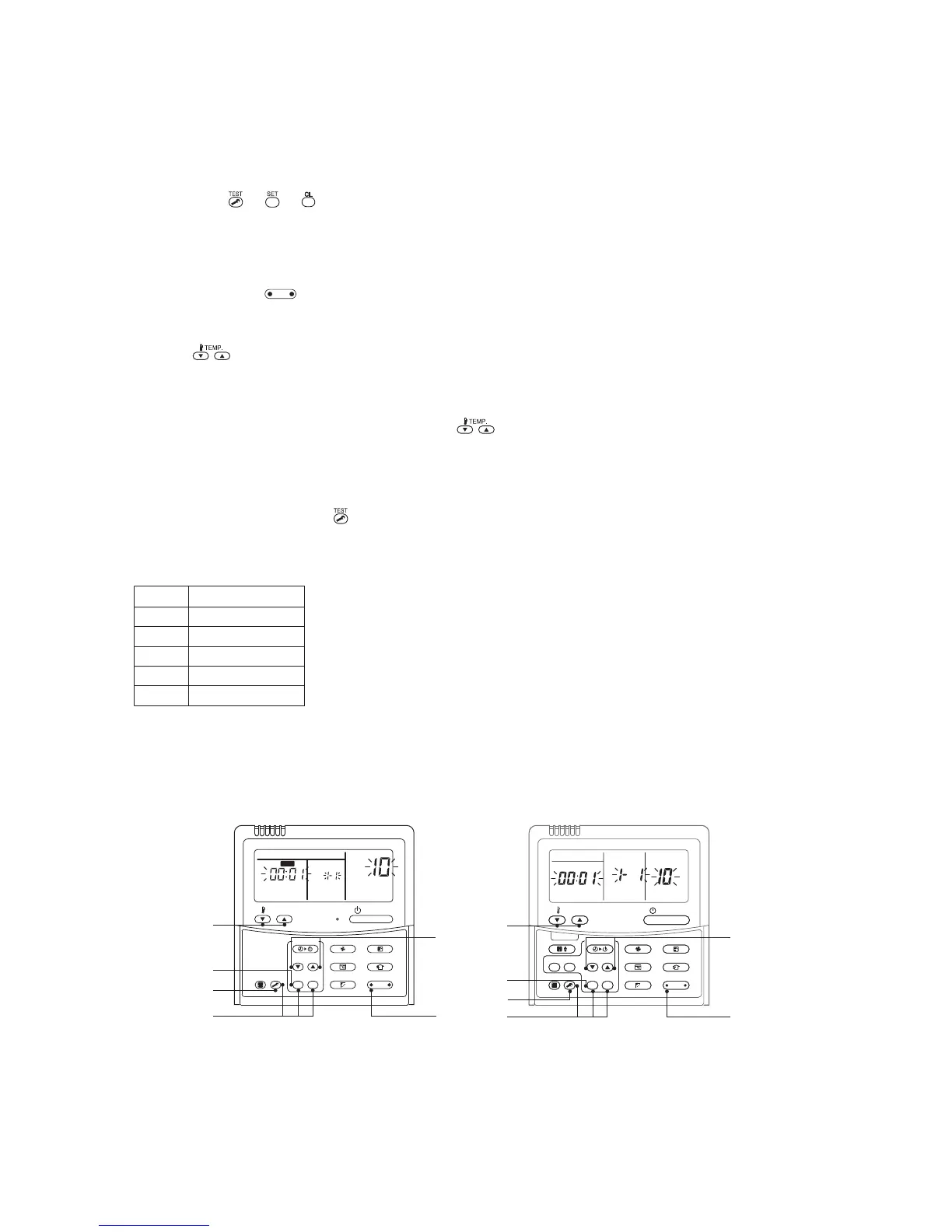

Remote Controller Operation Diagram
