– 279 –

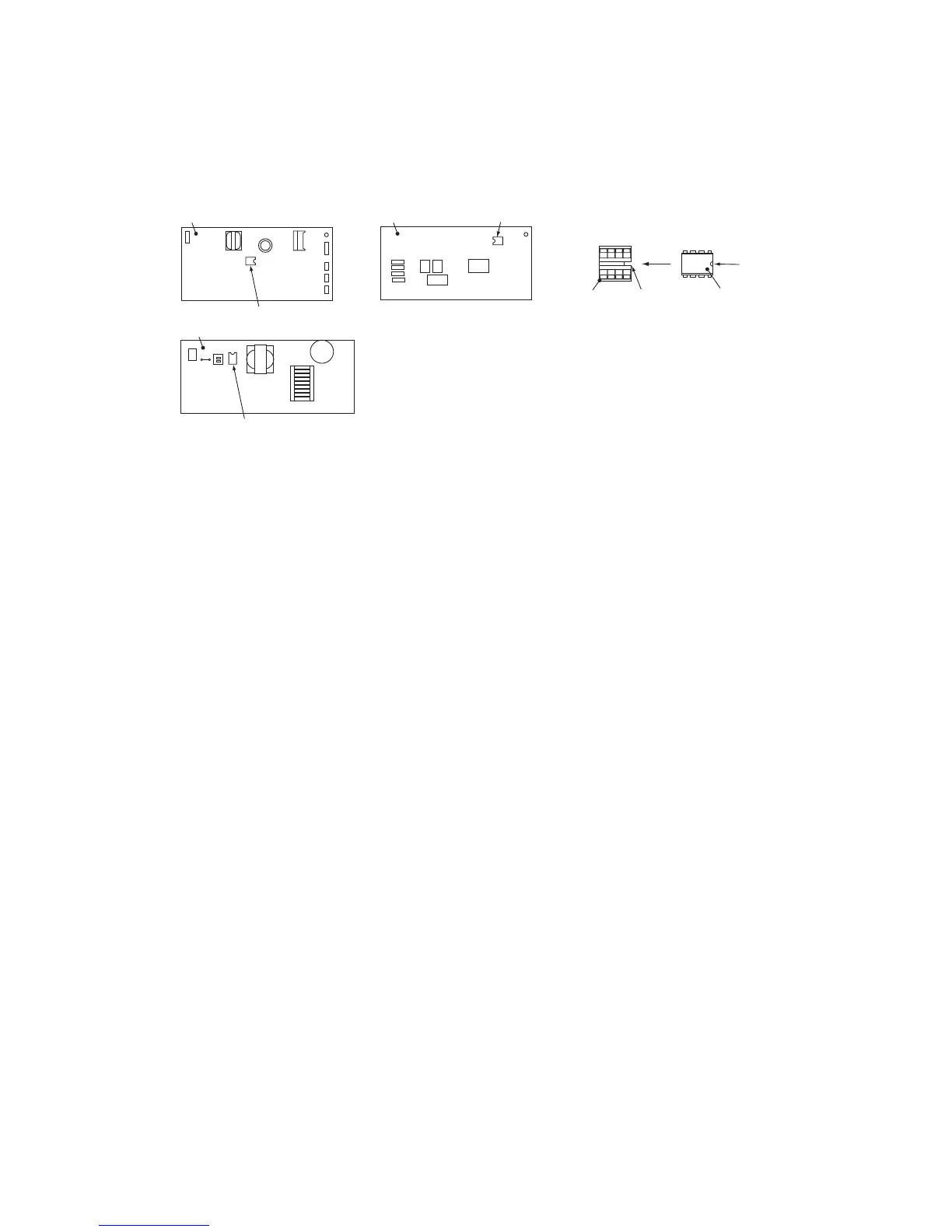

EEPROM Location Diagram
The EEPROM (IC503, IC10) is mounted on an IC socket. Use a pair of tweezers, etc. to remove it. When installing
it, adjust its orientation as shown in the diagram below.
During EEPROM removal/installation, take care not to bend IC leads.
IC503
P.C. board (MCC-1402)
P.C. board (MCC-1570)
P.C. board (MCC-1403)
EEPROM(IC10)
EEPROM(IC10)
IC socket Notch
Notch
EEPROM
EEPROM(IC503)
When installing the EEPROM, align
its notch with that of the IC socket.
