– 93 –

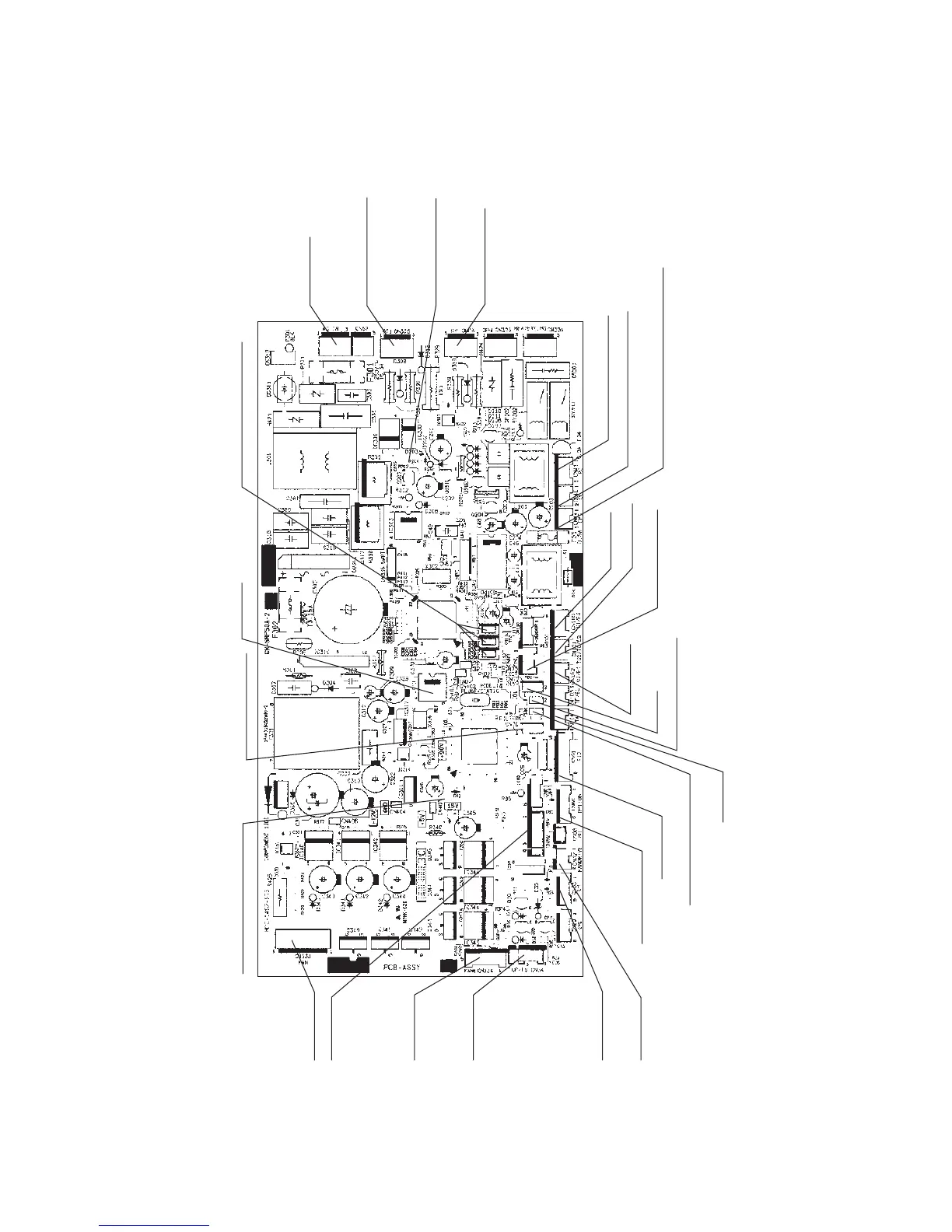

MCC-1402 <Compact 4-way Cassette Type, 1-way Cassette (SH) Type, 2-way Cassette Type,
Ceiling Type, Concealed Duct Standard Type, Slim Duct Type, High Wall Type>
DC fan output
PMV output
DC fan return
Float SW
Fan output
Optional output
HA(T10)
CHK
DISP
(Used for servicing)
(Used for servicing)
EXCT
TCJ sensor
TCI sensor
TC2 sensor
External error input
Remote controller jumper
Indoor/outdoor communication
(doubling as central control communication)
Indoor/outdoor communication (backup)
Drain pump output
Optional power suppl
y
Power supply
EEPROM High-ceiling adjustment input
Filter/optional error input
Microcomputer operation LED
TA sensor
Flap
Remote controller
power source LED
