– 22 –

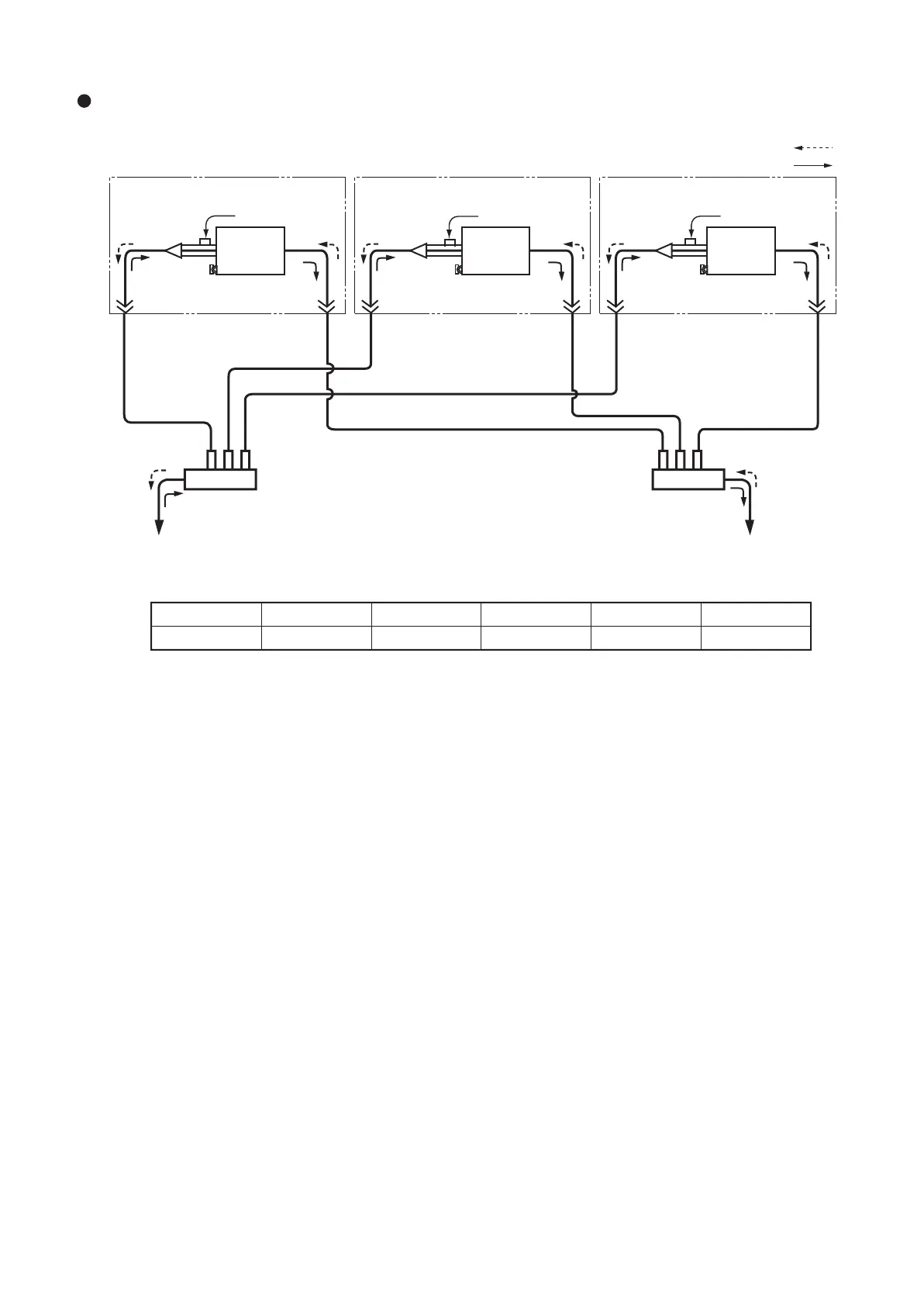

Triple type (3 indoor units and 1 outdoor unit)
Heating
Cooling
(Indoor unit A)
Distributor
(with strainer)
Distributor
(with strainer)
Distributor
(with strainer)
Heat
exchanger
Heat
exchanger
Heat
exchanger
TCJ sensor TCJ sensor TCJ sensor
TC sensor
Branch pipe Branch pipe
To outdoor unit To outdoor unit
Liquid-side
(outer diameter:
C)
Gas-side
(outer diameter: D)
TC sensor TC sensor
Liquid-side
(outer diameter: A)
Liquid-side
(outer diameter: A)
Liquid-side
(outer diameter: A)
Gas-side
(outer diameter: B)
Gas-side
(outer diameter: B)
Gas-side
(outer diameter: B)
(Indoor unit B) (Indoor unit C)
Dimension table
Indoor unit Branch pipe A B C D
HM56 × 3 RBC-TRP100E 6.4 12.7 9.5 15.9
(Unit: mm)
