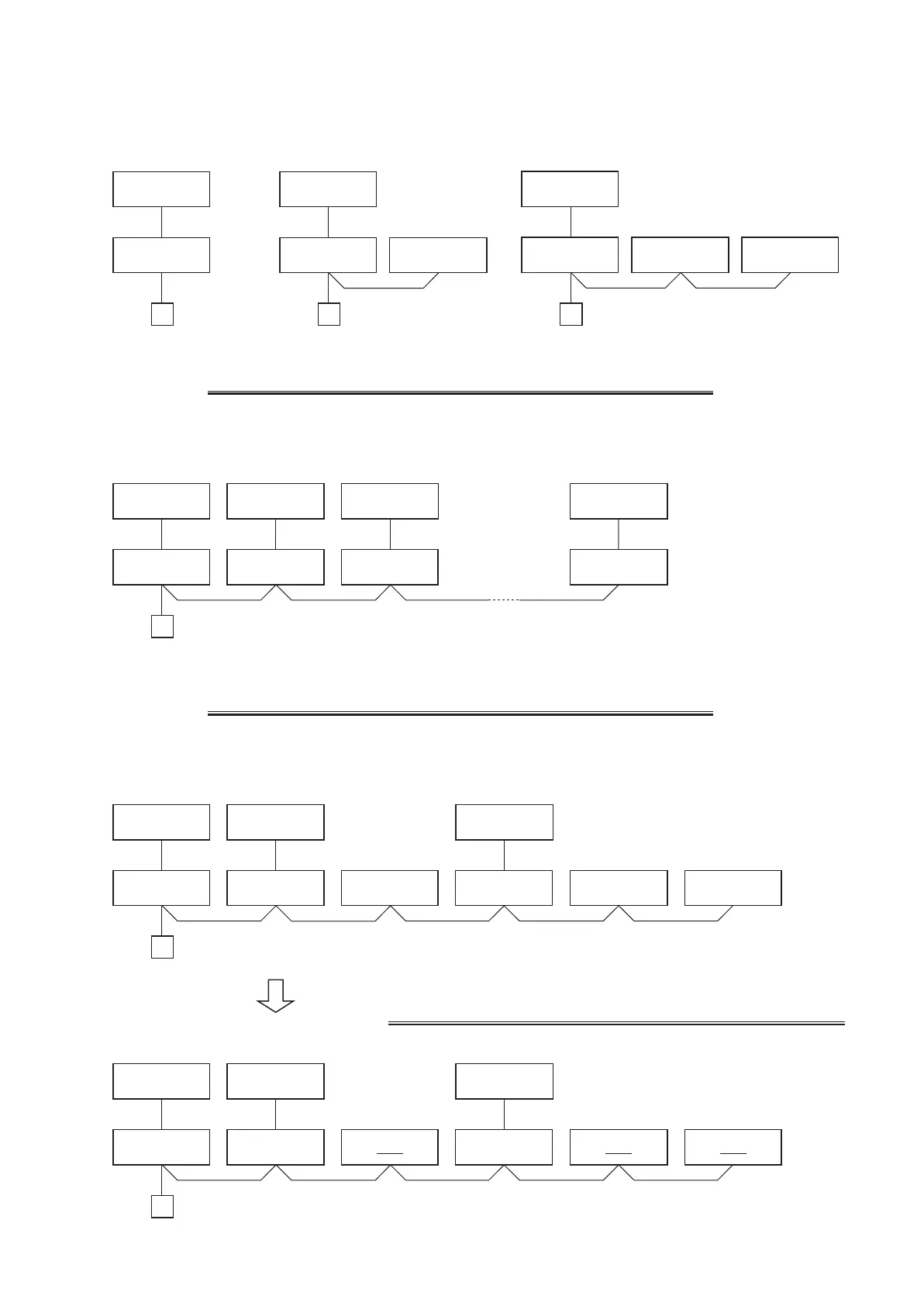

9-2-2. Automatic Address Example from Unset Address (No miswiring)
2-1
Single Twin Triple
1-1 1-2 3-1 3-2 3-3
2-1
Header/Sub
1-1
Header/Sub
3-1
Header/Master
8-1
Header/Sub
2-1
Header/Sub
1-1
Header/Sub
2-3
Follower/Master
3-1
Header/Sub
3-3
Follower/Sub
1-2
Follower/Sub
1-2
Header/Sub
(1-1) (1-2)
(1-3)
1-3
Follower/Master
1-1
Follower/Sub
1-1
Individual
(Header/Master)
1-2
Header/Master
(1-1)
(1-2)
1-1
Follower/Sub
1. Standard (One outdoor unit)
Only turning on source power supply (Automatic completion)
2. Group operation
(Multiple outdoor units = Multiple indoor units with serial communication only, without twin)
Only turning on source power supply (Automatic completion)
3. Multiple groups operation
Change is necessary
Manually change addresses of the multiple sub units
simultaneously from the remote controller.
