Toshiba RAV-HM301MUT-E - Indoor Print Circuit Board

– 46 –

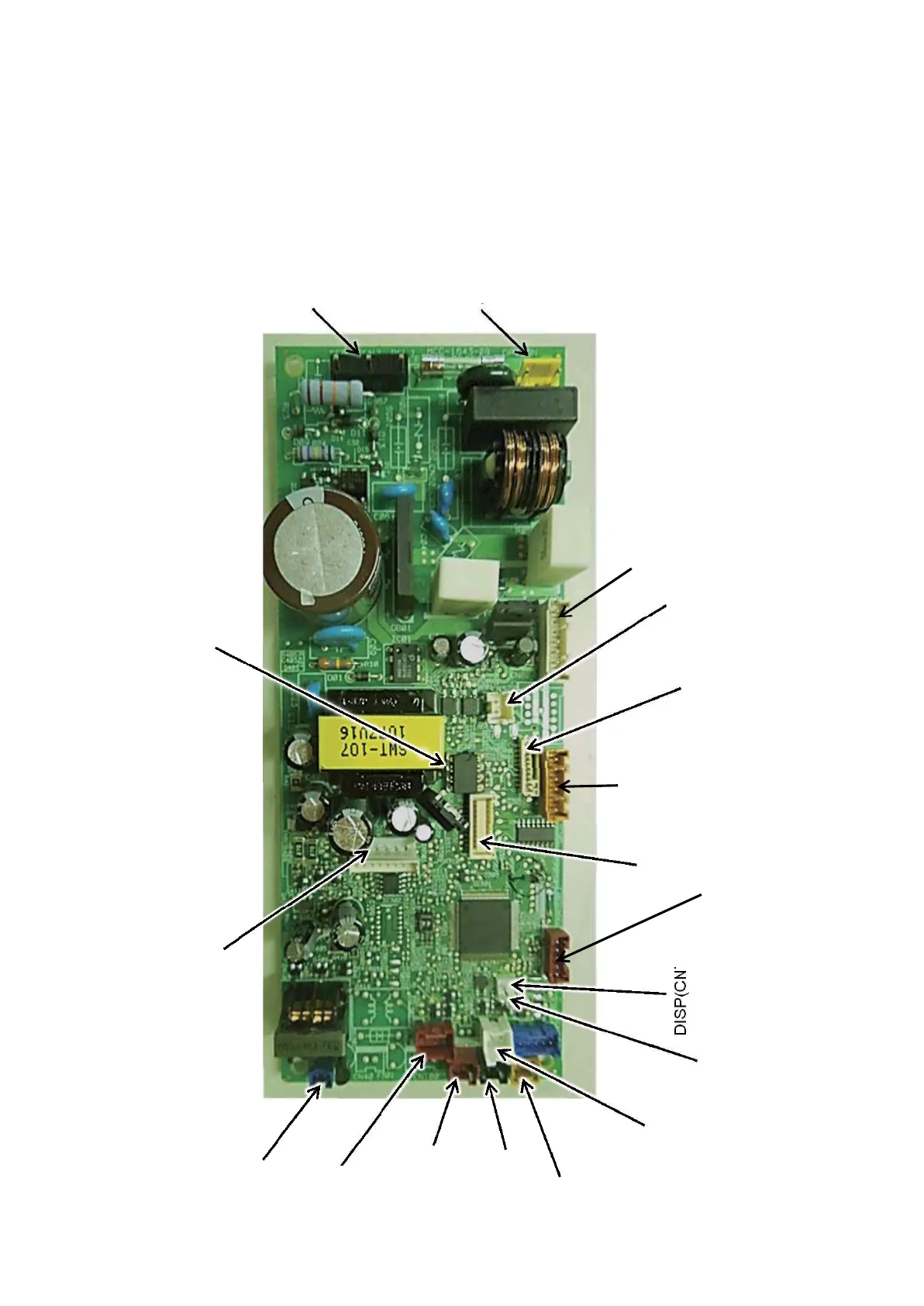

5-3. Indoor Print Circuit Board
<MCC-1643>
Indoor/Outdoor inter-unit cable CN67
DC fan output CN210
Ventilation output CN32
Louver
CN510
Wireless remote control or
Occupancy sensor CN214 (White)
HA CN61
External input/output (UART) CN521
DISP(CN72)
CHK(CN71)
Drain
pump CN504
TA sensor CN104
Remote controller
CN41
Optional power supply (CN309)
EEPROM IC503
“1:1 model” Connection
Interface CN50
Float SW CN34
TC sensor CN101 TCJ sensor CN102
