4 Replacement Procedures 4.12 Display assembly
4 Replacement Procedures
4.12 Display assembly
Removing the Display assembly
To remove the display assembly, follow the steps below and refer to figures 4-19 to 4-21.
1. Turn the computer upside down.
2. Remove the following screws.
• M2.5×16B FLAT HEAD screw ×12 (“16” in the figure below)
• M2.5×6B FLAT HEAD screw ×7 (“6” in the figure below)
• M2.5×3B S-FLAT HEAD screw ×5 (“3” in the figure below)
6
6
6
6
6
6
6
16
16
16
16
1616
16
16
16
16
16
16
3
3
3
3
3

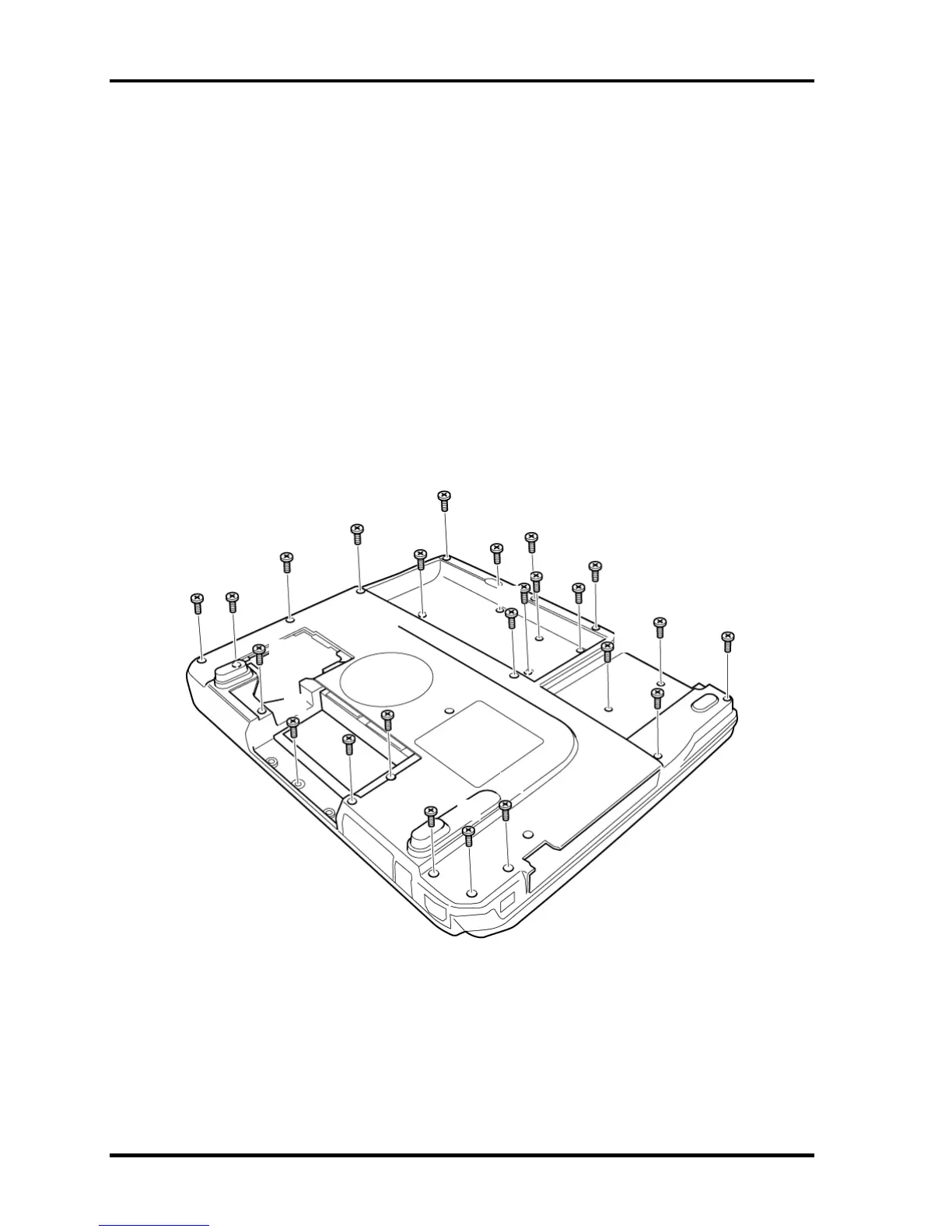

Figure 4-19 Removing the display assembly (1)
4-34 Satellite A40 Maintenance Manual (960-458)
