3. How to set the environments for connecting OPC
54
<5> On “Windows Firewall” window, confirm
whether programs you selected are checked.
And if there isn’t “Microsoft Management
Console” in the list, add “
Microsoft Management
Program” (mmc.exe) under
“\Windows\System32” folder. (Refer to <3>-<4
>)
After adding needful programs, click <Add
Port…>.
<6> On “Add a Port” window, Set the following port
and click <OK>.
Name : DCOM
Port No: 135
Check “TCP”
And add following port likewise.
Name : ToolIf
Port No: 20000
Check “TCP”
<7>Click <OK>.
Windows Firewall setting is completed.

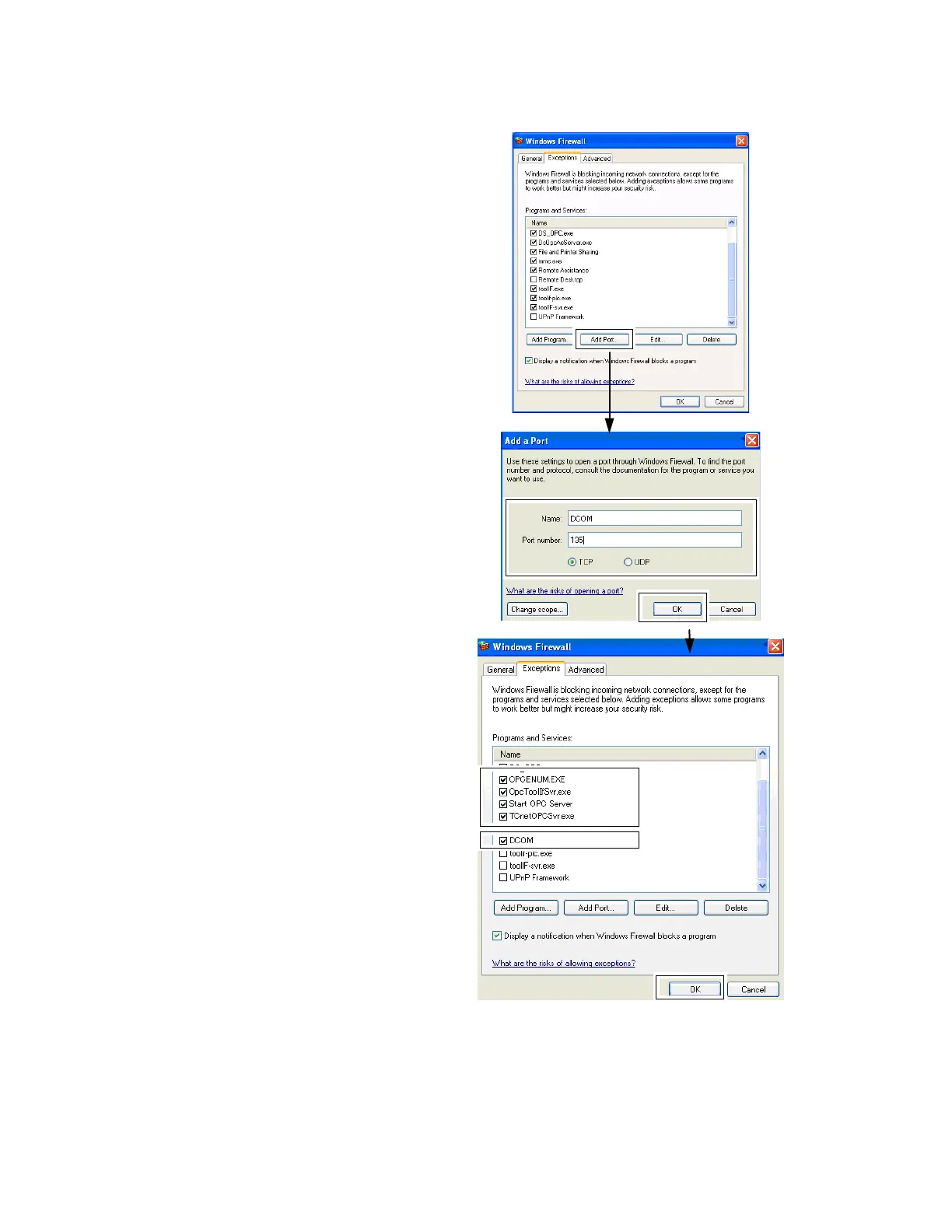

Figure 3.12 Windows Firewall Setting (Windows XP/Windows Server 2003)
