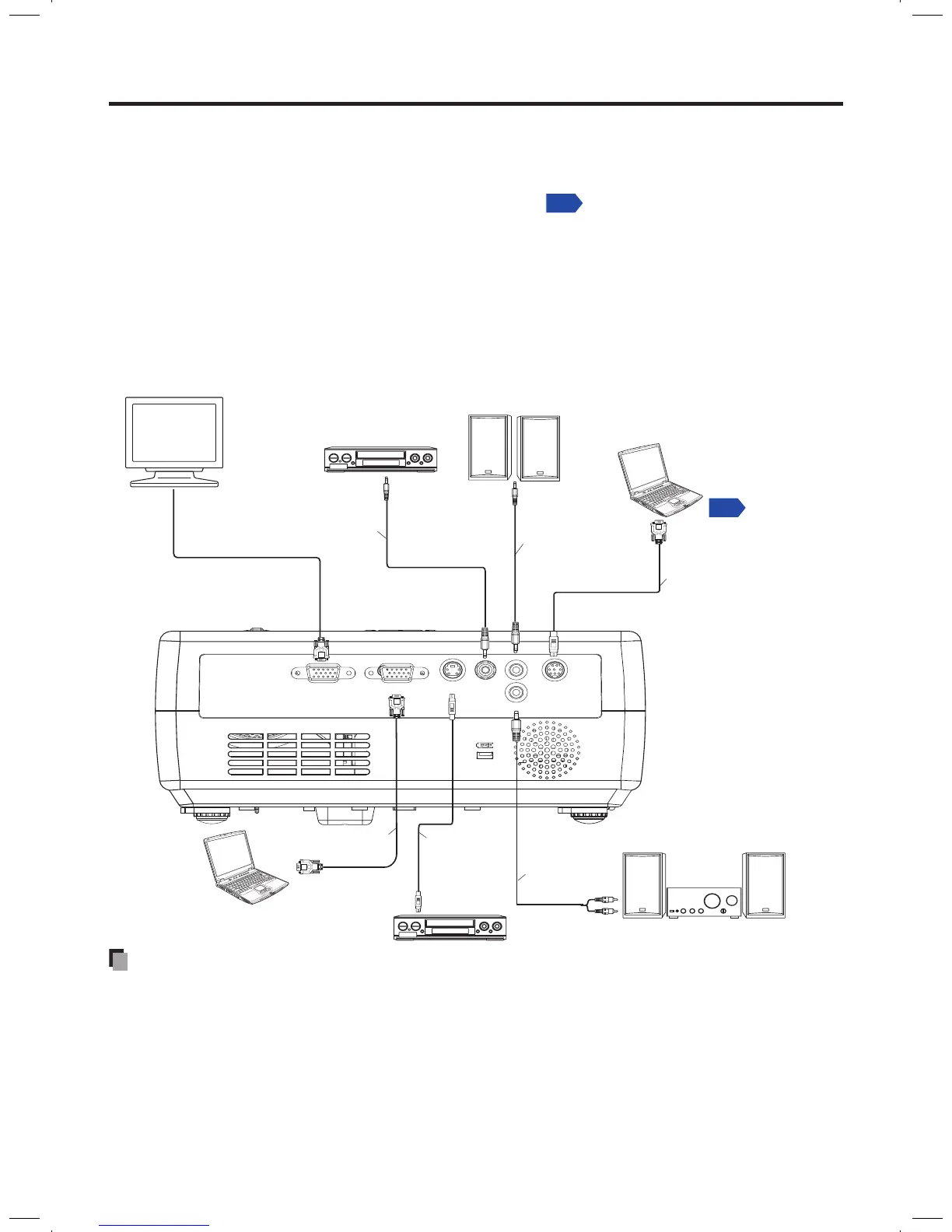

Connection
Before connection
• Read the owner’s manual of the device you are connecting to the projector.
• Some types of computer cannot be used or connected to this projector.
Check for an RGB output terminal, supported signal
p.42
, etc.
• Turn off the power of both devices before connecting.
• The figures are sample connections.
• The MONITOR terminal outputs analog RGB signals or component video signals (Y/PB/
PR) from the COMPUTER IN terminals as selected with the INPUT button. If no input
is selected, the MONITOR terminal outputs the input signals last selected among the
COMPUTER terminals.
• A computer monitor usually cannot accept Y/PB/PR signals correctly.
Notes
• Moving pictures played back on computers using DVD software may appear unnatural if
it is projected with this projector, but it is not a malfunction.
• When an AUDIO OUT terminal is connected, sound is not output from the projector
speaker.
• Output volume of AUDIO OUT terminal can be adjusted by the
VOL button.
S-VIDEO
VIDEO
AUDIO IN
AUDIO OUT
CONTROL
MONITOR
COMPUTER
Computer (for control)
Monitor
To RS-232C
terminal
To audio
input
Audio cable
(not supplied)
Control cable
RGB cable
(supplied)
To RGB output
Computer
To audio output
Audio cable
(not supplied)
AV cable
(not supplied)
AV cable
(not supplied)
To S-video
output
To video
output
p.44
