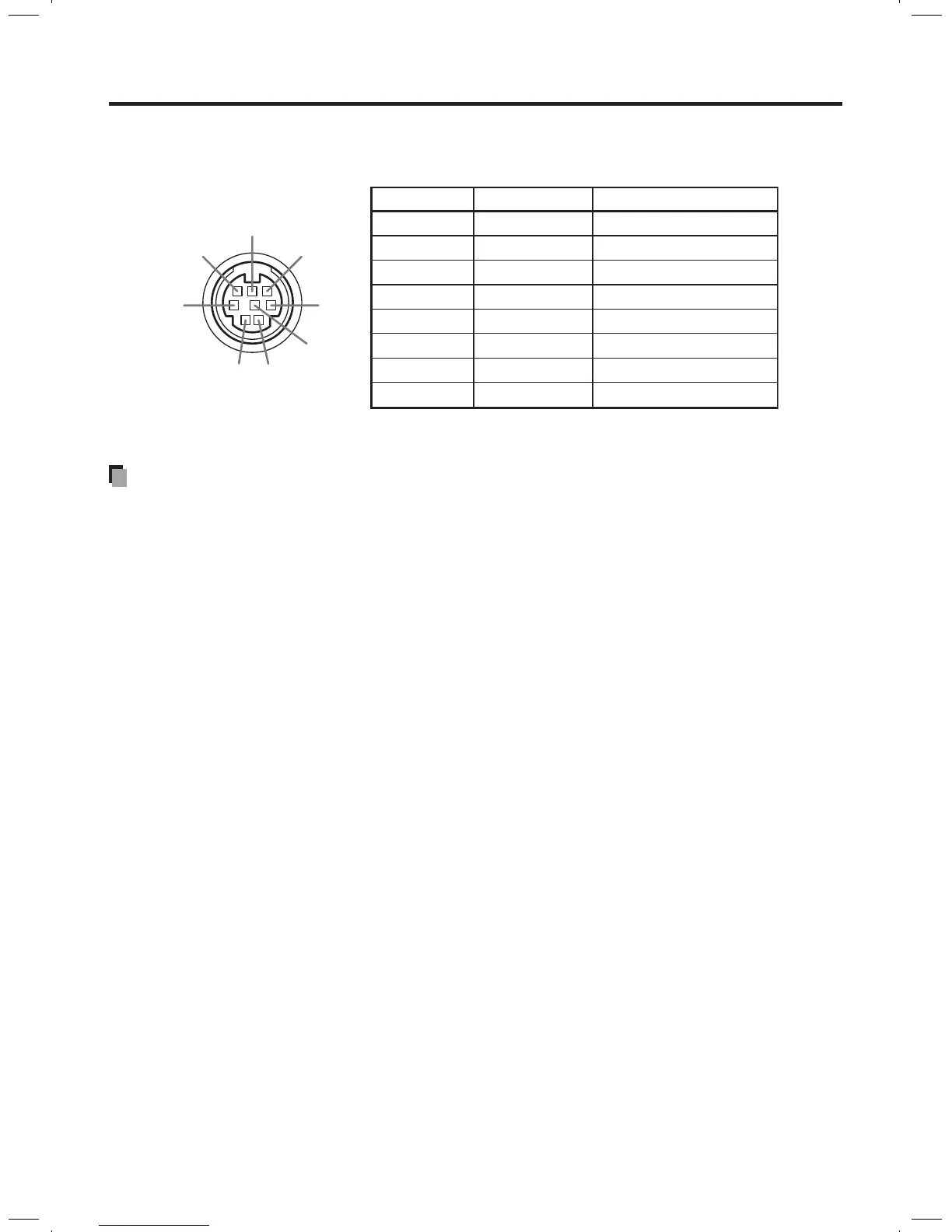

■ CONTROL terminal
● Pin assignment
7
6
8
5
4
3
2
1
Signal Name
RXD
N.C
N.C
GND
N.C
N.C
TXD
GND
Pin No.
1
2
3
4
5
6
7
8
Description
Receiving data
No connection
No connection
Signal ground
No connection
No connection
Sending data
Signal ground
Mini DIN 8 pin connector
Notes
• Contact your dealer for control cable and commands.
