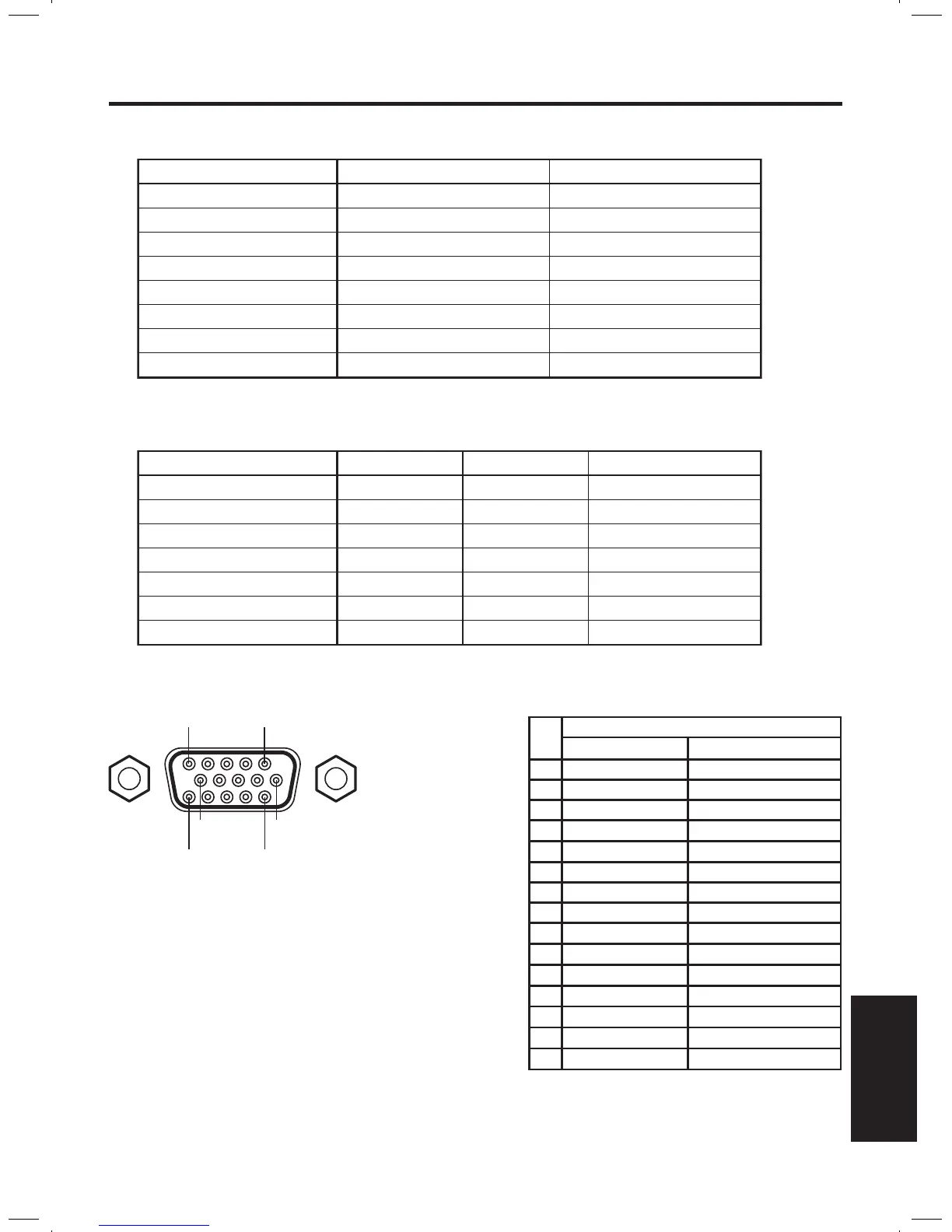

Toshiba TDP TDP-S8 - Supported Y;PB;PR Signals; Supported Video and S-Video Signals; COMPUTER IN & MONITOR Terminals Pin Assignment

43
Others
■ List of supported signals (Y/PB/PR signals)
Signal format fh(kHz) fv(Hz)
480i(525i)@60Hz 15.73 59.94
480p(525p)@60Hz 31.47 59.94
576i(625i)@50Hz 15.63 50.00
576p(625p)@50Hz 31.25 50.00
720p(750p)@60Hz 45.00 60.00
720p(750p)@50Hz 37.50 50.00
1080i(1125i)@60Hz 33.75 60.00
1080i(1125i)@50Hz 28.13 50.00
*
*
■ List of supported signals (Video, S-Video signals)
Video mode fh(kHz) fv(Hz) fsc(MHz)
NTSC 15.73 60 3.58
PAL 15.63 50 4.43
SECAM 15.63 50 4.25 or 4.41
PAL-M 15.73 60 3.58
PAL-N 15.63 50 3.58
PAL-60 15.73 60 4.43
NTSC4.43 15.73 60 4.43
■ Pin assignment of COMPUTER IN & MONITOR terminals
1115
6
15
10
Input Signal
• RGB input
RGB signals: 0.7V (p-p) 75
Ω
Horizontal sync signal : TTL level (Pos/neg polarity)
Vertical sync signal: TTL level (Pos/neg polarity)
• Y/P
B/PR input
Y signal: 1.0V (p-p) 75
Ω
P
B/PR signals: 0.7V (p-p) 75 Ω
Mini D sub 15 Pin connector
Pin
No.
Pin description
During RGB input During Y/PB/PR input
1 Video signal (R) Color difference signal (PR)
2 Video signal (G) Luminance signal (Y)
3 Video signal (B) Color difference signal (PB)
4 N.C
∗
5 GND
∗
6 GND (R) GND (PR)
7 GND (G) GND (Y)
8 GND (B) GND (PB)
9 +5V
∗
10 GND
∗
11 N.C
∗
12 SDA
∗
13 Horizontal sync signal
∗
14 Vertical sync signal
∗
15 SCL
∗
∗ Do not connect anything.
