Appendix 1. Ethernet Control LAN Network Construction Guide
22
FOMAU TRTRTRTRTRTRTR
RPRPRPRP
Station
500m500m500m500m500m
Link Segment
(Optical Fiber)
Link Segment
(Optical Fiber)
Cable
Segment
Cable
Segment
Cable
Segment
Stations cannot
be connected
Stations cannot
be connected
Maximum 2500m
Optical Repeate
r
Optical RepeaterOptical Repeate
r
Optical Repeater
Station
Station
FOMAU FOMAU FOMAU

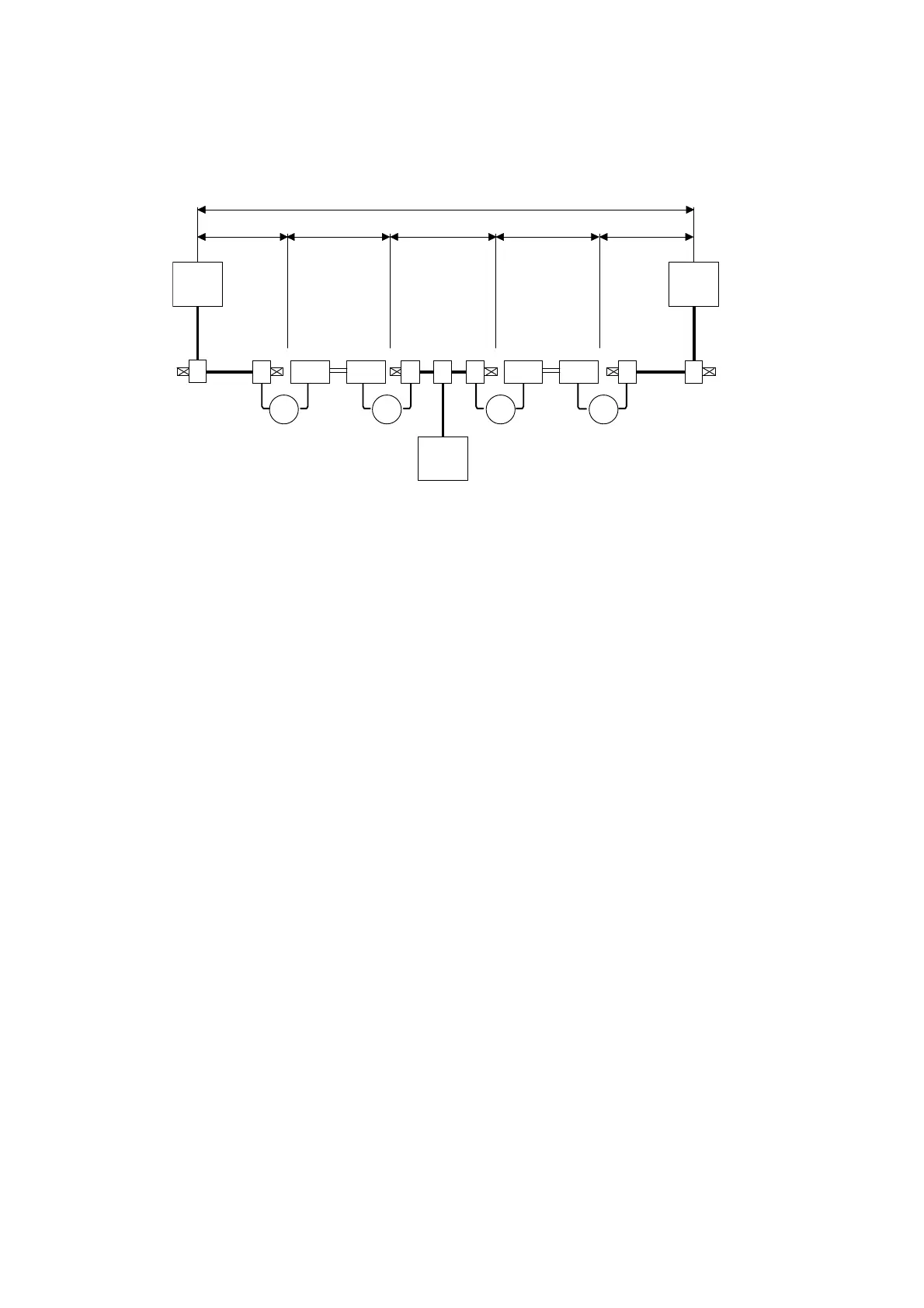

Figure A1.3 An Example of Network Configuration with Optical Fiber Cables
