Toshiba Tosvert VF-S15 - How to Use the PZD1 to 6

E6582051
- 36 -
6.4.
How to use the PZD1 to 6
The purposes are adjustment by real time command transmission, and the monitor of an operation state
by using cyclic communication of PROFINET.

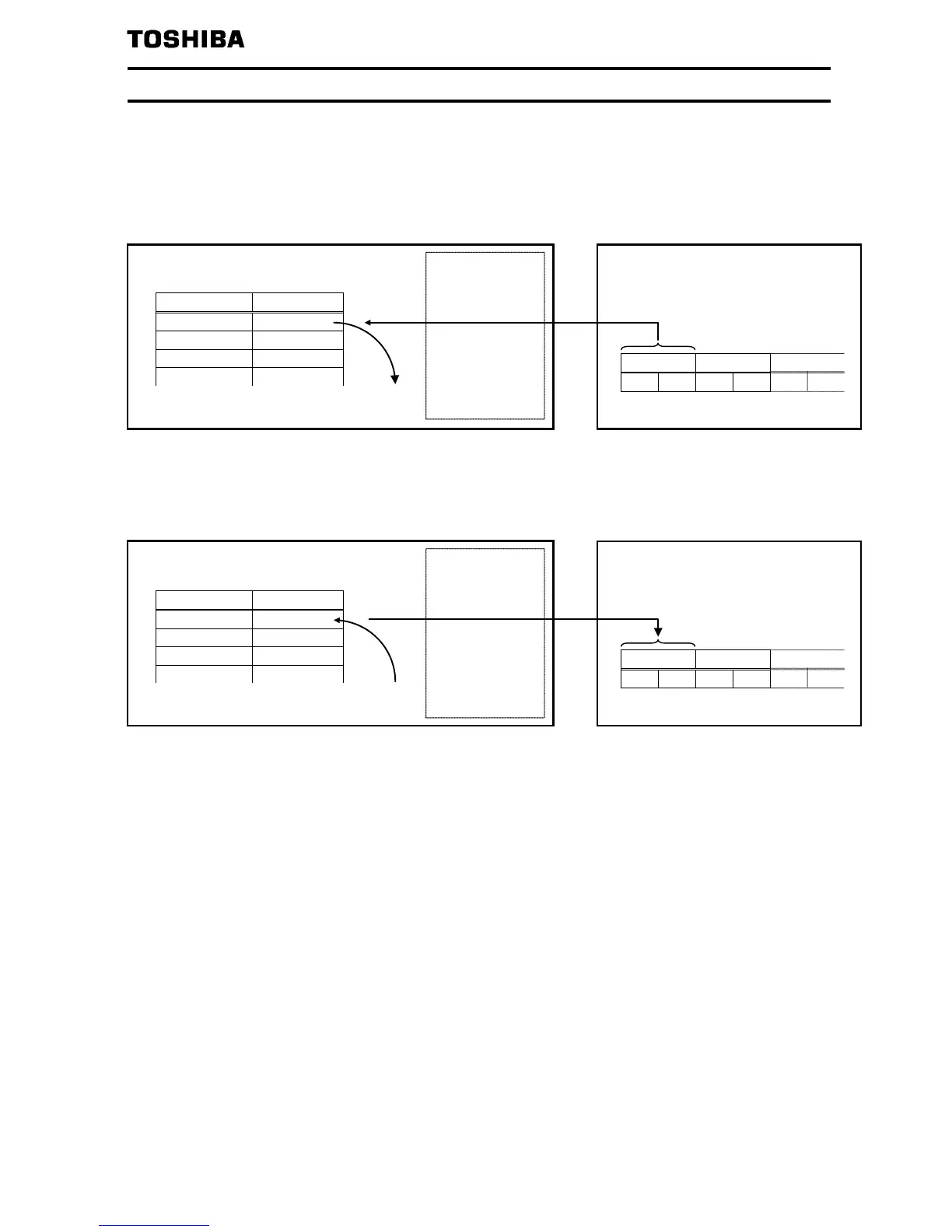

Example 1: Command transmitting
When you want to set "0xC400" to parameter
fa06
, set “1 (
fa06
)” to parameter
c001
.
And Since 0 and 1 byte of the PZD1 supports the parameter
c001
, if "0xC400" is set up here, "0xC400"
will be set as
fa06
.
Example 2: State monitoring
When you want to monitor the output current, set “3 (FD03)” to parameter
c021
.
The value of the parameter
fd03
specified as 0 and1 byte of the PZD1 with the parameter
c021
is
inputted.
VF-S15/AS3
PNE001Z
"0xC400" is set as parameter fa06
PZD1
PZD2
PZD3
C4
00
...
...
...
...
PROFINET Master
Parameter
Value
c001
1 (
fa06
)
c002
...
c003
...
...
...
Parameter
Value
c021
3 (
fd03
)
c022
...
c023
...
...
...
The value of a parameter fd03 is outputted.
VF-S15/AS3
PNE001Z
PZD1
PZD2
PZD3
xx
xx
...
...
...
...
PROFINET Master
