Notes:

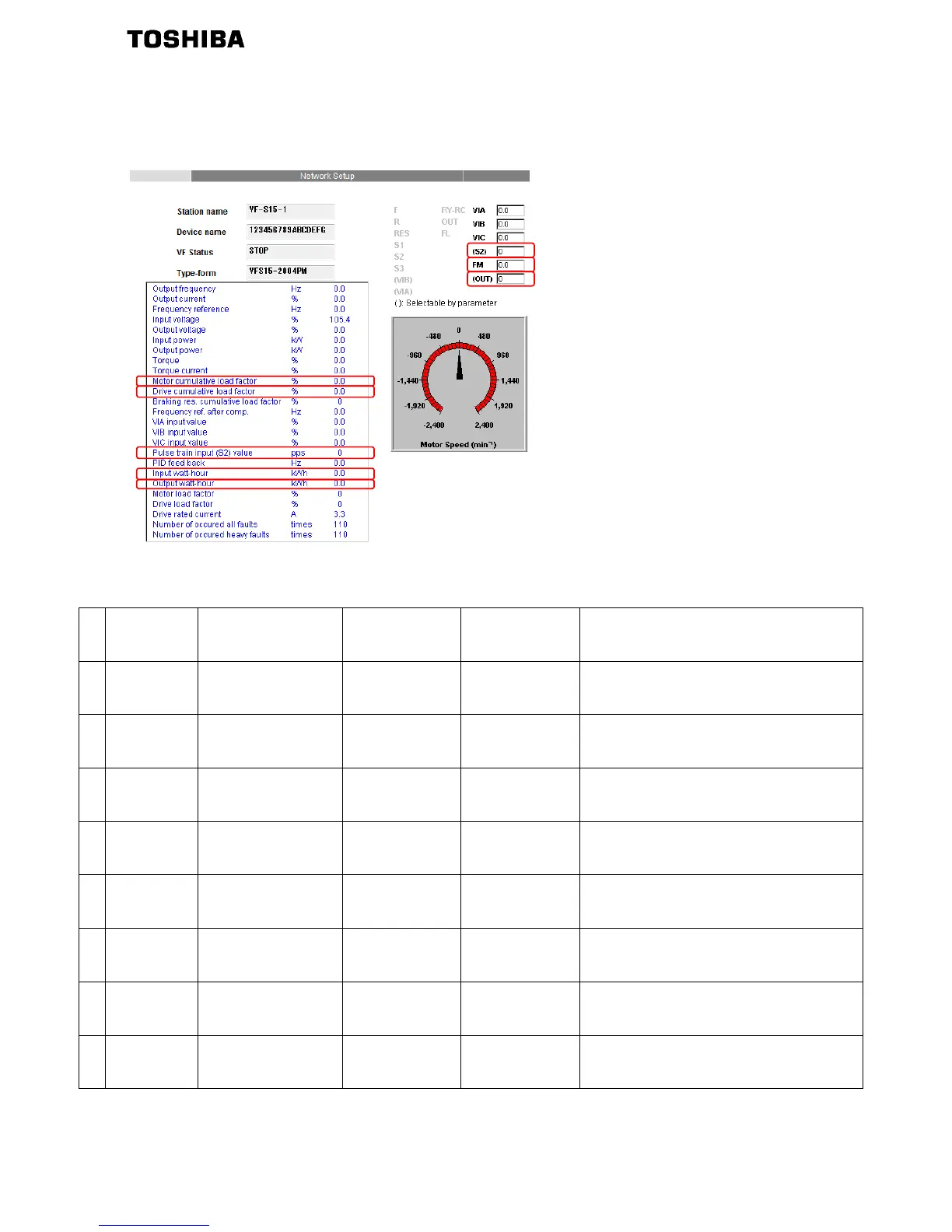

There are problems of display on the Drive Monitor in PNE001Z (no suffix).
These problems are corrected in PNE001Z-1.
①
②
④
⑤
③
⑥
⑦
⑧
Display title
Problem
Example of the
display
(Wrong data)
Example of the
display
(Correct data)
Countermeasures
①
Motor
cumulative
load factor
The value is
displayed in 1/10
times
6.8
67.9
Please calculate the value at 10 times
②
Drive
cumulative
load factor
The value is not
displayed
correctly
1.3
45.7
About Inverter cumulative load factor(%) ,
please check the information by the key
pad etc.
③
Pulse train
input (S2)
value
The value is
displayed in 1000
times
1920
1.9
Please calculate the value at 1/1000
times
④
Input
watt-hour
The value is
displayed in 1/10
times
1.2
12.3
Please calculate the value at 10 times
⑤
Output
watt-hour
The value is
displayed in 1/10
times
3.2
32.1
Please calculate the value at 10 times
⑥
（S2）
The value is not
displayed
correctly
0.0
1920
About Pulse train input value (pps) ,
please check the information by the key
pad etc.
⑦
FM
The value is not
displayed
correctly
97.0
97.6
About FM output value (%) , please
check the information by the key pad etc.
⑧
（OUT）
The value is not
displayed
correctly
9.0
9.9
About Pulse train output value (pps) ,
please check the information by the key
pad etc.
There is a problem in the display of the above ① - ⑧.
The following table shows an example of the display and countermeasures.
