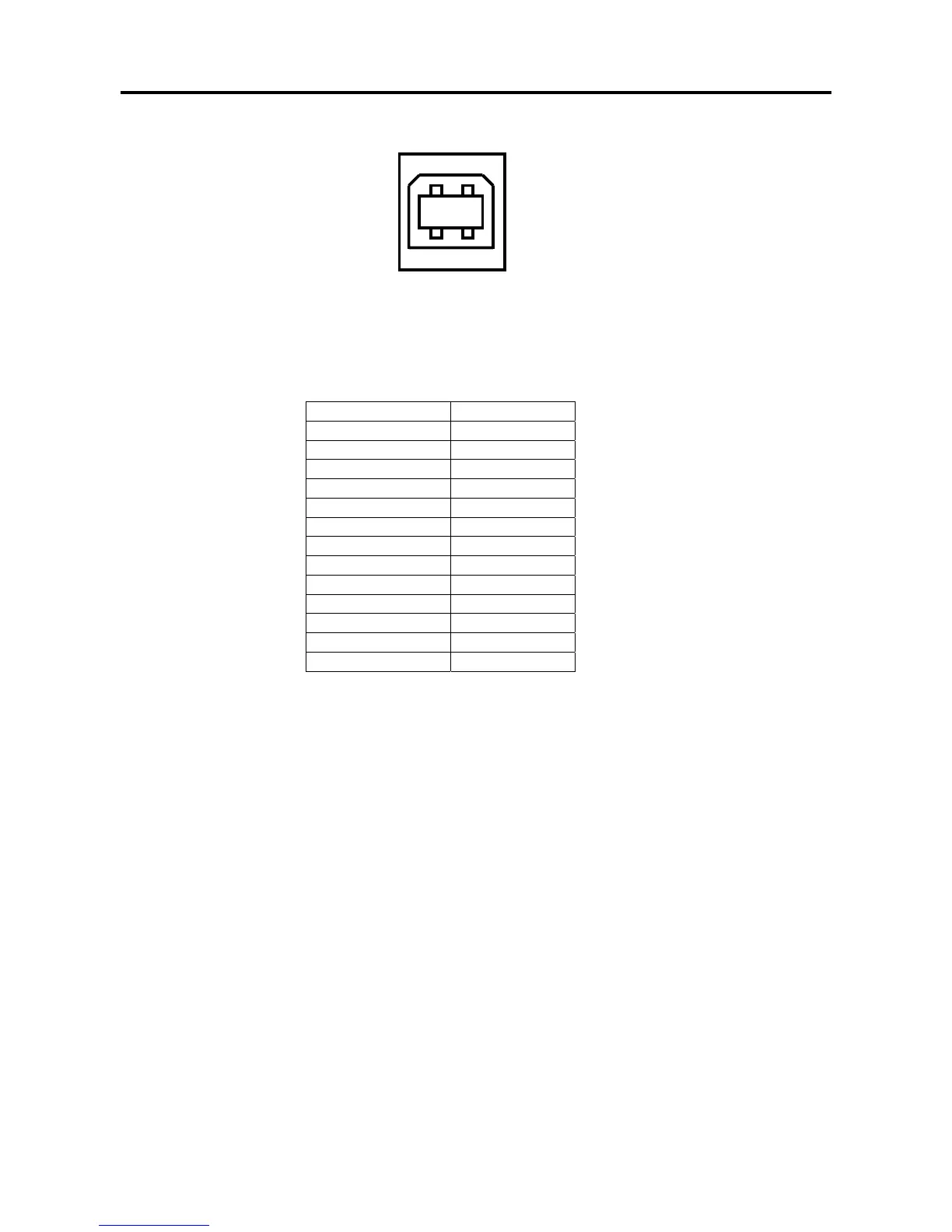

4. SET UP PROCEDURE
4.1 Requirements for Operation
4-3
EO1-13021
USB cable connector
Parallel Interface Type (Option)
IEEE 1284-B receptacle
PIN No. Signal
1 /STROBE
2-9 PD1-8
10 /ACK
11 BUSY
12 PERROR
13 SELECT
14 /AUTOFD
31 /INIT
32 /FAULT
36 /SELECTIN
19-30 GND
15-18 N.C.
33-35 N.C.
