Toshiba V Series - Ethernet Link Speed and Duplex Setting

44 model 3000 Ethernet Module / DS Connection Module Operation Manual
Chapter 3 Setting
3
3.2.8 Ethernet link speed and duplex setting
Link speed and duplex are set to "Auto" at initial setting; they are configured properly by
auto-negotiation. But if auto-negotiation is not worked properly, this parameter can fix link
speed and duplex. The configurable pair is as follows. (This parameter is valid for EN751,
EN751A and EN761 only.)
• Auto (default)
• 10M half duplex
• 10M full duplex
• 100M half duplex
• 100M full duplex

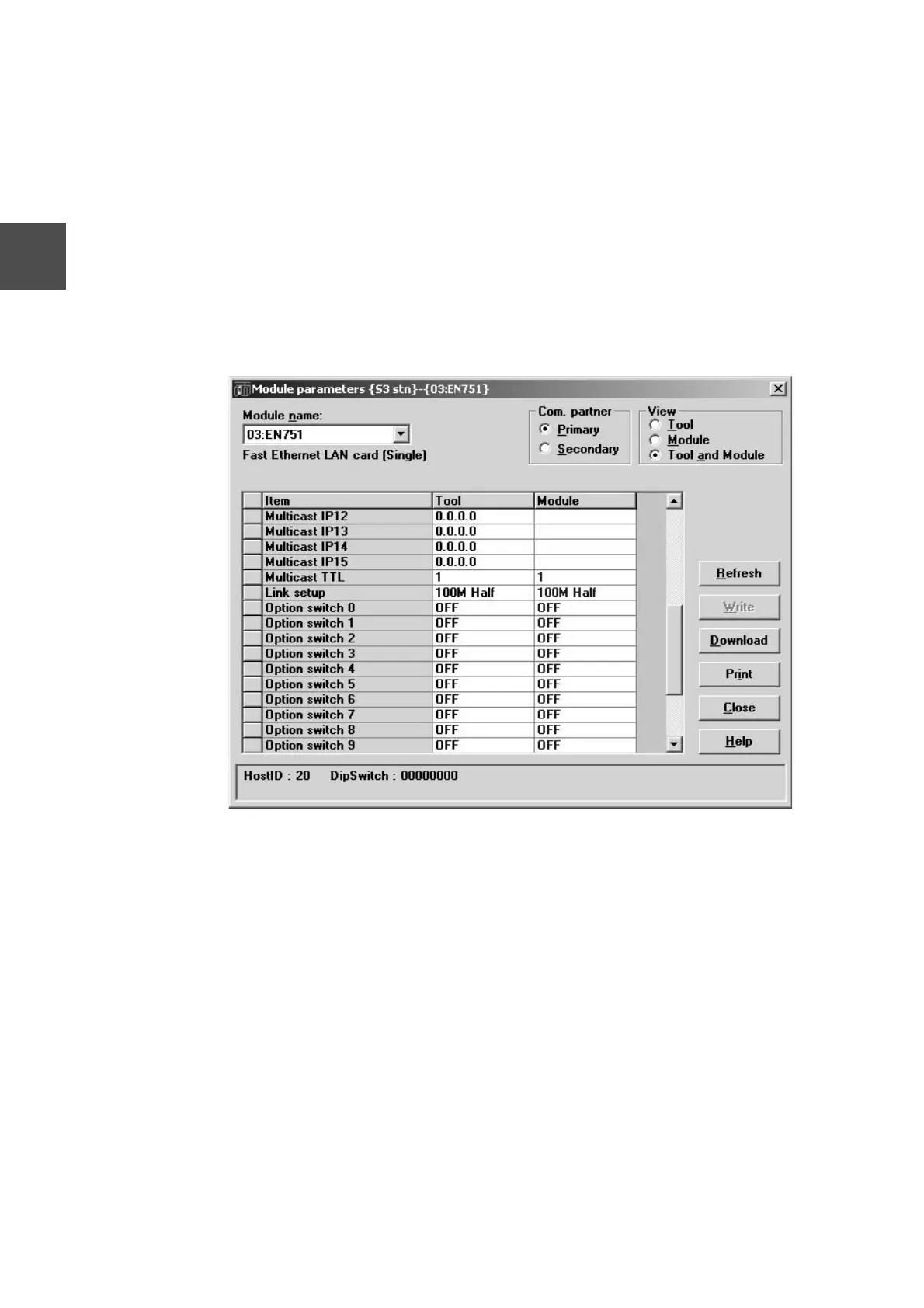

The setting example of 100M half duplex is shown below.
