6F8C0904 25
3.4 Connecting to the Network
3
(2) Connecting to 10BASE2 Network
This section describes the connecting procedure starting from the state where the
10BASE2 coaxial cable, the MAU, and the AUI cable are already supplied and ready
to be connected. See section 9.4, "Network Wiring", for details on wiring the
10BASE2 coaxial cable.

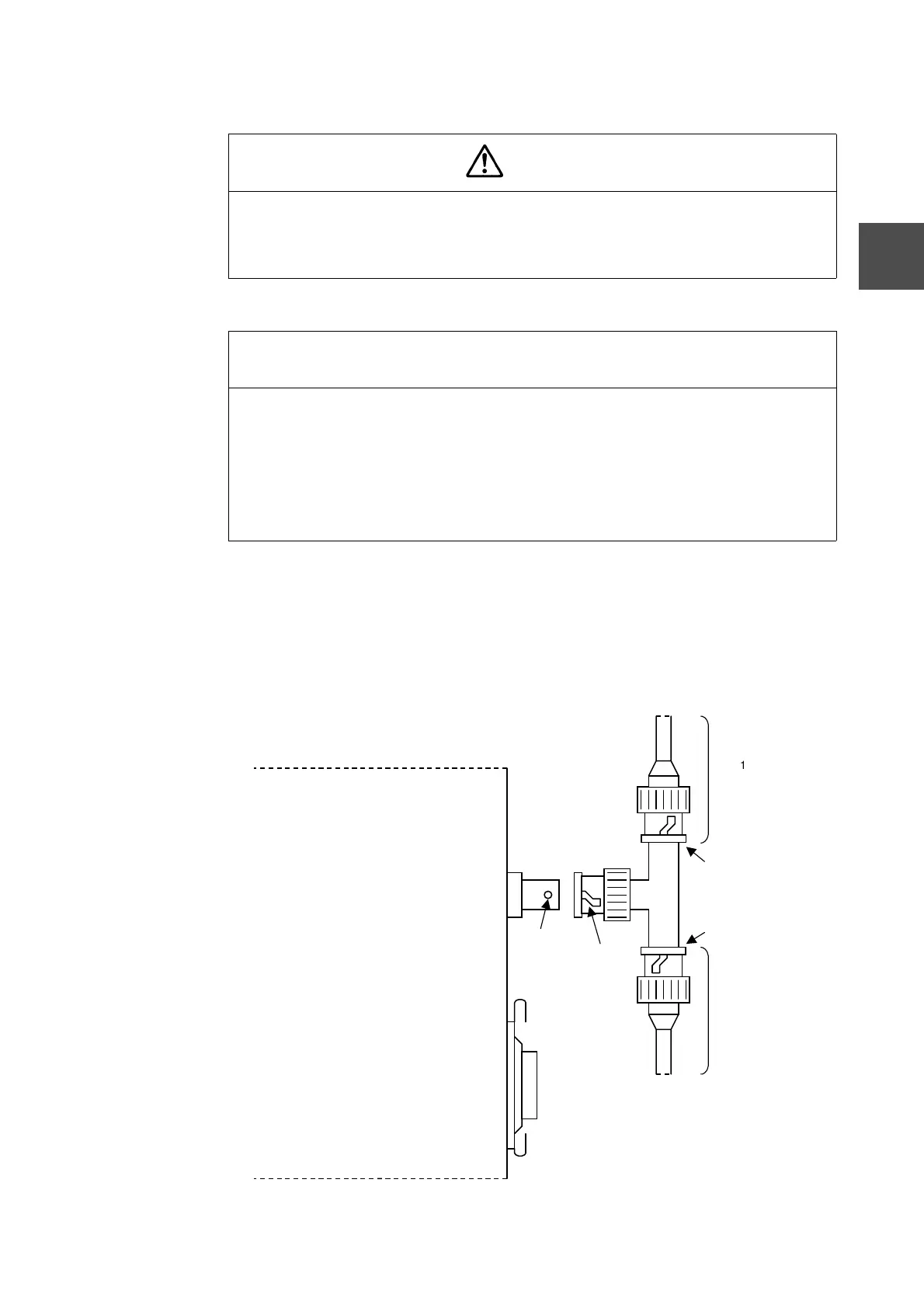

Figure 3-5 10BASE2 Coaxial Cable Connection
Caution
• When installing a 10BASE5 or 10BASE2 network, the cabling must be handled with ade-
quate safety precautions and in accordance with all applicable standards. A qualified profes-
sional should perform installation and wiring.
See the "ISO/IEC 8802-3" standard for installation environment standards.
Usage Recommendations
• Do not exceed the maximum number of MAUs (100) or the maximum cable length (500 m) in
systems using 10BASE5.
• Adjacent MAUs must be mounted at least 2.5 meters apart in systems using 10BASE5.
• The AUI cable length must not exceed 50 meters in systems using 10BASE5.
• An MAU and an AUI cable are required in systems configured using a 10BASE5 network.
(See section 3.6, "Network Wiring Equipment")
These parts must be ordered separately if necessary.
EN311
Protrusion
10BASE2
coaxial cable
10BASE2
coaxial cable
Groove
(1)
(2)
To Next Page
