4.2 Registering the EN311
4
4.2 Registering the EN311
This section describes how to register the EN311 when it is connected to and used with
the S controller.
There are some actual examples in the following sections. It is assumed that
System(EN311TST) folder, Station(EN311TST) folder, and Controller(S3-TEST) folder
are allocated within the engineering tool beforehand.
For the details of folder allocations, refer to the engineering tool documentation.
(1) Starting the registration

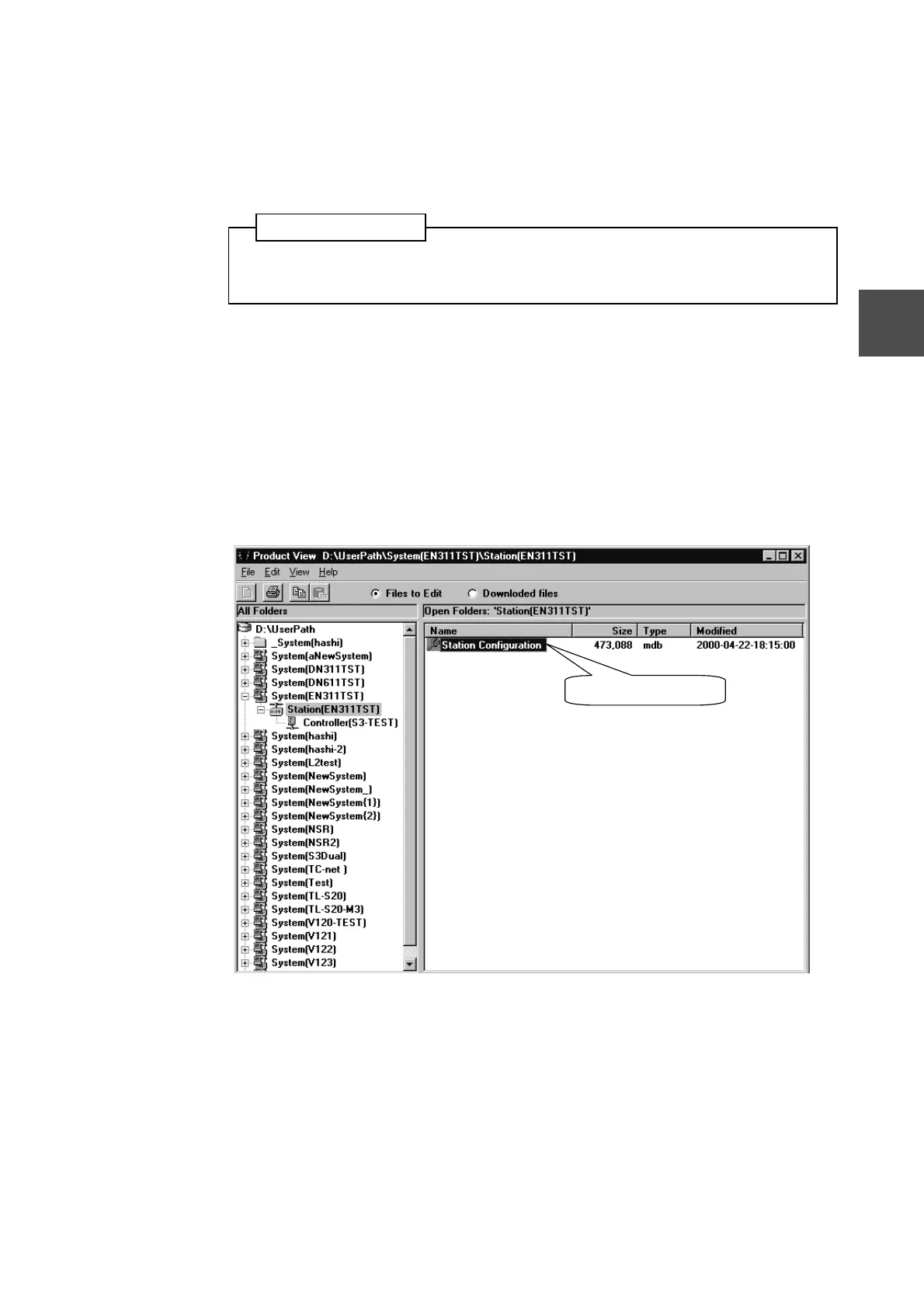

Select "Station(EN311TST)" from the "Product View" of the engineering tool, then
double-click "Station Configuration" on the file list shown right. Then the
Configuration Editor starts and "Hardware Configuration" screen appears.
It is assumed that the main unit has been selected.
Main Unit ••• BU742 : model 3000 Main Unit (Single)
Station Bus: 2 slots, G3-I/O: 9 slots
Supplemental Remarks
• Before registering the EN311, you should register the system, station, and controller folders
of the target with the engineering tool.
• You should register the EN311 before writing any programs using the EN311.
Double-click here
