3.3.2 Setting the scan talker blocks
Set the scan talker blocks from the product tree.
Select the [Talker blocks] of the TC-net 100LAN, and then select [Talker
Blocks] from the menu bar.

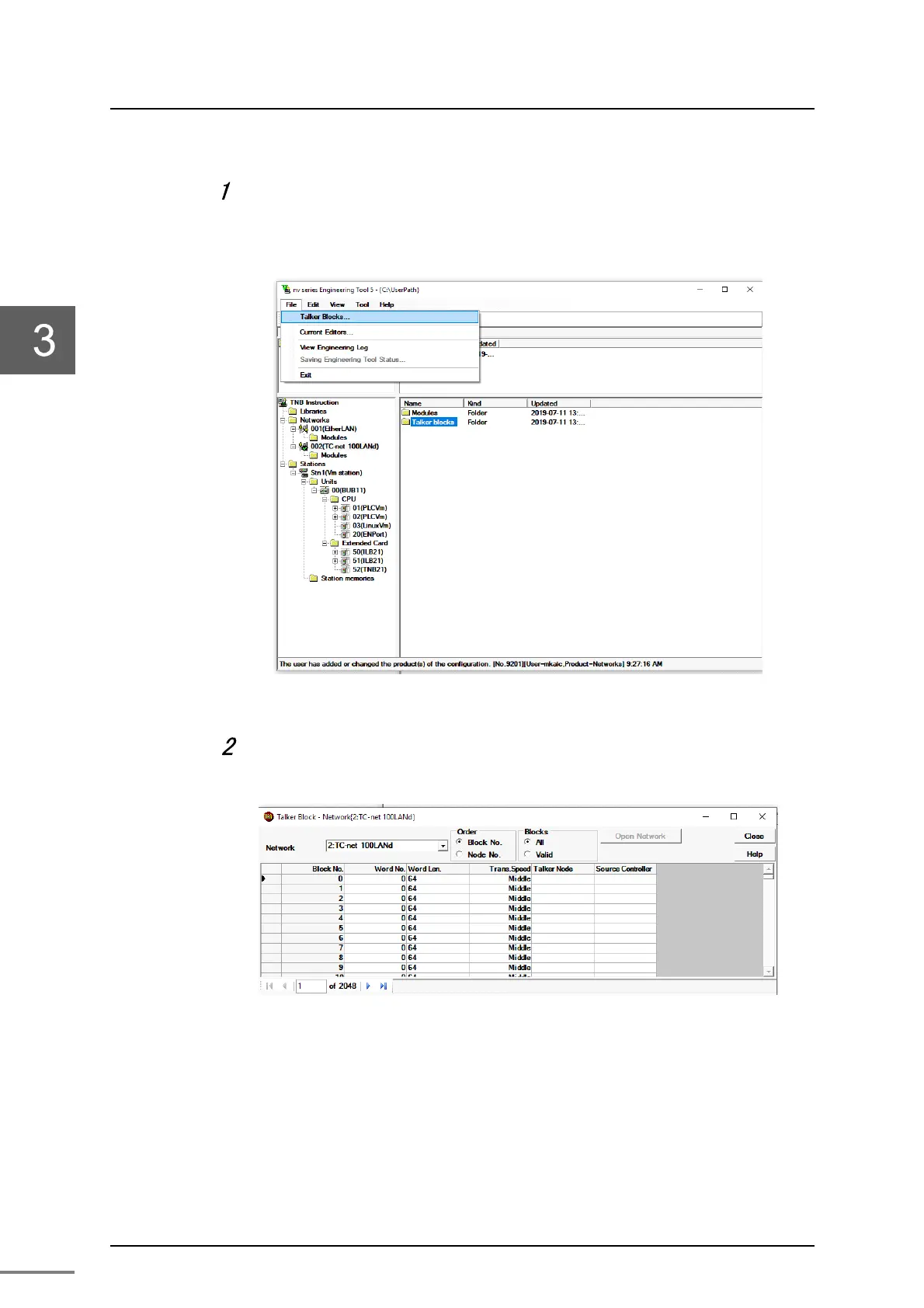

Figure 3-17 Scan talker blocks reading screen
Register each of the blocks.
Register each of the blocks.
Figure 3-18 scan talker blocks setting screen
Block No.: Indicates the scan sending block number.
Word No.: Specify the starting word number used in the block.
Word length: Specify the number of words used in the block.
Transmission speed: Specify the transmission speed of the block in High,
Medium, or Low. The maximum number of items
