with each of the transmission speeds are High: 64,
Medium: 128, and Low: 384.
Talker Node: Specify the transmission module that sends the block.
Source controller: Specify the controller that uses the block.
Specify the source of the block, in PLC or Linux from
CPU,
or TNB from extended card, that is in the controller unit.

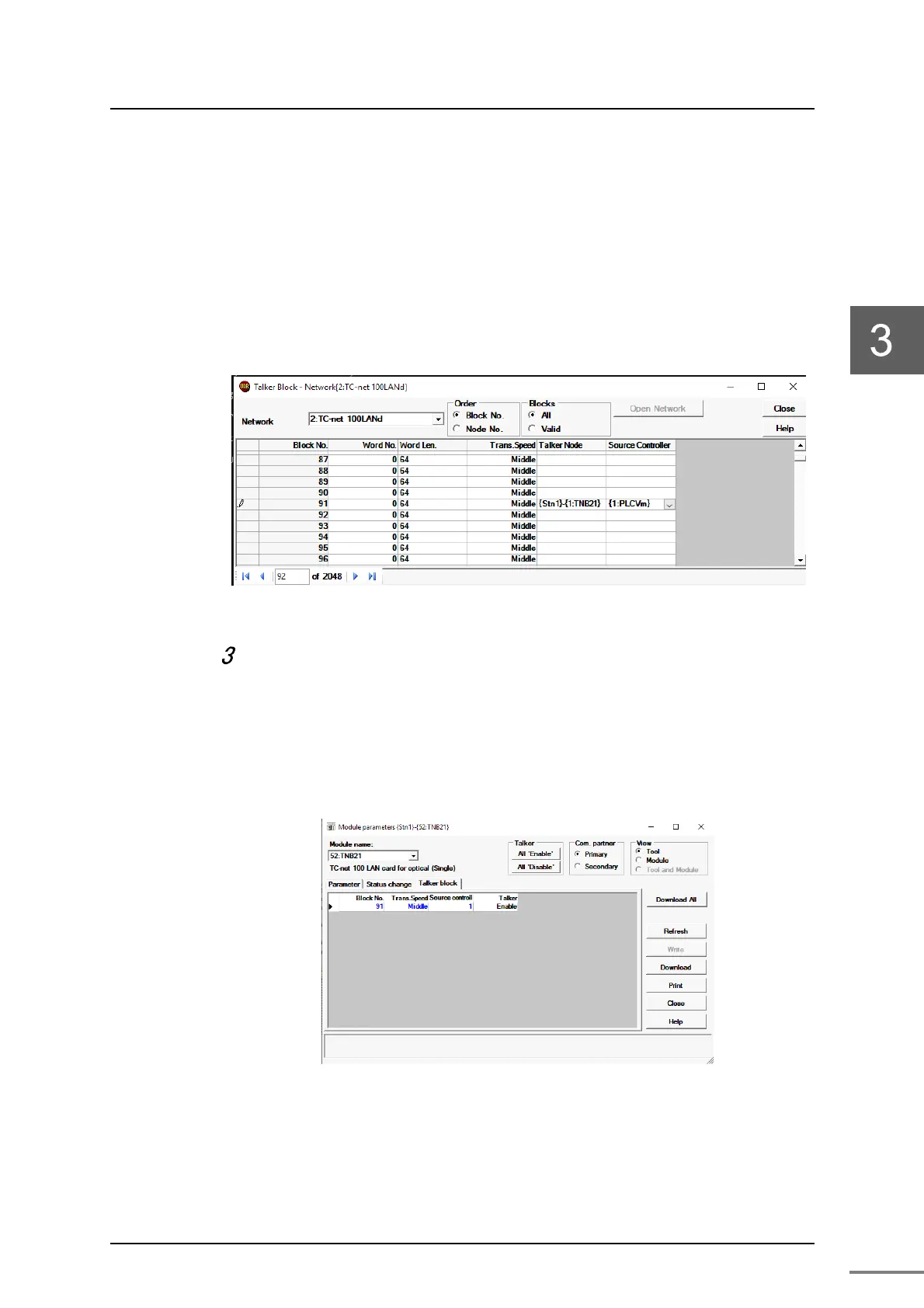

Figure 3-19 An example of scan talker block registration
Check the setting of the scan talker blocks.
Open the module parameter screen of the TNB, and select the [Talker
block] tab.
The transmission speed and information about the slot in which the output
controller using the block are displayed for the registered scan talker block.
Figure 3-20 Parameter screen of talker blocks
