Disassembly and Assembly of external casing
Assemble the unit in the reverse
procedures of disassembly.
4.2 Indoor Unit
4.2.1 Duct Type
Removal and Assembly of Fan Motor
Remarks: Before removing the fan, make sure to cut off the power firstly.

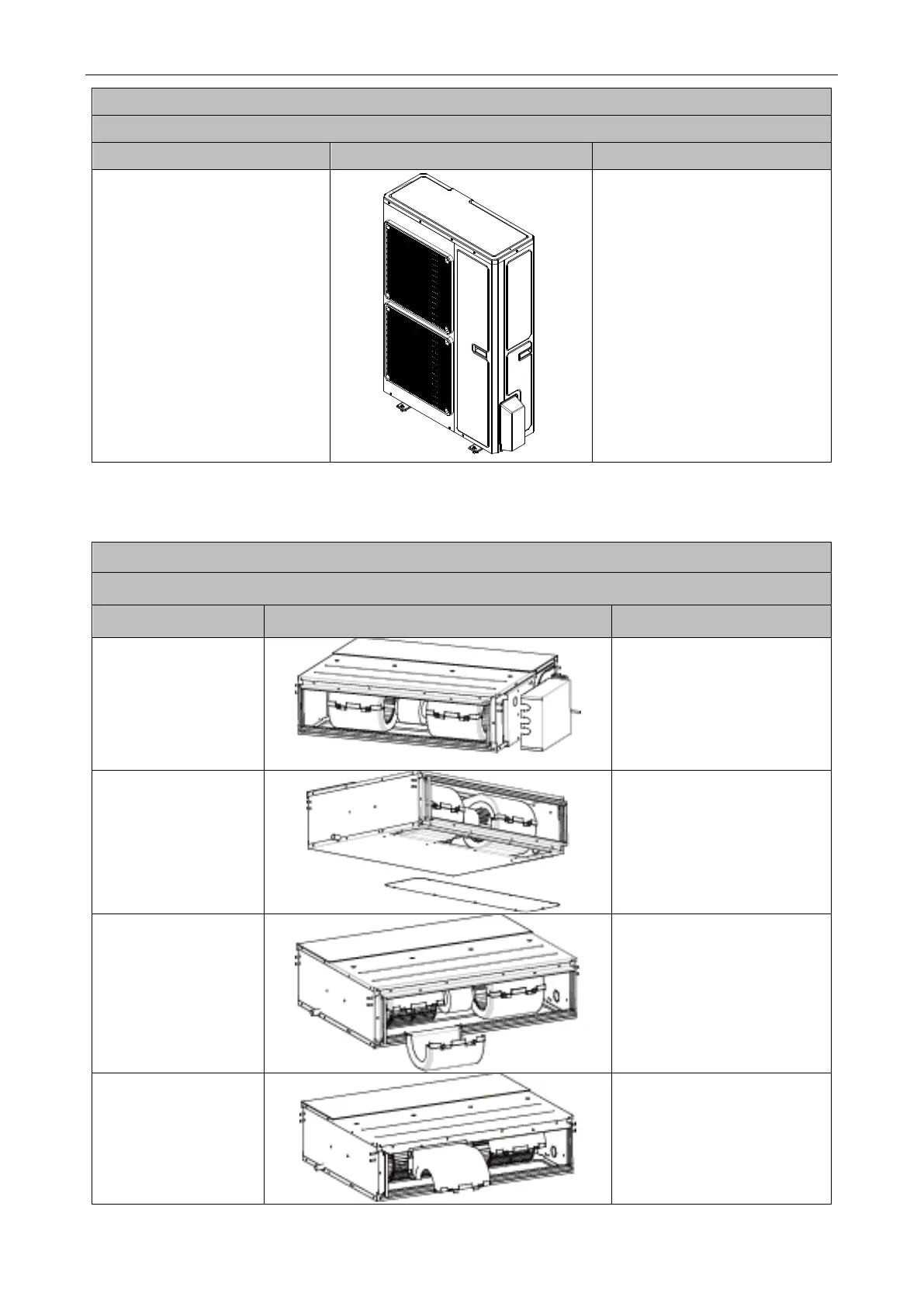

1. Unplug the motor cables
Cut off the power supply of indoor
unit. Use screwdriver to remove the
electric box cover and unplug the
motor cables in electric box.
2. Remove the filter
sub-assembly and air
inlet cover board
Remove the filter sub-assembly
from the air inlet frame and use
screwdriver to remove the air inlet
cover board.
3..Remove the screws on
fan sub-assembly.
Remove the screws on fan
sub-assembly.
4. Overturn the propeller
housing
Rotate the propeller housing to the
air inlet according to arrow direction.
