5.2 Indoor Unit
Duct Type

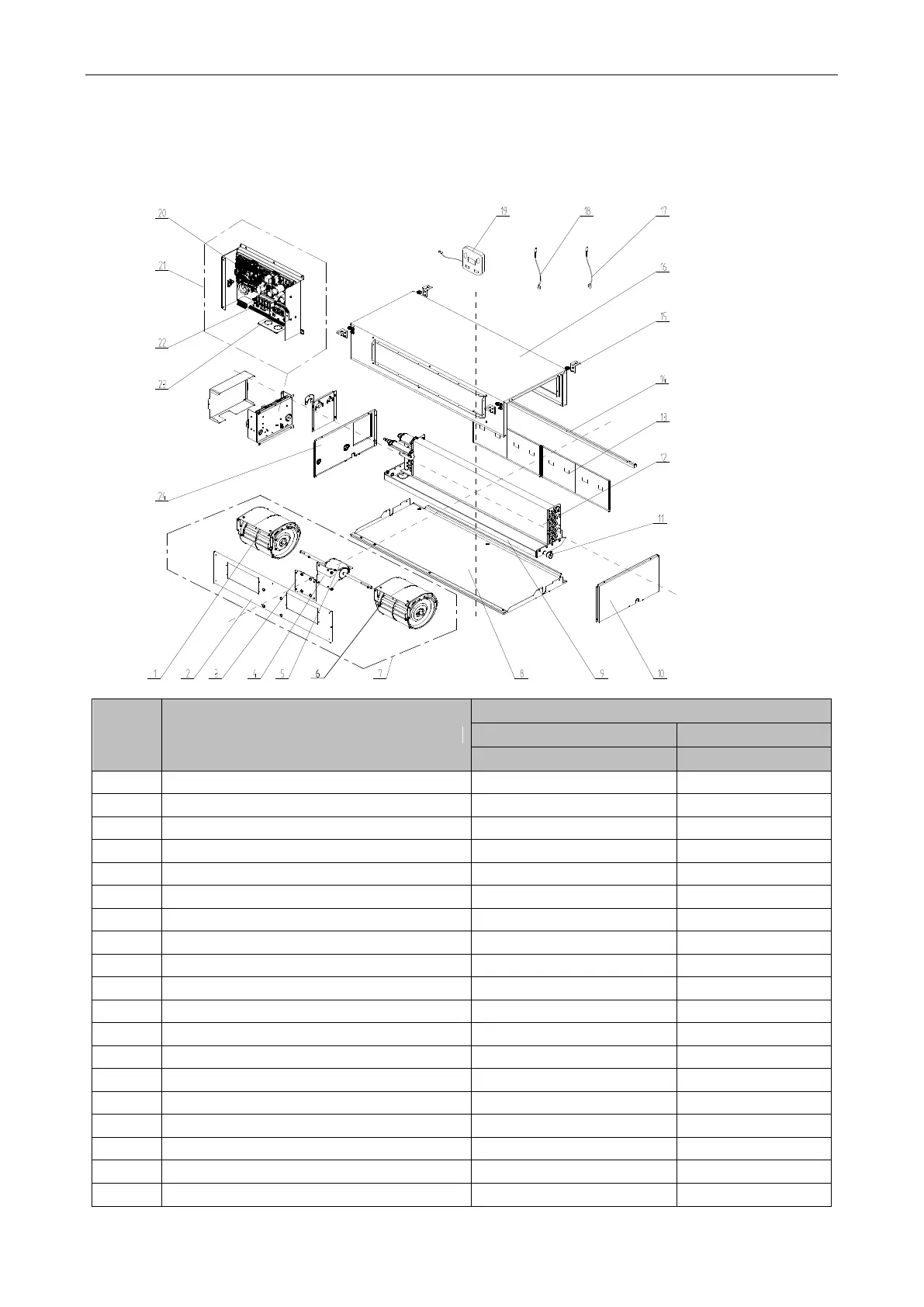

Model: TUH18D3F2I-1 exploded view and spare parts list
No.
Name of Part
TUH18D3F2I-1
Product Code
CF022N0980
Part Code
Quantity
1
Blower
15012454
1
2
Blower Mounting Plate Sub-Assy
01325200039
1
3
Support Sub-assy
01805200164
1
4
Supporter
01804100140
1
5
Brushless DC Motor
15705200006
1
6
Blower
15012458
1
7
Centrifugal fan assy
15405200029
1
8
Lower Cover Plate Sub-Assy
01265304
1
9
Water Tray Assy
01285317
1
10
Left Side Plate Assy
01314155
1
11
Choke Plug of Drain Pipe
76712455
1
12
Evaporator Assy
01025200050
1
13
Filter Sub-Assy
11125303
2
14
filter guide groove sub-assy
02285301
1
15
Hook
02112446
4
16
Top Cover Board Assy
01265226
1
17
Tube sensor
3900012128
1
18
Ambient Temperature Sensor
3900012123
1
19
Display Board
30294000007
1
