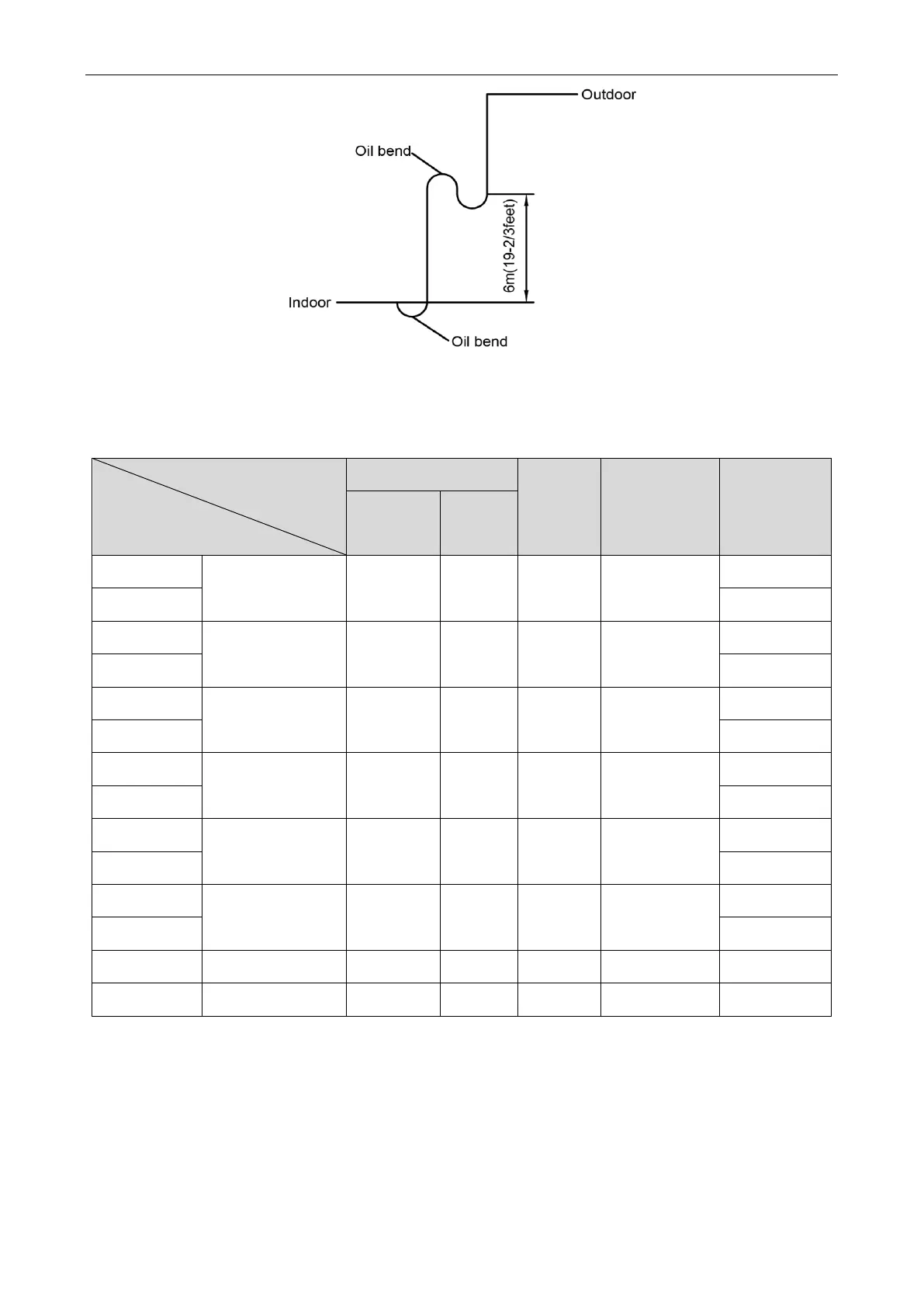

Figure 3-2-5
3.2 Specification of Connection Pipe
Table 3-2-4
Item
Model
Size of Fitting Pipe
mm (inch)
Max. Pipe
Length
m (feet)
Max. Height
Difference
between Indoor
Unit and Outdoor
Unit: m (feet)
Drainage
pipe(Outer
Diameter
×
wall thickness)
mm (inch)
Liquid
Gas
TFH18D3F2I
TUHD18ND3F1O
Φ6 (1/4)
Φ12(1/2)
50(164.0)
15(49.2)
Φ20×1.2
(Φ0.79×0.05)
TFH18D3F3I
Φ26×3
(Φ1.02×0.12)
TFH24D3F2I
TUHD24ND3F1O
Φ9.52(3/8)
Φ16(5/8)
50(164.0)
15(49.2)
Φ20×1.2
(Φ0.79×0.05)
TFH24D3F3I
Φ26×3
(Φ1.02×0.12)
TFH30D3F2I
TUHD30ND3F1O
Φ9.52(3/8)
Φ16(5/8)
50(164.0)
15(49.2)
Φ20×1.2
(Φ0.79×0.05)
TFH30D3F3I
Φ26×3
(Φ1.02×0.12)
TFH36D3F2I
TUHD36ND3F1O
Φ9.52(3/8)
Φ16(5/8)
70(229.7)
15(49.2)
Φ20×1.2
(Φ0.79×0.05)
TFH36D3F3I
Φ26×3
(Φ1.02×0.12)
TFH42D3F2I
TUHD42ND3F1O
Φ9.52(3/8)
Φ16(5/8)
70(229.7)
15(49.2)
Φ20×1.2
(Φ0.79×0.05)
TFH42D3F3I
Φ26×3
(Φ1.02×0.12)
TFH48D3F2I
TUHD48ND3F1O
Φ9.52(3/8)
Φ16(5/8)
70(229.7)
15(49.2)
Φ30×1.5
(Φ1.18×0.06)
TFH48D3F3I
Φ26×3
(Φ1.02×0.12)
TUD36A/B-D(U)
TUHD36ND3F1O
Φ9.52(3/8)
Φ16(5/8)
70(229.7)
15(49.2)
Φ26×3
(Φ1.02×0.12)
TUD48A/B-D(U)
TUHD48ND3F1O
Φ9.52(3/8)
Φ16(5/8)
70(229.7)
15(49.2)
Φ26×3
(Φ1.02×0.12)
