TOSOT DC INVERTER U-MATCH AIR
63
chassis and connect a drainage pipe on the drainage joint. (The installing height of outdoor unit shall be
at least 5cm (2inch) if drainage joint is to be used).
To insert the pipe through the wall, the wall-cross tube must be installed.
The installing dimension shall comply with the installation requirements in these instructions. The
outdoor unit must be fixed at the installing position.
The installation shall be done by specialist technicians.

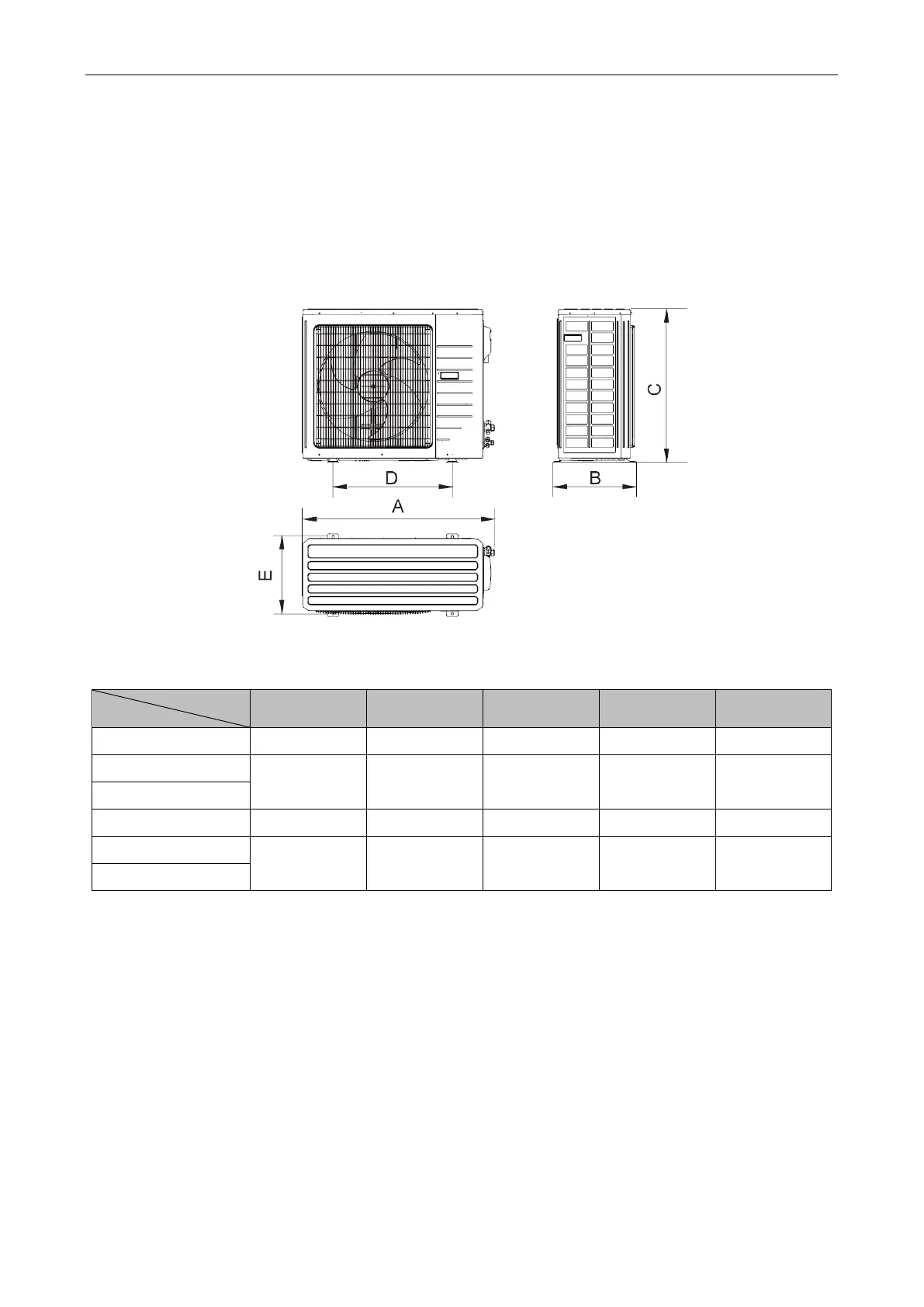

2.4 Dimension Data
Figure 3-2-2
Table 3-2-1 Unit: mm (inch)
Item
Model
A
B
C
D
E
TUHD18ND3F1O
955(37-5/8)
395(15-5/8)
700(27-1/2)
560(22)
360(14-1/8)
TUHD24ND3F1O
980(38-5/8)
425(16-3/4)
790(31-1/8)
610(24)
390(15-1/2)
TUHD30ND3F1O
TUHD36ND3F1O
1105(43-5/8)
440(17-3/8)
1110(43-3/4)
630(24-7/8)
400(15-3/4)
TUHD42ND3F1O
960(37-3/4)
410(16-1/4)
1350(53-1/8)
570(22-1/2)
375(14-3/4)
TUHD48ND3F1O
