Tosot TUHD18ND3F1O User Manual

TOSOT DC INVERTER U-MATCH AIR CONDITIONERS
97

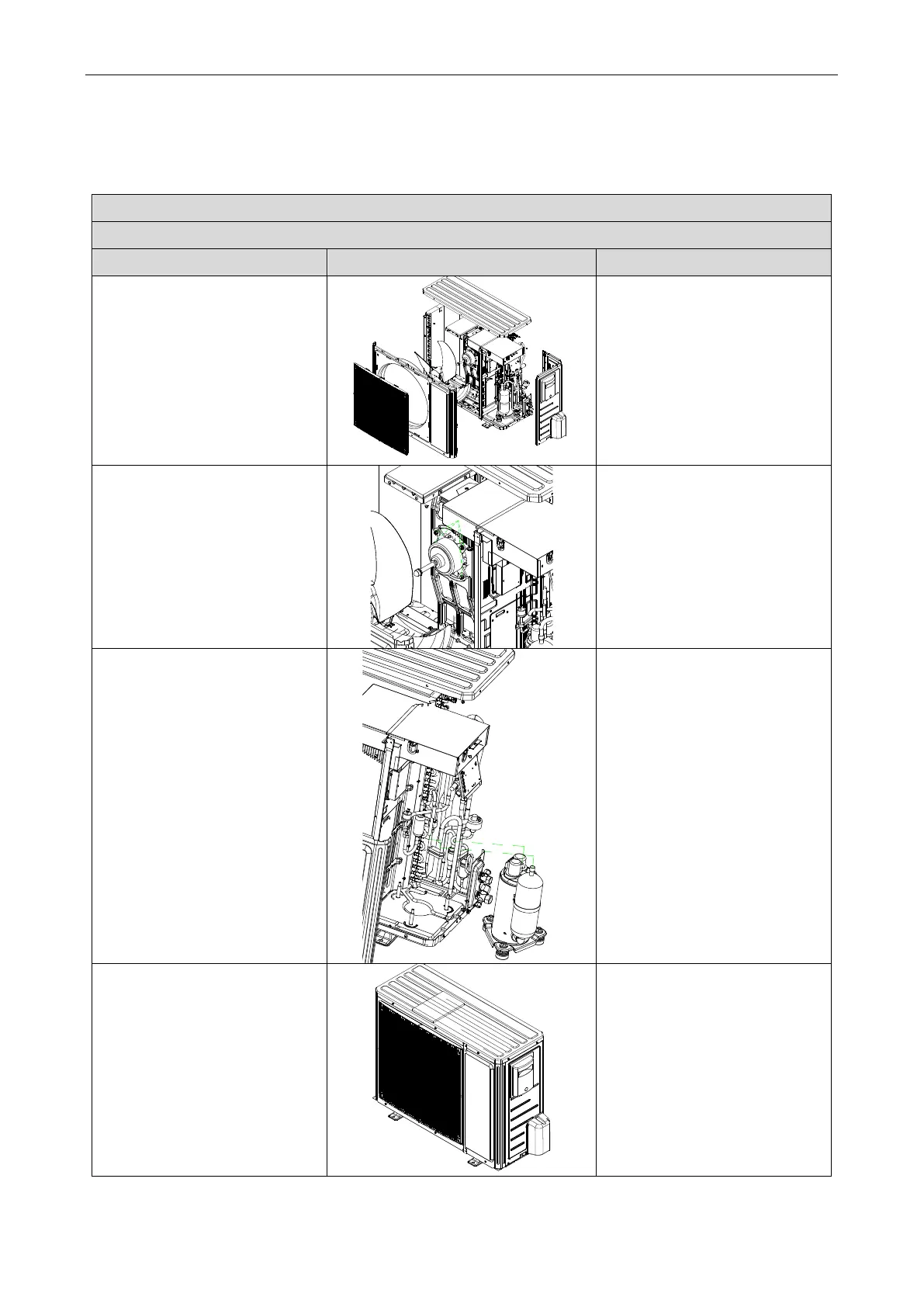

4 DISASSEMBLY AND ASSEMBLY PROCEDURE OF MAIN PARTS
4.1 Outdoor Unit
18k
Disassembly and Assembly of external casing
Remark :
Step
Illustration
Handling Instruction
1. Remove external casing
1..Remove the top cover and handle.
2. Remove the grille, outer case and
right side plate.
2. Remove motor
1. Remove the blade nut and then
remove the blade.
2. Remove the motor from motor
support.
3. Remove compressor
1. Discharge the refrigerant inside the
pipeline and recycle the refrigerant
during discharging.
2. Unsolder the 4-way valve assy from
compressor.
3. Remove the nut fixing compressor.
4. Take away the compressor from
chassis.
4. Assemble unit
Assemble the unit in the reverse
procedures of disassembly.
