Disassembly and Assembly of external casing
Remark :
Step
Illustration

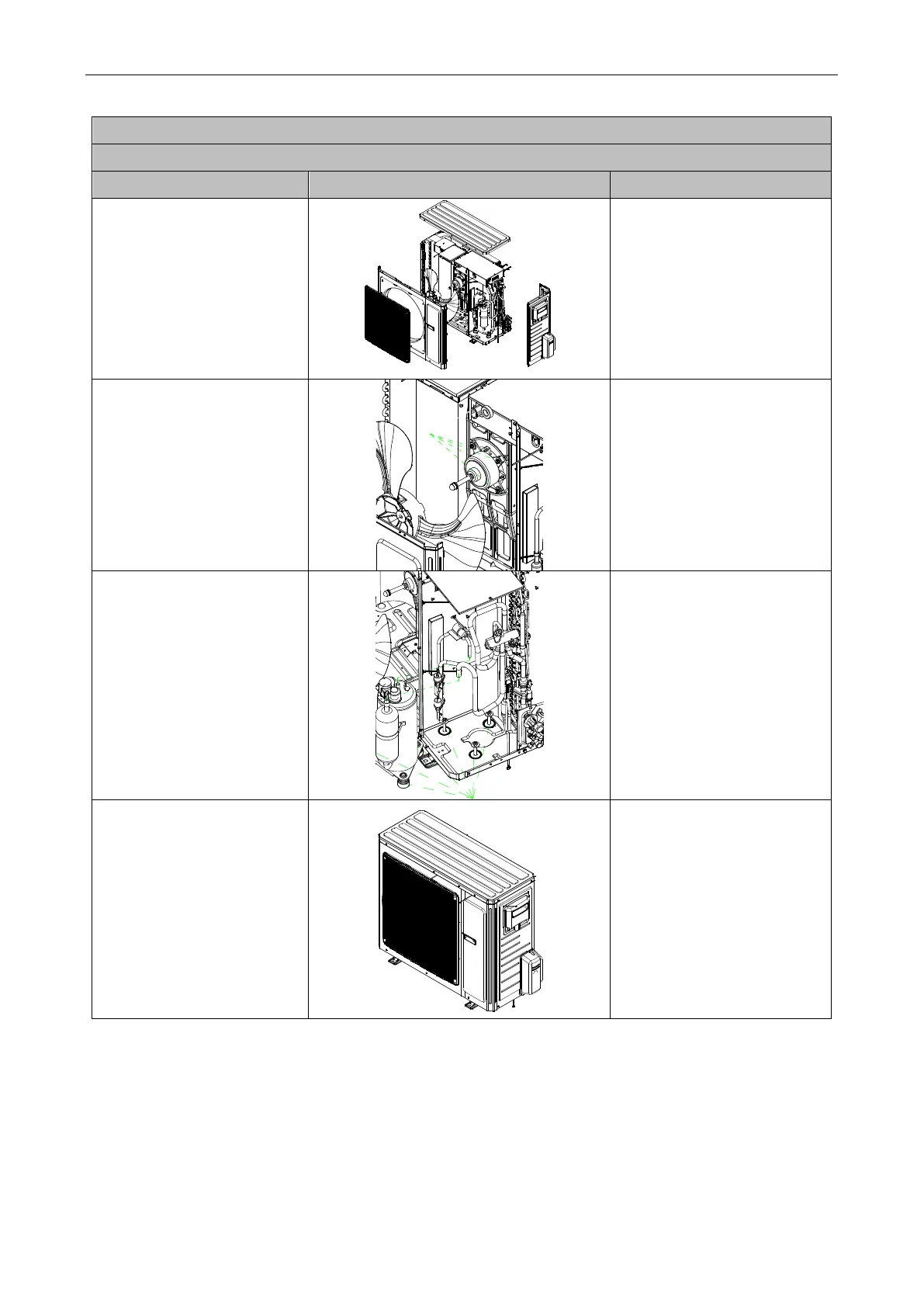

Handling Instruction
1. Remove external casing
1..Remove the top cover and handle.
2. Remove the grille, outer case,
front side plate and right side plate.
2. Remove motor
1..Remove the blade nut and then
remove the blade.
2. Remove the motor from motor
support.
3. Remove compressor
1..Discharge the refrigerant inside
the pipeline and recycle the
refrigerant during discharging.
2. Unsolder the 4-way valve assy
from compressor.
3..Remove the nut fixing compressor.
4..Take away the compressor from
chassis.
4. Assemble unit
Assemble the unit in the reverse
procedures of disassembly.
