Disassembly and Assembly of external casing
Remark :
Step
Illustration

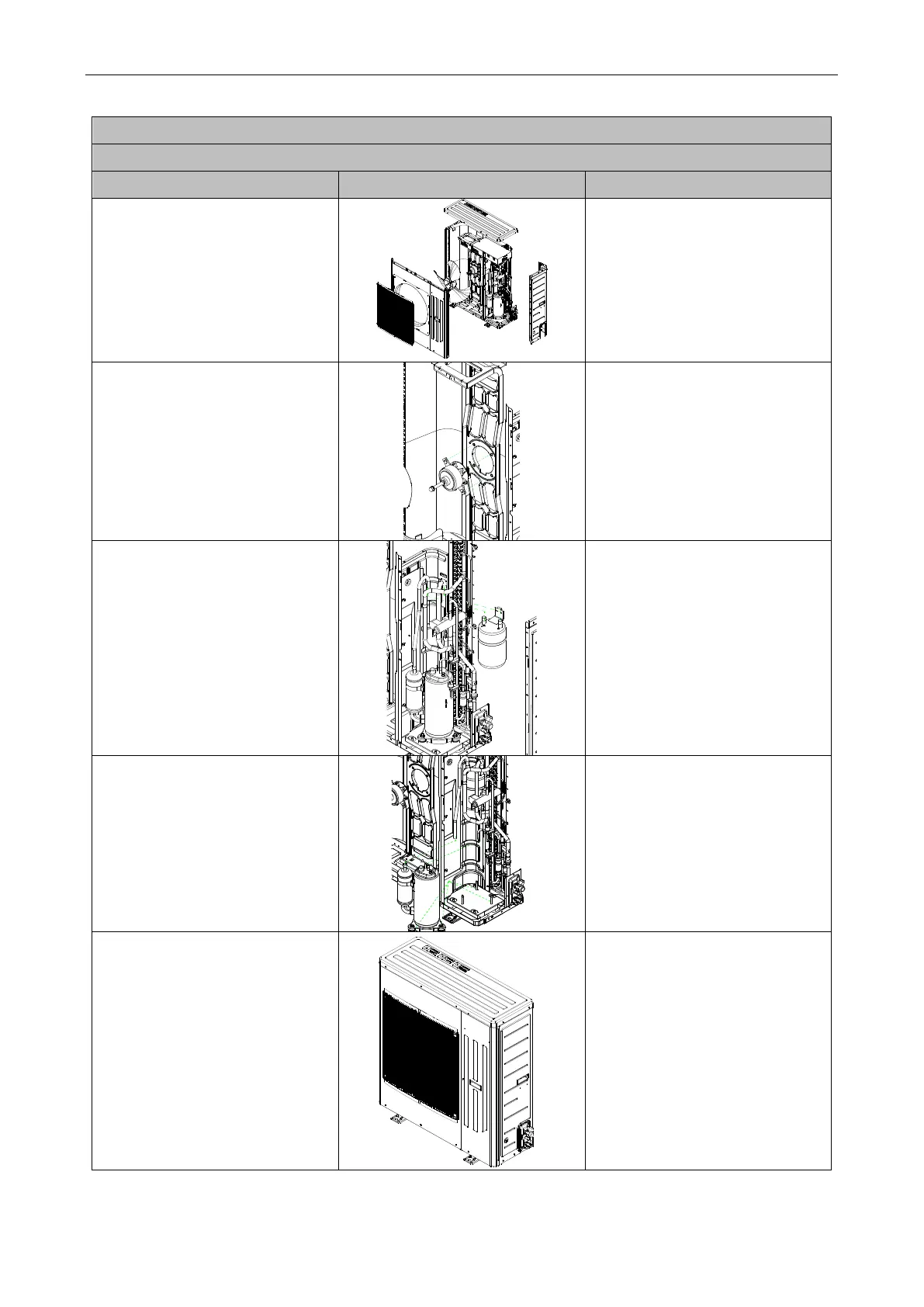

Handling Instruction
1. Remove external casing
1. Remove the top cover and handle.
2. Remove the grille, outer case and right
side plate.
2. Remove motor
1..Remove the blade nut and then
remove the blade.
2..Remove the motor from motor support.
3. Remove gas liquid separator
1. Discharge the refrigerant inside the
pipeline and recycle the refrigerant during
discharging.
2. Unsolder the 4-way valve assy from
gas liquid separator.
3. Remove the gas liquid
separator.
4. Remove compressor
1. Discharge the refrigerant inside the
pipeline and recycle the refrigerant during
discharging.
2. Unsolder the 4-way valve assy from
compressor.
3. Remove the nut fixing compressor.
4. Take away the compressor from
chassis.
5. Assemble unit
Assemble the unit in the reverse
procedures of disassembly.
