Tosot TUHD18ND3F1O User Manual

TOSOT DC INVERTER U-MATCH AIR
60
No.
Name
No.
Name
1
Return Air Inlet (with filter)
4
Indoor unit
2
Canvas Duct
5
Supply Air Duct
3
Return Air Duct
6
Grille
1.2 Installation of Air Handler
1.2.1 Dimension Data
① Install the indoor unit in a location which can withstand a load of at least five times the weight of the main unit and
which will not amplify sound or vibration.
② If the installation location is not strong enough, the indoor unit may fall and cause injuries.
③ If the job is done with the panel frame only, there is a risk that the unit will come loose. Please take care.

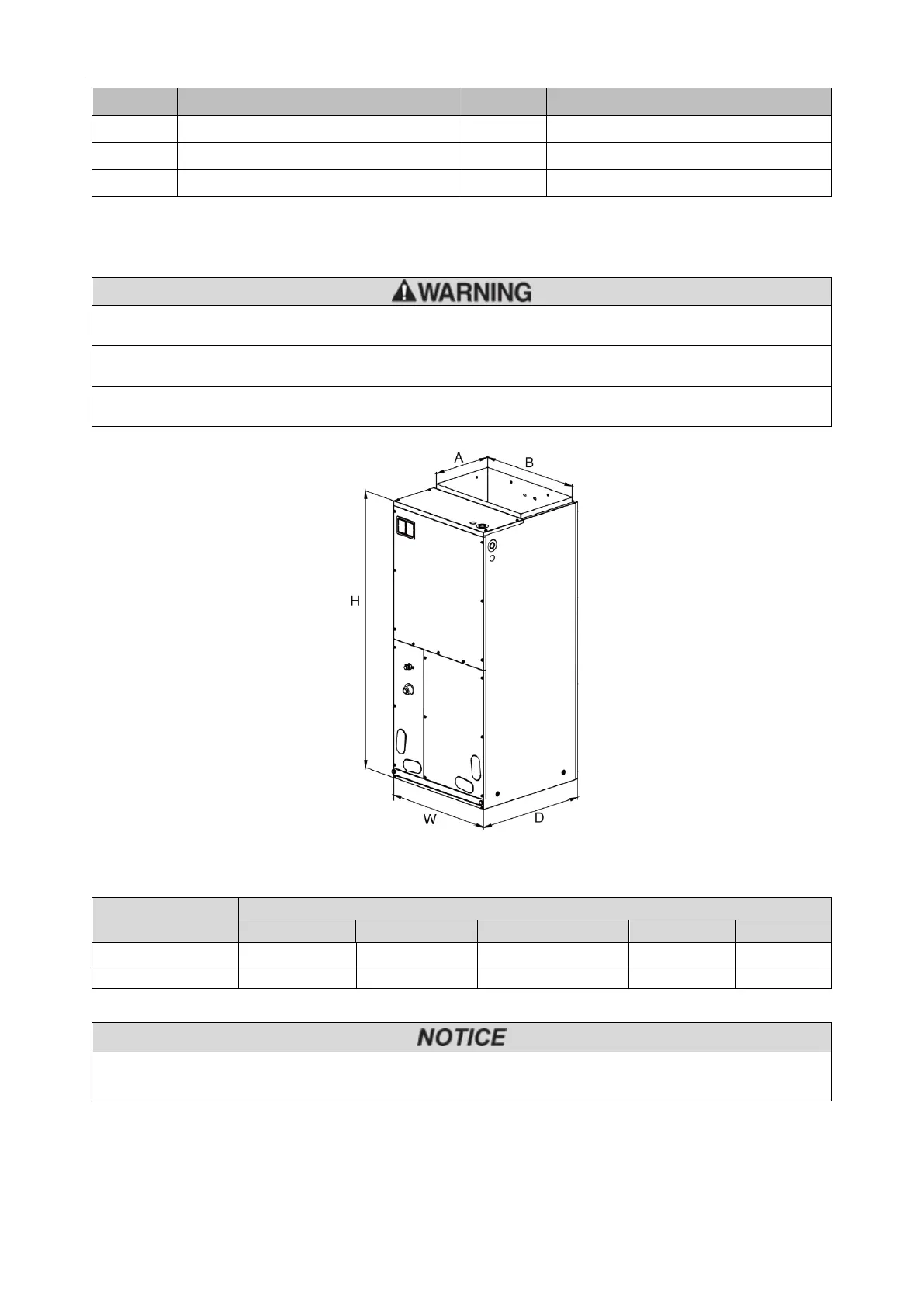

Figure 3-1-23
Unit: mm (inch)
MODEL
DIMENSION
W
D
H
A
B
TUD36A/B-D
(U)
538 (21-1/8)
542(21-3/8)
1224(48-1/4)
296(11-5/8)
508(20)
TUD48A/B-D
(U)
628(24-3/4)
542(21-3/8)
1224(48-1/4)
296(11-5/8)
508(20)
Drilling of ceiling opening and installation of air conditioner must be performed by professionals!
