TOSOT DC INVERTER U-MATCH AIR CONDITIONERS
114

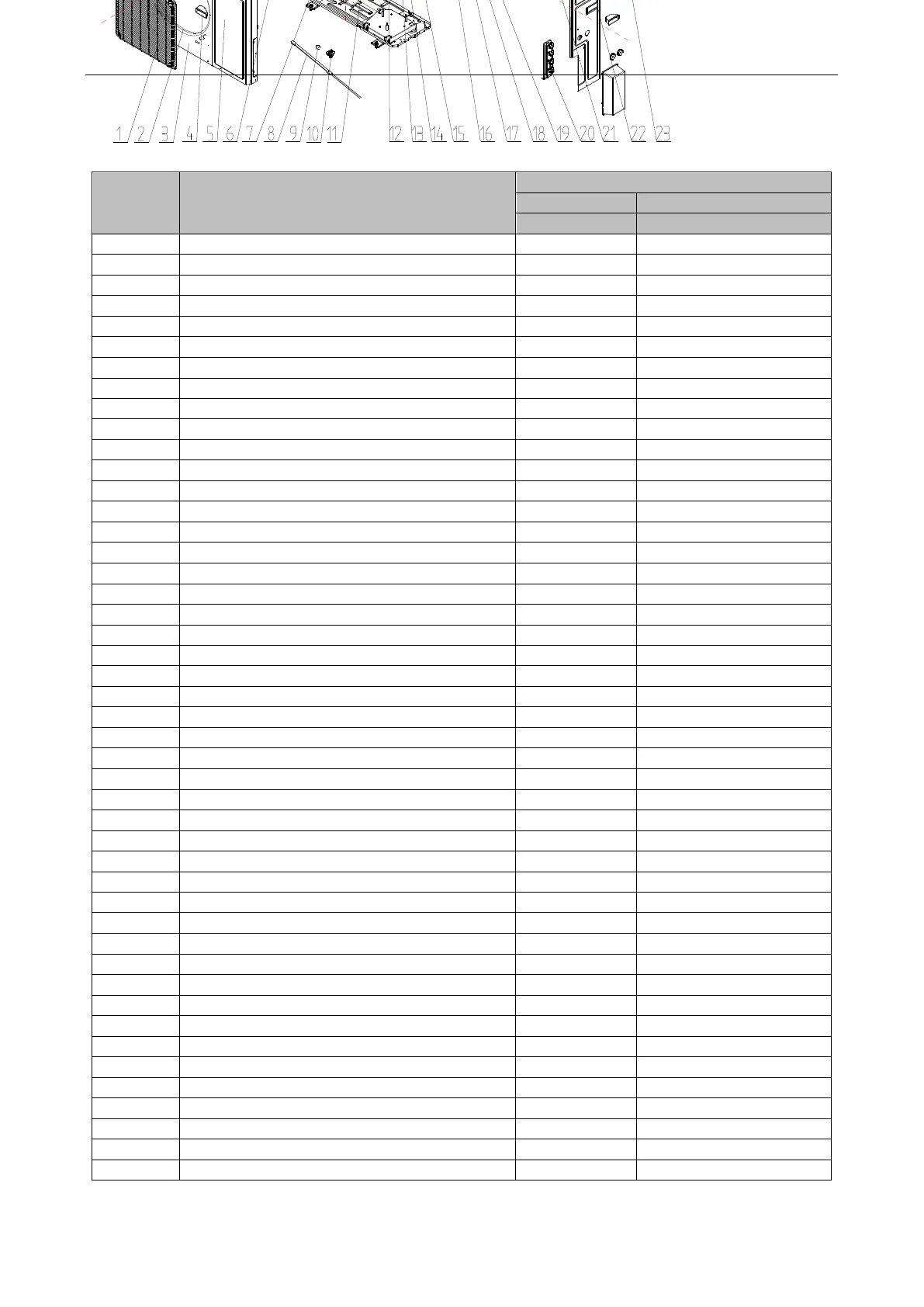

Model: TUHD42ND3F1O /TUHD48ND3F1O Exploded Views and spare parts list:
No.
Name of Part
TUHD42ND3F1O /TUHD48ND3F1O
Product Code
CF090W1020/CF090W1070
Part Code
Quantity
1
Front Grill
01574100009
2
2
Diversion Circle
10474100001
2
3
Cabinet Assy
01514100006
1
4
Handle
26235253
2
5
Front Side Plate
01314100021P
1
6
Axial Flow Fan
10434100003
2
7
Chassis Sub-assy
01195200020P
1
8
electrical heater
765152123
1
9
Drainage hole Cap
06813401
3
10
Drainage Connecter
06123401
1
11
Pressure Protect Switch
46020007
1
12
Gas-liquid Separator Sub-Assy
0722501801
1
13
Compressor
00204100001
1
14
Compressor Gasket
76710247
3
15
Wire Clamp
02145008
1
16
Silencer
07245012
2
17
Strainer
07411100014
1
18
Cut off Valve
07133844
1
19
Pressure Protect Switch
46020003
1
20
Valve Support Sub-Assy
01805200204P
1
21
Cut off Valve
07130209
1
22
Rear Side Plate Sub-Assy
01315200088P
1
23
Temperature Sensor
3900028025G
1
24
Rear Grill
01574100004
1
25
Clapboard
0124520000701
1
26
Bidirection Strainer
07220016
1
27
Strainer
07415210
1
28
Electronic Expansion Valve
07135176
1
29
Electric Expand Valve Fitting
43000344
1
30
Condenser Assy
01125200213
1
31
Supporting Strip
01894100026
1
32
4-way Valve
43000338
1
33
Pressure Protect Switch
4602000902
1
34
Magnet Coil
4300040032
1
35
Terminal Board
420101852
1
36
Terminal Board
42011242
1
37
Main Board
30224000035
1
38
Filter Board
30228000006
1
39
Coping
01264100008P
1
40
Main Board
30228000005
1
41
PFC Inductance
43128000015
1
42
Electric Box Assy
01395200485
1
43
Radiator
49018000052
1
45
Fan Motor
15704115
1
46
Fan Motor
1570411501
1
47
Left Side Plate
01314100013P
1
