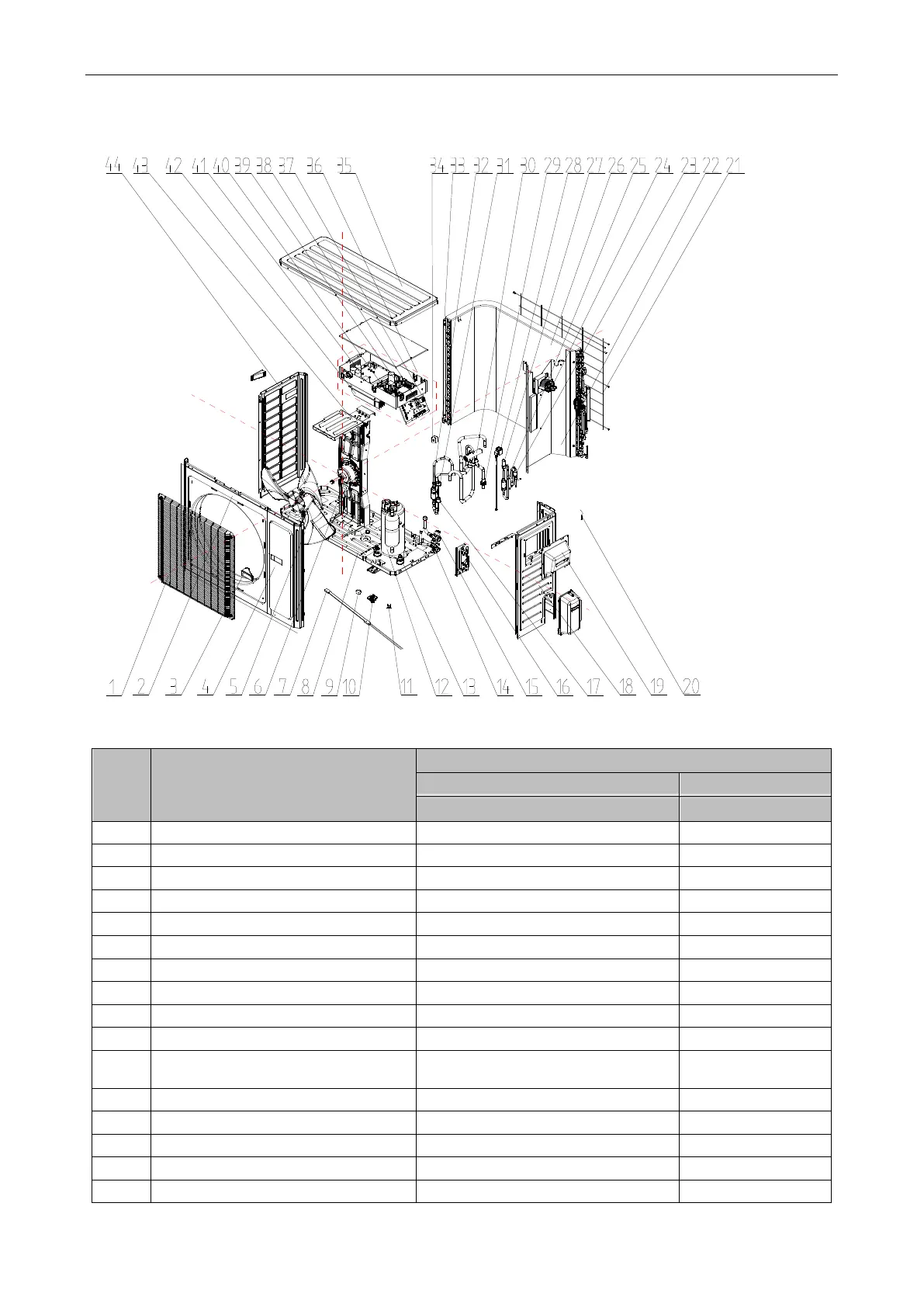

Model: TUHD24ND3F1O Exploded Views and spare parts list:
No.
Name of Part
TUHD24ND3F1O
Product Code
CF090W1060
Part Code
Quantity
1
Front Grill
01473050
1
2
Cabinet
01435004P
1
3
Left Handle
26235401
2
4
Front Side Plate
01305086P
1
5
Axial Flow Fan
10335014
1
6
Fan Motor
15702802
1
7
Electrical Heater(Compressor)
7651873209
1
8
Chassis Sub-assy
0119520001301P
1
9
Drainage hole Cap
06813401
3
10
Drainage Connecter
06123401
1
11
Compressor Overload
Protector(External)
00180030 / 00183051 / 00183032 /
00183031
1
12
Compressor and Fittings
0010505701
1
13
Compressor Gasket
76713066
3
14
Valve
07100005
1
15
Cut off Valve
07133157
1
16
Valve Support Sub-Assy
0171501201P
1
