TOSOT DC INVERTER U-MATCH AIR CONDITIONERS
110

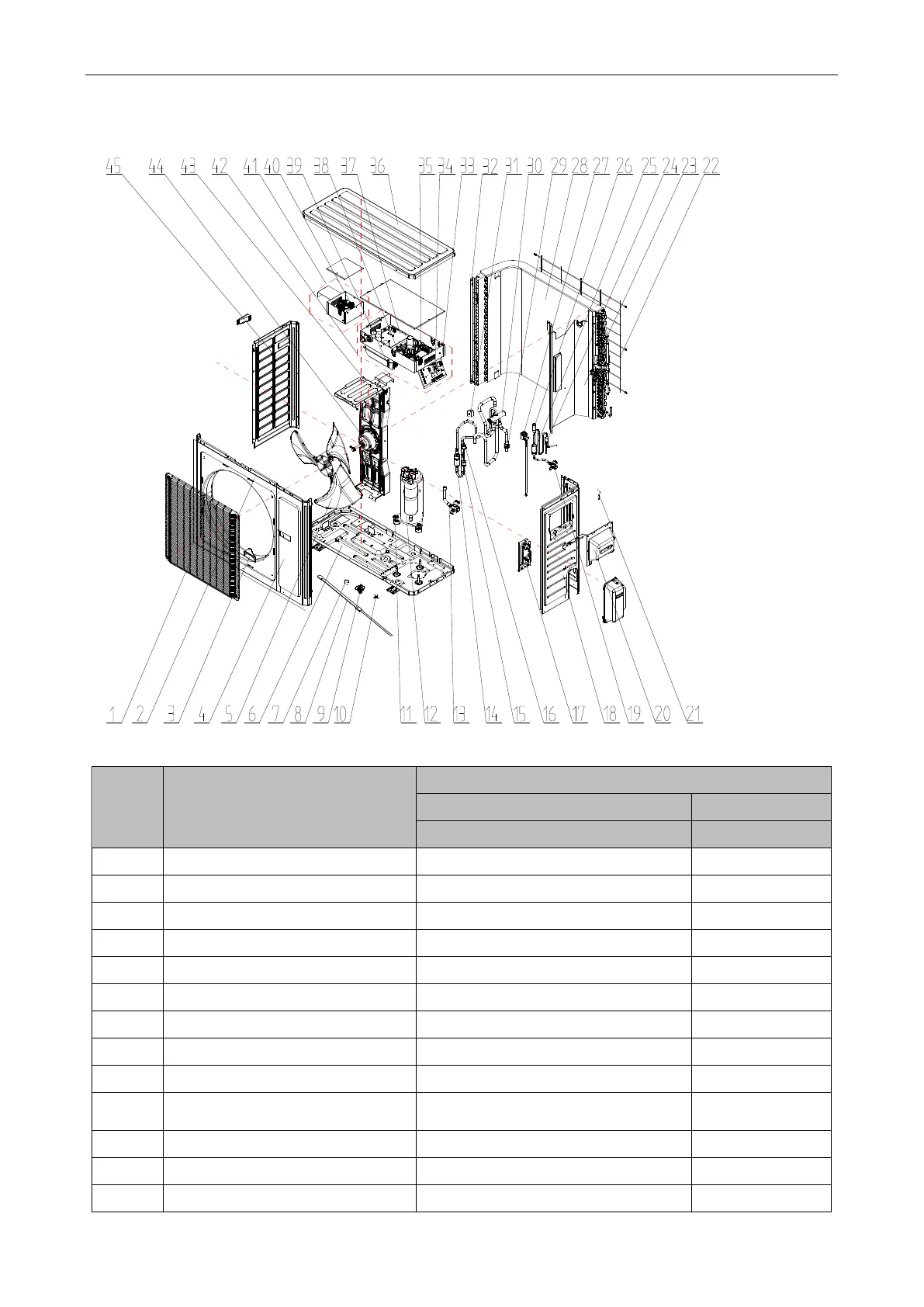

Model: TUHD30ND3F1O Exploded Views and spare parts list:
No.
Name of Part
TUHD30ND3F1O
Product Code
CF090W1050
Part Code
Quantity
1
Front Grill
01473050
1
2
Cabinet
01435004P
1
3
Left Handle
26235401
2
4
Front Side Plate
01305086P
1
5
Axial Flow Fan
10335014
1
6
Chassis Sub-assy
01195200013P
1
7
Drainage hole Cap
06813401
3
8
Electrical Heater(Compressor)
7651873209
1
9
Drainage Connecter
06123401
1
10
Compressor Overload
Protector(External)
00180030 / 00183051 / 00183032 /
00183031
1
11
Compressor Gasket
76713066
3
12
Compressor and Fittings
0010505701
1
13
Cut off Valve
07133157
1
