TOSOT DC INVERTER U-MATCH AIR
54
For the units: 36~48k
A
B
C
D
E
F
G
H
I
J

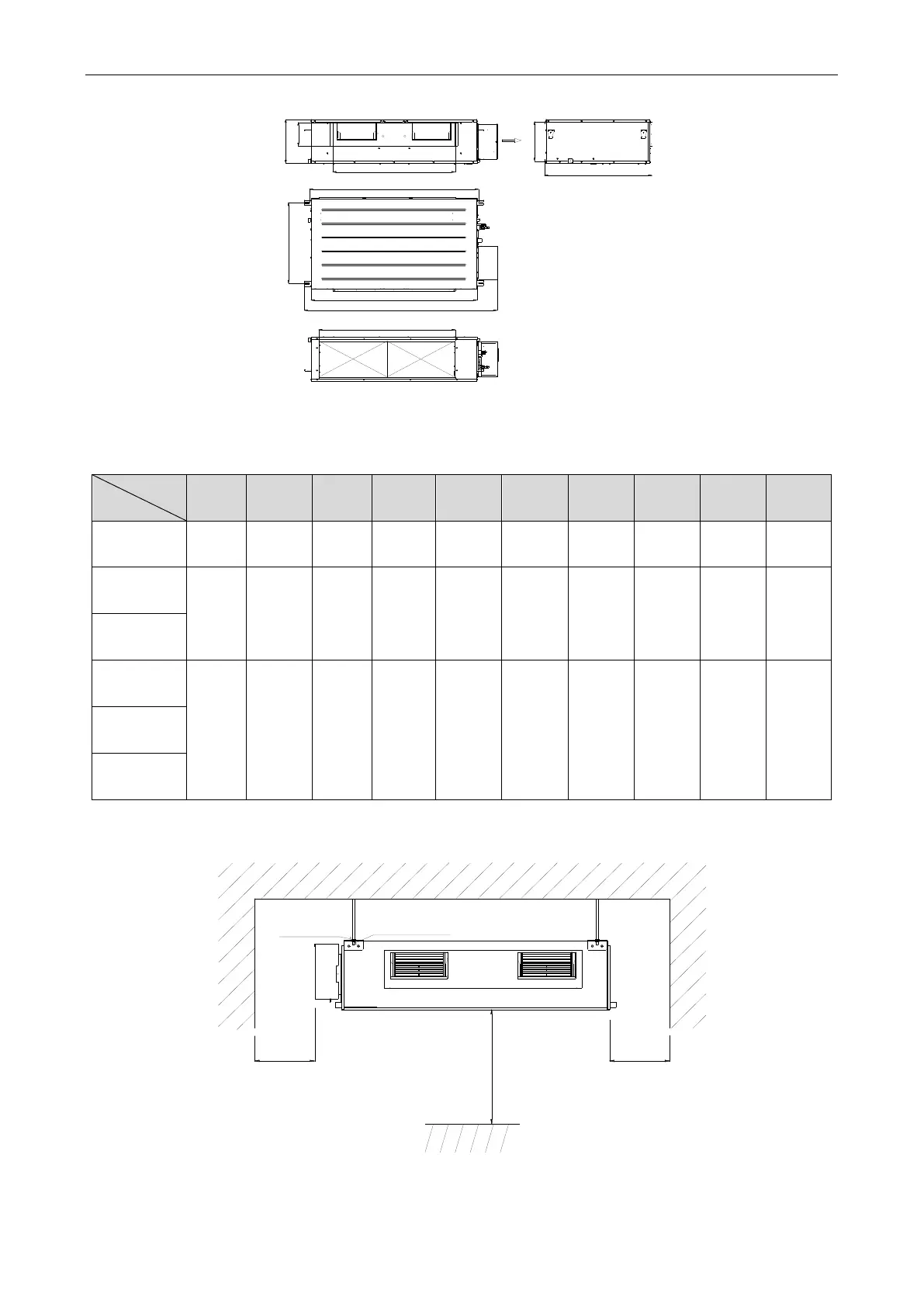

Figure 3-1-7
Table 3-1-1
Unit: mm (inch)
Item
Model
A
B
C
D
E
F
G
H
I
J
TFH18D3F2I
TFH18D3F3I
1100
(43-3/8)
515
(20-3/8)
820
(32-1/4)
1160
(45-5/8)
1280
(50-3/8)
560
(22)
1000
(39-1/2)
160
(6-1/4)
235
(9-1/4)
270
(10-1/2)
TFH24D3F2I
TFH24D3F3I
1010
(39-3/4)
750
(29-1/2)
820
(32-1/4)
1115
(43-7/8)
1225
(48-1/4)
775
(30-1/2)
980
(38-5/8)
160
(6-1/4)
230
(9)
290
(11-3/8)
TFH30D3F2I
TFH30D3F3I
TFH36D3F2I
TFH36D3F3I
1175
(46-1/4)
645
(25-3/8)
850
(33-1/2)
1150
(45-1/4)
1340
(85-1/4)
750
(29-1/2)
980
(38-5/8)
19
5(7-5/8)
230
(9)
350
(13-3/4)
TFH42D3F2I
TFH42D3F3I
TFH48D3F2I
TFH48D3F3I
1.1.5 Installation Clearance Data
＞2500mm (98-3/8inch)
Nut with
Washer
Nut Spring
Washer
＞250mm
(9-7/8inch)
＞250mm
(9-7/8inch)
Figure 3-1-7
WARNING:
The height of installation for the indoor unit should be 2.5m (8-1/5feet) above.
